9
Motor
Assembly
Upper LED Plate Assembly
Upper LED Plate Assembly
Figure 4
Figure 5
Figure 3
Figure 1
Light Kit
Assembly
4. Securely attach the 9-pin switch cup connector to
the wiring harness socket within the upper LED plate
assembly. (Figure 4)
5. Assemble the upper LED plate assembly to the light
kit assembly using the two key slots in the
upper LED
plate assembly. Replace the third screw and securely
tighten all three screws. (Figure 5)
Motor
Motor
Light Kit
Assembly

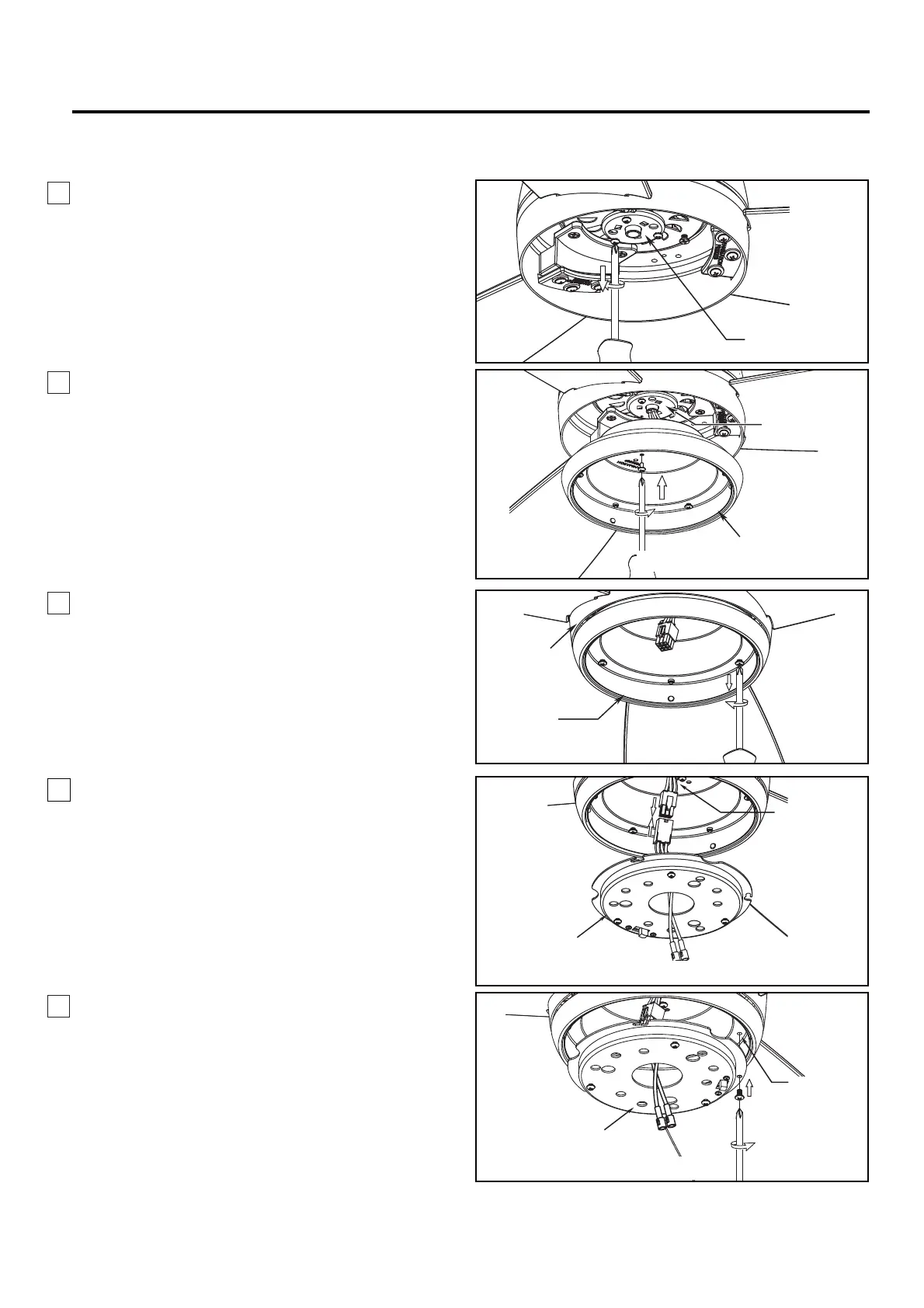

How to Assemble Your Light Kit
1. Remove one of the three screws in the support
bracket at the bottom of the motor assembly and
retain the screw for later. Slightly loosen the
remaining two screws. (Figure 1)
3. Remove one of the three screws in the light kit
assembly and retain the screw for Step 5. Slightly
loosen the remaining two screws. (Figure 3)
2. Assemble the light kit assembly to the support
bracket using the two key slots in the light kit assembly.
Replace the third screw and securely tighten all three
screws. (Figure 2)
Motor
Light Kit Assembly
Figure 2
To Next Page
