6

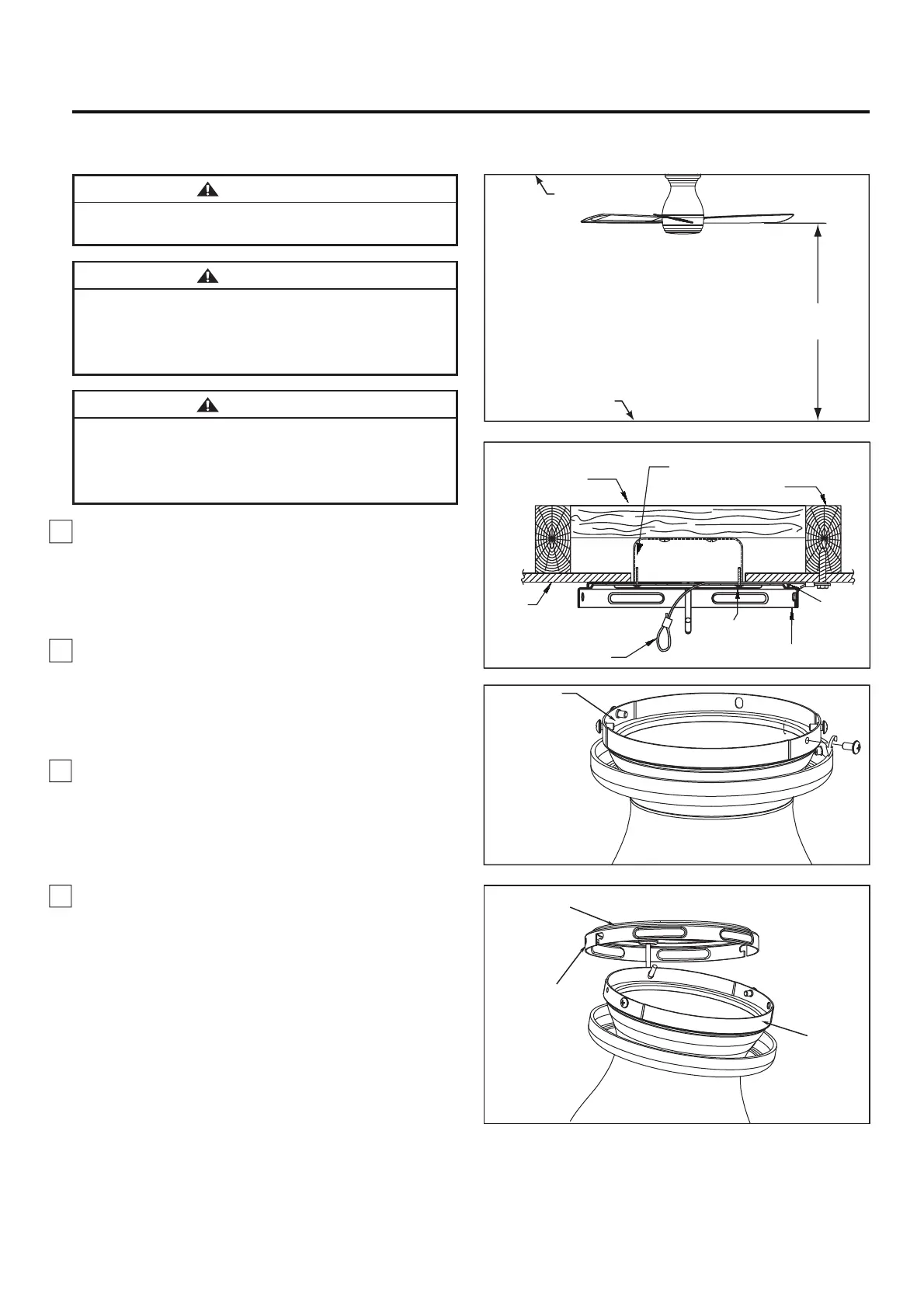

How to Hang and Wire Your Ceiling Fan
WARNING
It is critical that the outlet box and the screws are
securely anchored to the building structure and capable
of withstanding a load of at least 35 lbs. Failure to verify
that the screws are properly installed could result in the
fan falling. (Figure 2)
Figure 1
WARNING
To avoid possible electrical shock, be sure electricity is
turned off at the main fuse box before hanging.
NOTE: If you are not sure if the outlet box is grounded,
contact a licensed electrician for advice, as it must be
grounded for safe operation.
WARNING
The fan must be hung with at least 7´ of clearance from
floor to blades. (Figure 1)
Floor
Ceiling
No
less than
7 ft
1. Using the /
3
8
“ x 2”
lag bolt and flat washer, attach
safety cable to ceiling joist or wood structural member.
The lag bolt will pass through the flat washer, safety
cable loop, and into the building structure (Figure 2). You
will first drill a ¼
“ pilot hole into the building structure to
prevent splitting or cracking.
2. The ceiling support cable need to through the center
hole of ceiling bracket when mounting. Using the two
#8-32 screws and washers securely attach the ceiling
bracket gasket and ceiling bracket to ceiling junction box
as shown. (Figure 2)
4. Hang the Motor Assembly as shown. (Figure 4)
Figure 4
Ceiling Bracket
Assembly
Motor
Assembly
NOTE: Supply wires
omitted for clarity
Ceiling Bracket Gasket
Ceiling
Bracket
Gasket
Figure 2
W
ood Member
(
2 “x 4”
Approx.)
Ceiling Joist
Ceiling
Junction
Box Screw(2)
Junction Box
Ceiling
Support
Cable
Ceiling Bracket
Figure 3
Motor
Assembly
NOTE: Supply wires
omitted for clarity
3. Remove the two screws from the motor assembly,
retain the screws for later and loosen the remaining
screws. (Figure 3)
