Fanimation HUGH FPS8332B Series User Manual

How to Assemble Your Light Kit
10
Motor
Assembly
Upper LED Plate
Assembly
Upper LED Plate
Assembly
Light Kit
Assembly
Motor
Motor
Light Kit
Assembly
Motor
Light Kit Assembly

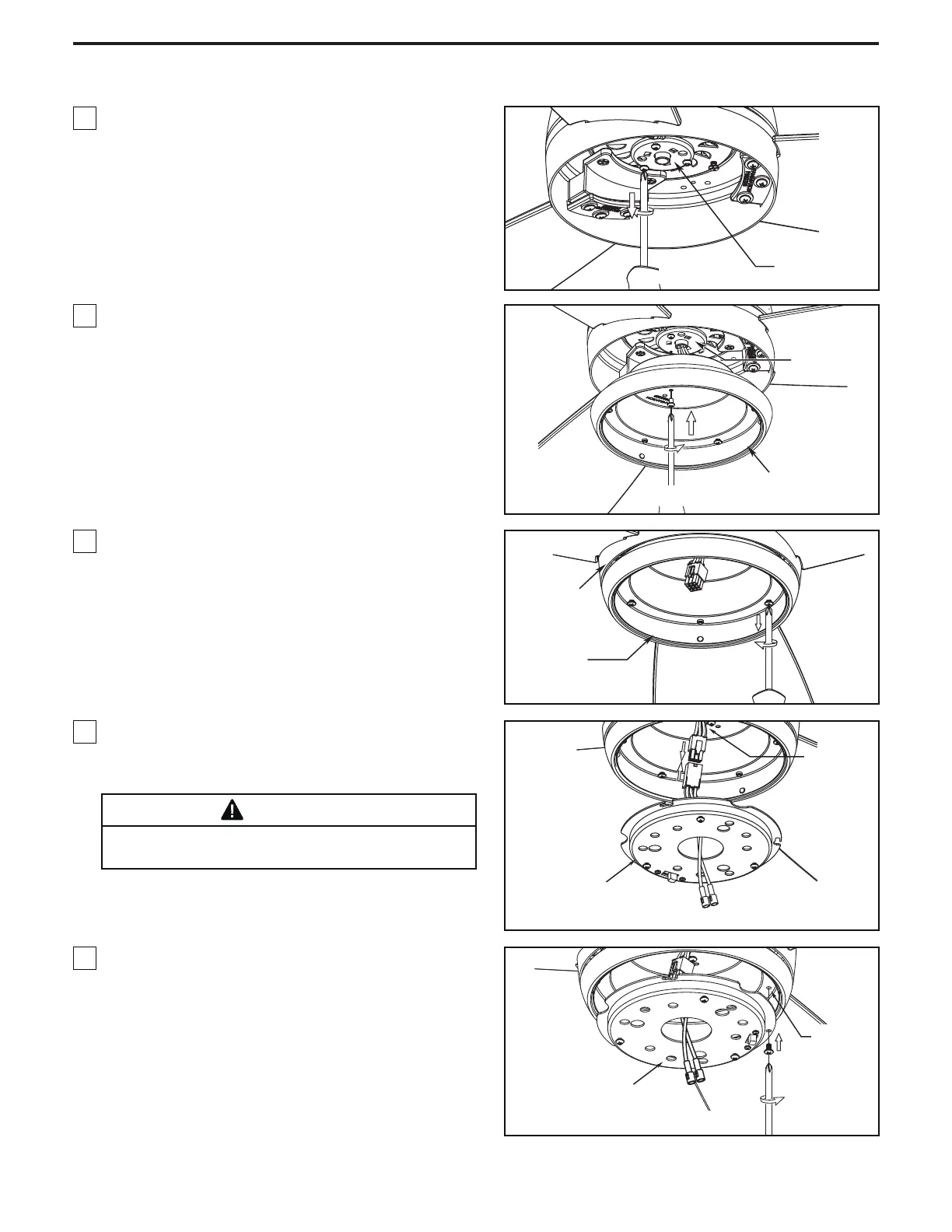

1. Remove one of the three screws in the support
bracket at the bottom of the motor assembly and
retain the screw for later. Slightly loosen the remaining
two screws. (Figure 1)
2. Assemble the light kit assembly to the support
bracket using the two key slots in the light kit
assembly. Replace the third screw and securely
tighten all three screws. (Figure 2)
3. Remove one of the three screws in the light kit
assembly and retain the screw for Step 5. Slightly
loosen the remaining two screws. (Figure 3)
4. Securely attach the 9-pin switch cup connector to
the wiring harness socket within the upper LED plate
assembly. (Figure 4)
5. Assemble the upper LED plate assembly to the light
kit assembly using the two key slots in the upper LED
plate assembly. Replace the third screw and securely
tighten all three screws. (Figure 5)
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
WARNING
The color label on these two connectors must
correspond to each other.
