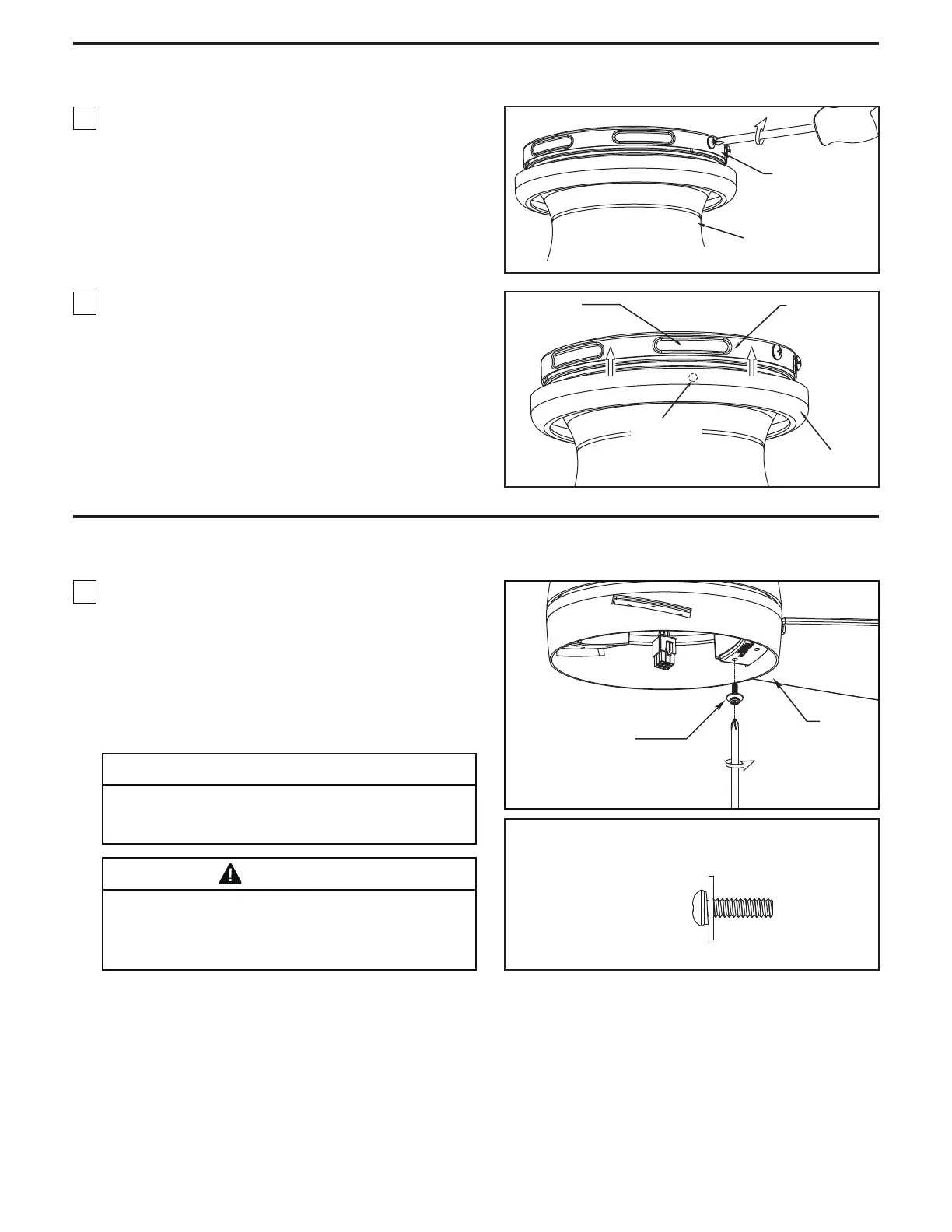

How to Assemble Your Ceiling Fan
9
Ceiling Bracket
Assembly
Motor Assembly
Ceiling Bracket
Assembly
Dimpled
Groove
Canopy Trim
Ring
Mounting
Tabs(4)
1. Assemble the motor assembly to ceiling bracket
using the previously removed screws and securely
tighten all screws. (Figure 1)
1. Slide blades through slots in motor housing and
attach to the motor hub using the #8-32 pan head
screws. Make sure the screws securing the blades
to the motor hub are tight and are properly seated.
(Figure 1)
2. Push the canopy trim ring up to conceal the screws,
such that the mounting tabs seat into the dimpled
grooves in the ceiling bracket midway between the
screws. (Figure 2)
Figure 1
Figure 2
How to Assemble Your Ceiling Fan Blades
Blade
Figure 1
HARDWARE USED:
x 9
Do not connect fan blades until the fan is completely
installed. Installing the fan with blades assembled may
result in damage to the fan blades.
WARNING
To reduce the risk of personal injury, do not bend the
blades when installing, balancing or cleaning the fan.
Do not insert foreign objects in between the rotating
blades.
INSTALLATION NOTE
NOTE: Periodically check blade hardware and
resecure if necessary.
#8-32 Pan Head
Screws
(3 each per blade)
#8-32 Pan Head
Screws
To Next Page
