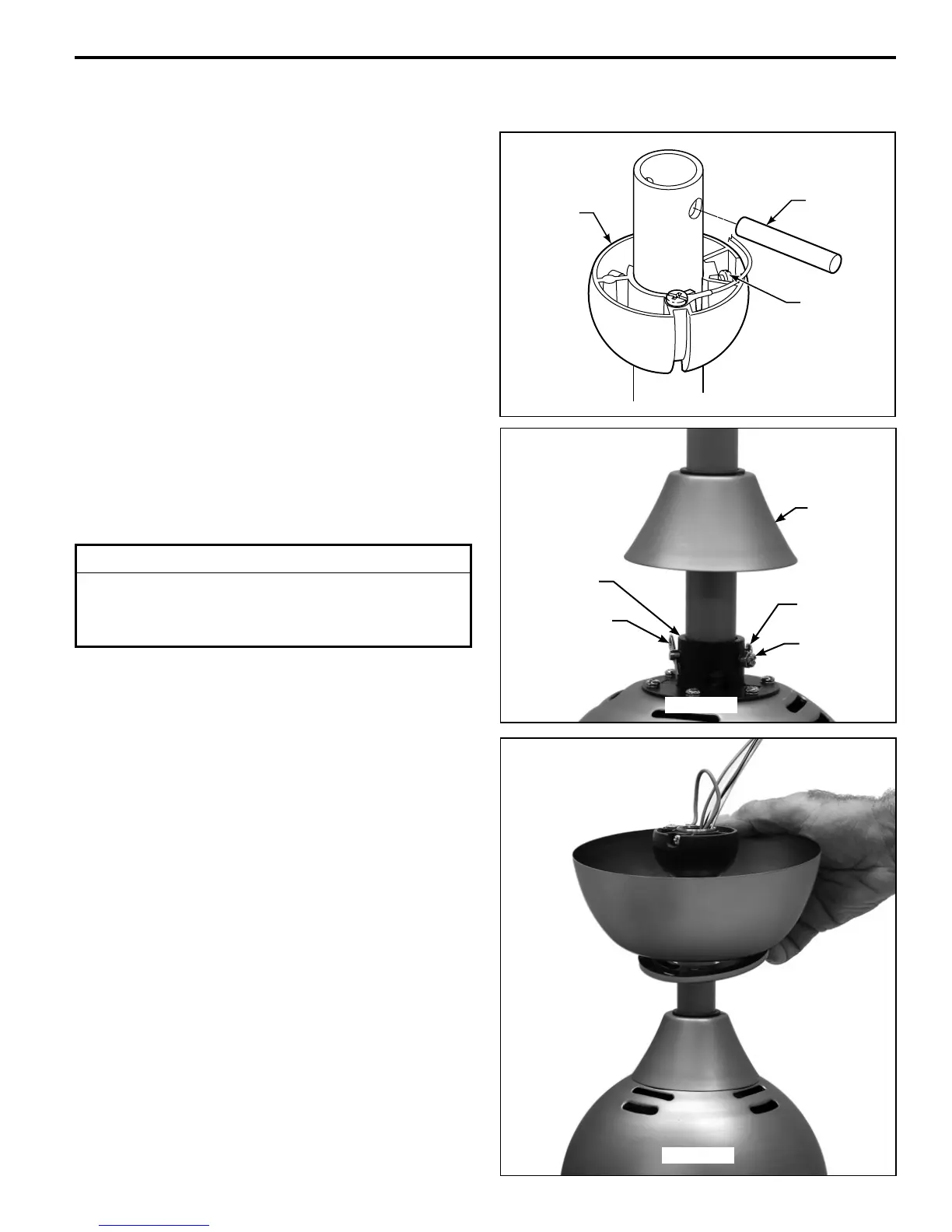

How to Assemble Your Ceiling Fan
Pin
Setscrew
Hanger
Ball
Figure 1
1. Remove the Hanger Ball by loosening the setscrew
in the Hanger Ball until the ball falls freely down the
Downrod. (Figure 1) Remove the Pin from the Downrod,
then remove the Hanger Ball. Retain the Pin and Hanger
Ball for reinstallation in Step 5.
2. The fan comes with blue, black and white 80˝ wires.
Separate & untwist the three wires and safety cable. Route
the wires through the downrod.
NOTE: You will be using either the 6˝ downrod supplied with
your fan or an optional downrod purchased separately.
3. Loosen the two setscrews in the Downrod Support. Align
the Clevis Pin holes in the Downrod with the holes in the
Downrod Support. Install the Clevis Pin and secure with
the Hairpin Clip. (Figure 3) Be sure to push the straight
leg of the hairpin clip through the hole near the end of the
clevis pin until the curved portion of the hairpin clip snaps
around the clevis pin. The hairpin clip must be properly
installed to prevent the clevis pin from working loose. Pull
on the Downrod to make sure the clevis pin is properly
installed.
4. Route wires through Motor Coupling Cover, Canopy
(with Canopy Screw Cover) on fan shown with open side
facing up. (Figure 3)
5. Reinstall the Hanger Ball (Figure 1) on the Downrod
as follows. Route the three 80˝ wires and cable through
the Hanger Ball. Position the Pin through the two holes
in the Downrod and align the Hanger Ball so the Pin is
captured in the groove in the top of the Hanger Ball. Pull
the Hanger Ball up tight against the pin. Securely tighten
the setscrew in the Hanger Ball. A loose setscrew
could create fan wobble.
6. While pulling up on the hanger ball, securely tighten the
two setscrews with nuts in the downrod support. Slide the
Motor Coupling Cover down on top of the motor housing.
(Figures 2 & 3)
7. Before installing fan, measure up approximately 6-9
inches above top of Downrod/Hanger Ball Assembly. Cut
off excess wire and strip back insulation ½˝ from end of
wire.
8. All set screws must be checked and retightened where
necessary before installation.
9. You have now completed the upper assembly of your
new ceiling fan. You can now proceed with the hanging
and the electrical wiring of your fan.
Hairpin Clip
Motor
Coupling
Cover
Figure 2
Figure 3
Clevis Pin
Downrod
Support
▲
WARNING
It is critical that the clevis pin in the downrod support
is properly installed and the setscrews are securely
tightened. Failure to verify that the pin and setscrews
are properly installed could result in the fan falling.
Setscrew (2)
5
