How to Wire Your Ceiling Fan
Main Fuse Box
Hanger Bracket
Receiver
NOTE: Supply wires
omitted for clarity.
Figure 2
Figure 3
NOTE: The remote unit has 32 different code
combinations. To prevent possible interference from
or to other remote units, simply change the
combination code in the remote and receiver.
NOTE: If you are not sure if the outlet box is grounded,
contact a licensed electrician for advice, as it must be
grounded for safe operation.
CAUTION: INCORRECT WIRE CONNECTION WILL
DAMAGE THIS RECEIVER.

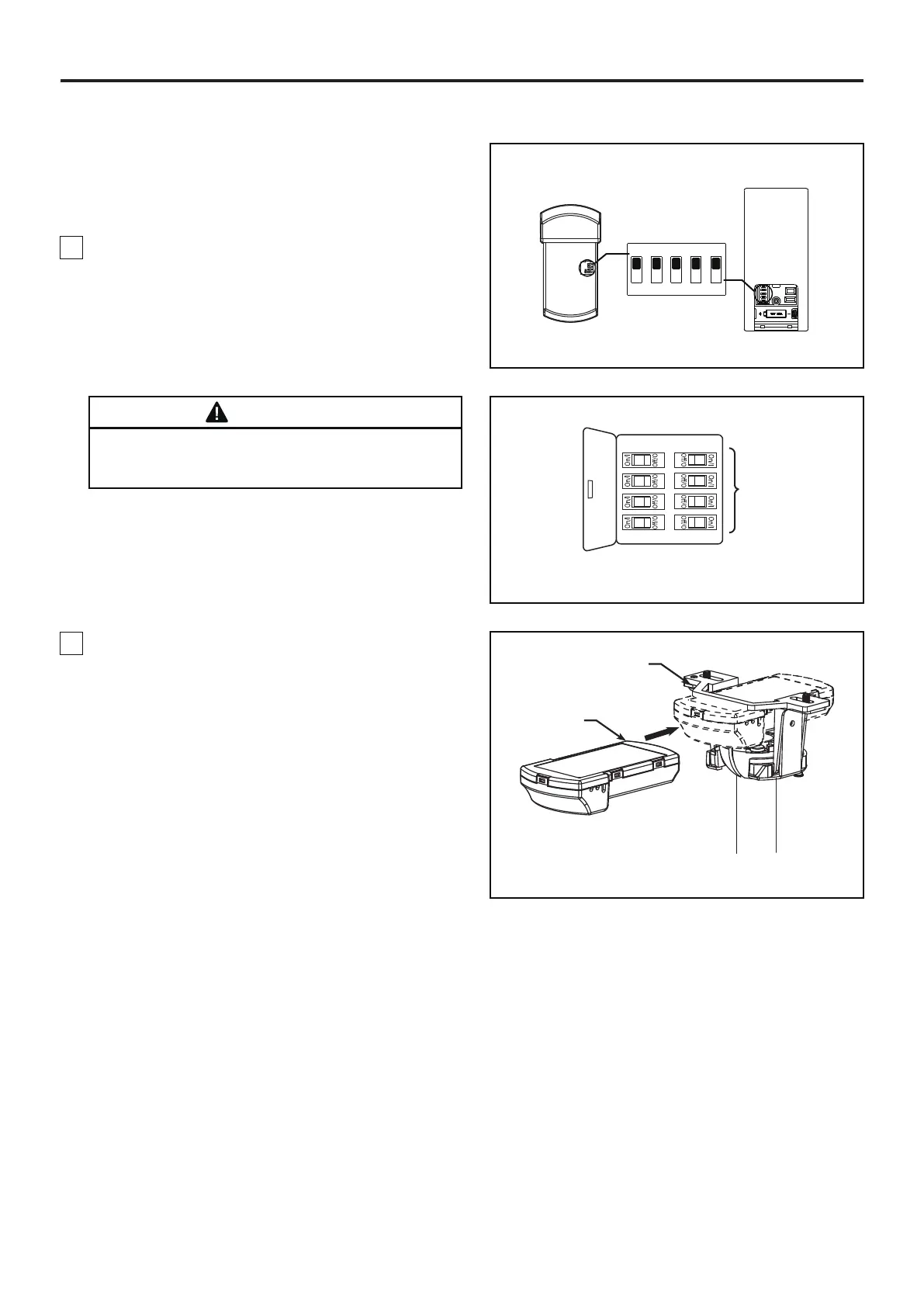

1. To set the code on receiver unit, slide dip switches
to the same positions as set on the remote. (Figure 1)
NOTE: Factory setting is all up. Do not use this
position.
2. Slide the receiver into the hanger bracket before
wiring as shown in figure 3.
WARNING
To avoid possible electrical shock, be sure electricity
is turned off at the main fuse box before wiring.
(Figure 2)
Figure 1
Dip Switch
Receiver
Remote Control
ON DIP
1 2 3 4 5
To Next Page
