How to Install Your Canopy Housing
Ceiling Canopy
Canopy Screw
Cover
Motor Housing
Assembly

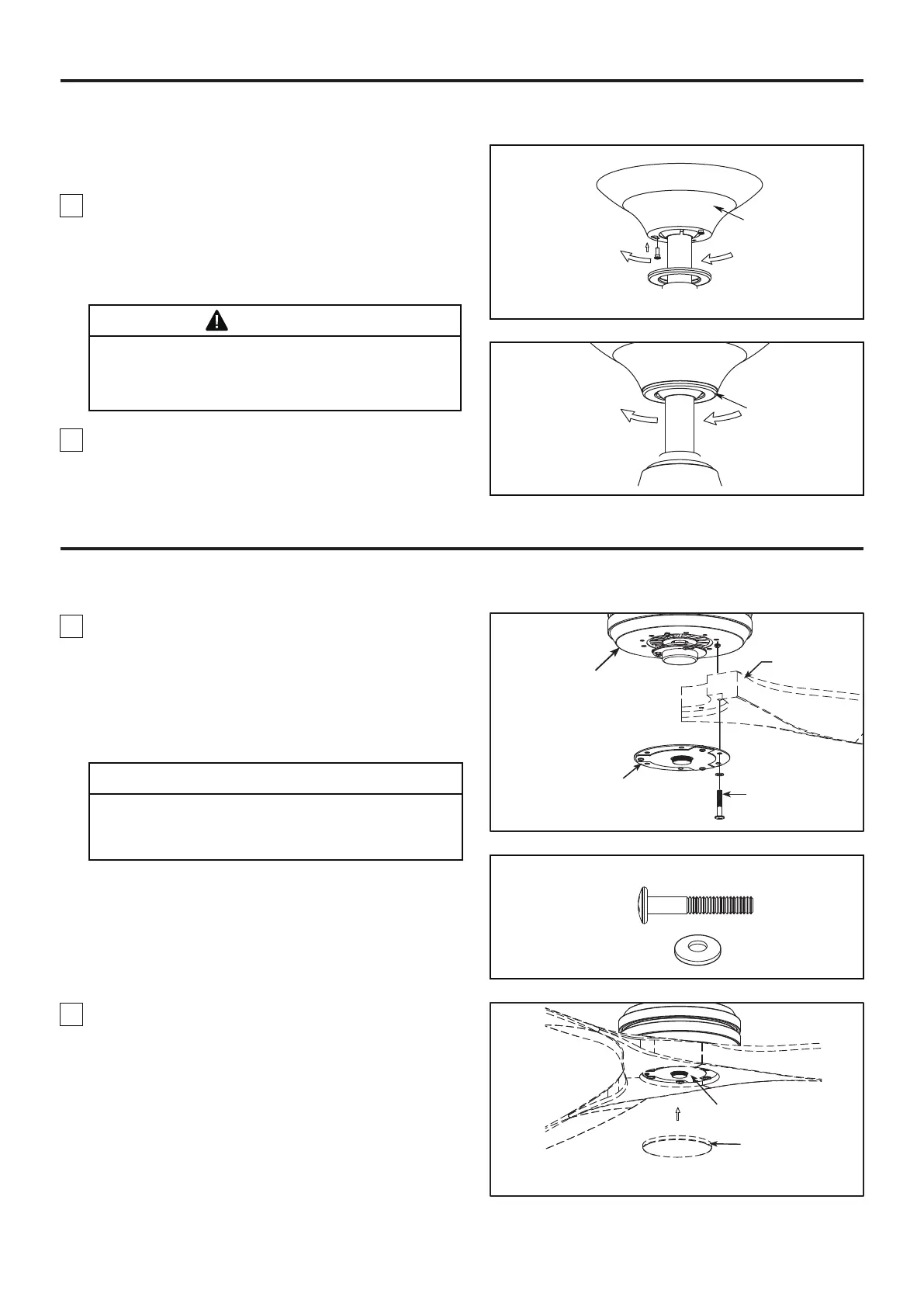

1. Secure the three blades using the 1/4˝-20 screws
with flat washers and blade plate assembly through
the holes located on the bottom of the motor housing
assembly. (Figure 1)
NOTE: You will find the fan blade set packed in its
own carton and hardware bag in the fan box.
2. Position the trim cover onto the blade plate
assembly bottom. (Figure 2)
NOTE: Trim cover is not included with fan.
Figure 2
Figure 1
Figure 2
Figure 1
1/4˝-20
Screw and
Flat Washer
(2 each per blade)
Blade Plate
Assembly
Blade
(not included)
Blade Plate Assembly
Trim Cover
(not included)
How to Assemble Your Ceiling Fan Blades
1/4˝-20
Screws
X 6
Flat Washers
X 6
HARDWARE USED:
CAUTION
Do not connect fan blades until the fan is completely
installed. Installing the fan with blades assembled
may result in damage to the fan blades.
NOTE: This step is applicable after the neccessary
wiring is completed.
1. Assemble canopy by rotating key slot in canopy
over shoulder screw in hanger bracket, taking care not
to pinch the wires. Tighten shoulder screw. Fully
assemble and tighten second shoulder screw that was
previously removed. (Figure 1)
2. Securely attach and tighten the canopy screw cover
over the shoulder screws in the hanger bracket
utilizing the key slot twist-lock feature. (Figure 2)
WARNING
To avoid possible fire or shock, make sure that the
electrical wires are completely inside the canopy
housing and not pinched between the housing and the
ceiling.
