How to Assemble Your Ceiling Fan (continued)
7. Cut off excess lead wire approximately 6 to 9 inches
above top of the top of the downrod. Strip insulation off
1/2 inch from the end of each lead wire. (Figure 7)
NOTE:
All set screws must be checked, and retightened
where necessary, before installation.

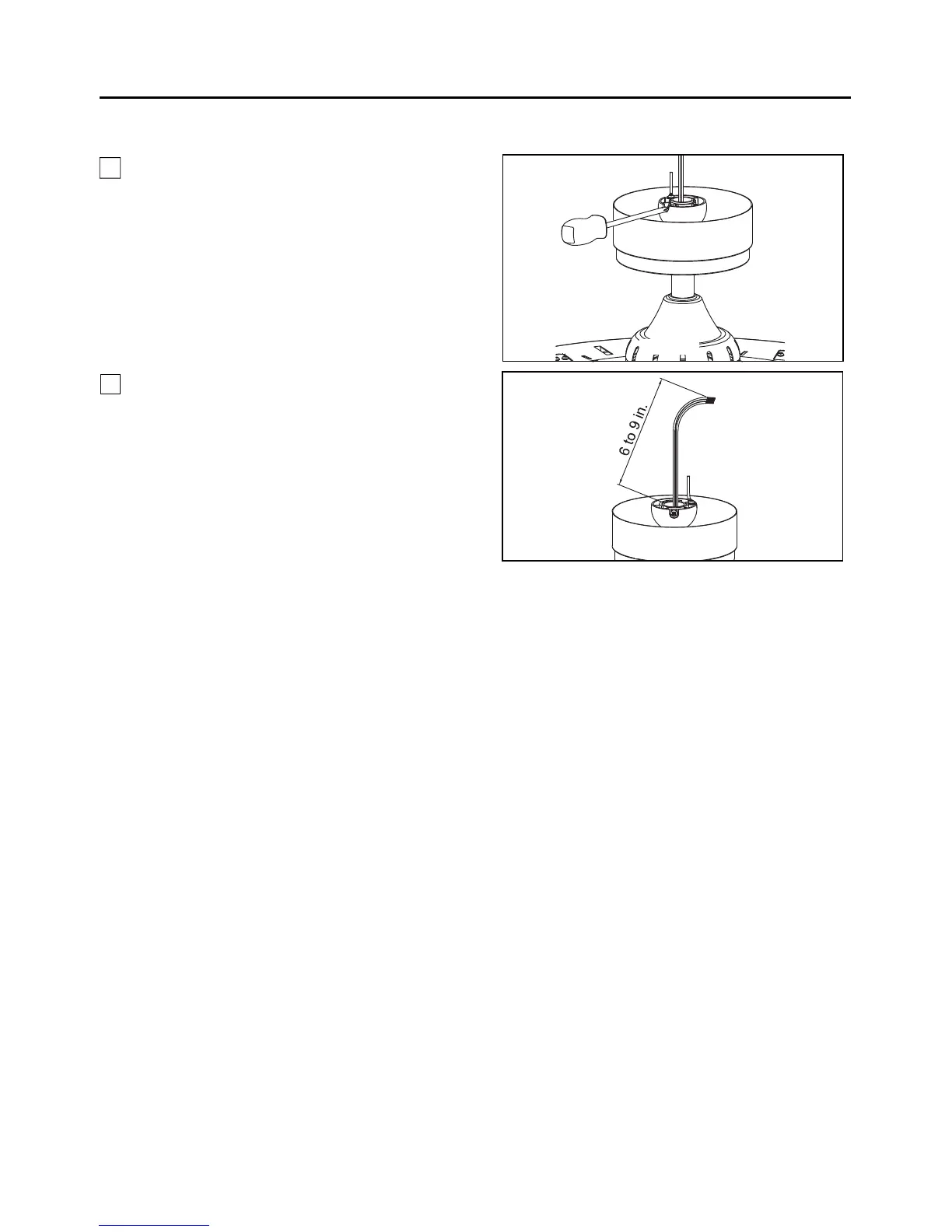

Figure 6
Figure 7
6. Reinstall the hanger ball on the downrod as follows.
Route the three 80 in. wires through the hanger ball.
Position the pin through the two holes in the downrod
and align the hanger ball so the pin is captured in the
groove in the top of the hanger ball. Pull the hanger ball
up tight against the pin. Securely tighten the set screw
in the hanger ball. A loose set screw could create fan
wobble. (Figure 6)
