12

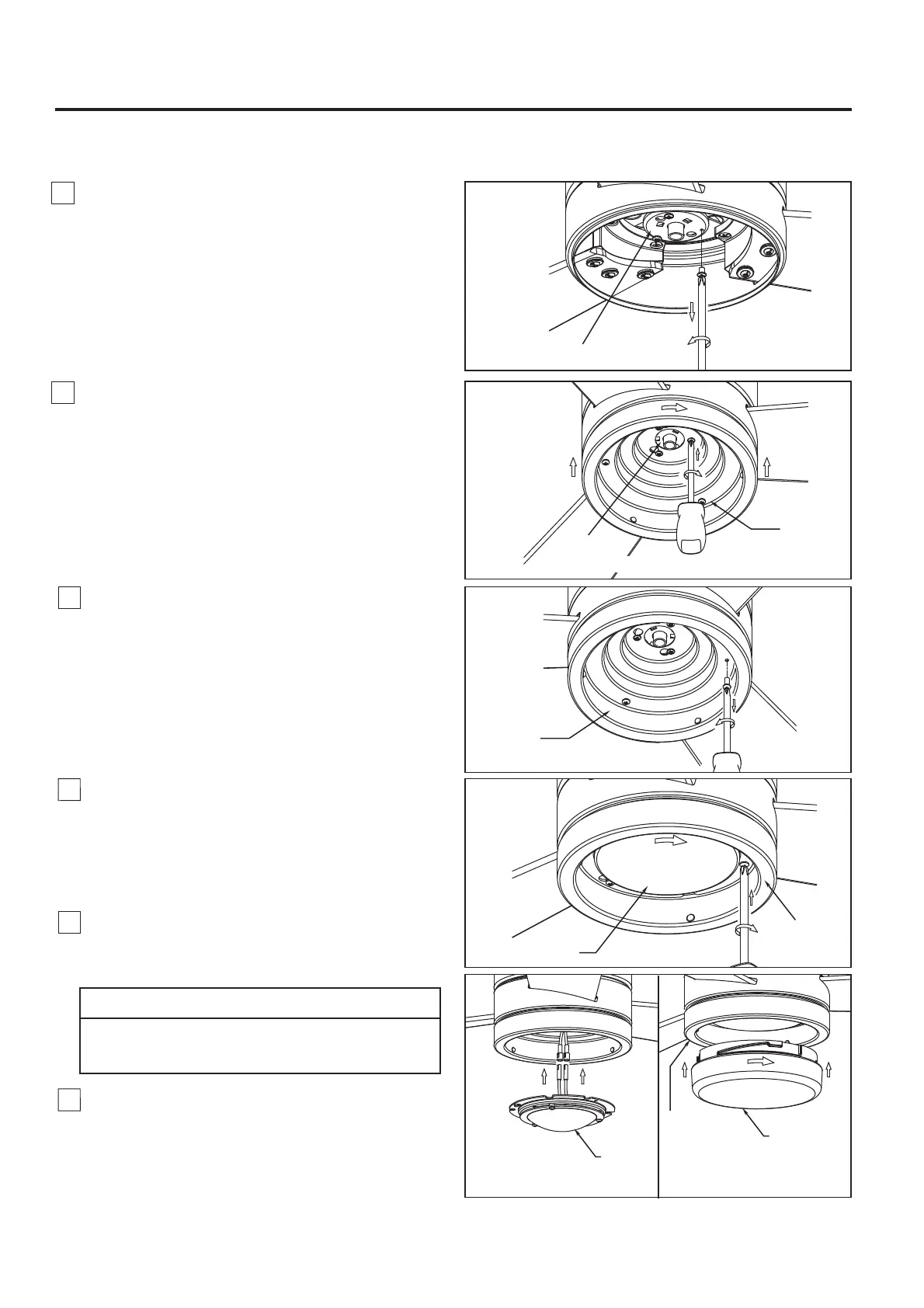

How to Assemble Your Light Kit or Cap
Motor Assembly
Figure 1
1. Remove one of the three screws in the support
bracket at the bottom of the motor assembly. Retain
the screw for later and slightly loosen the remaining
two screws. (Figure 1)
2. Assemble the light kit to the support bracket using
the two key slots in the light kit. Replace the previously
removed screw and securely tighten all three screws.
(Figure 2)
3. Remove one of the three screws in the light kit.
Retain the screw for later and slightly loosen the
remaining two screws. (Figure 3)
Figure 4
Figure 5A
4. If installing the light kit, skip this step.
Assemble the light kit wire cover to the light kit using
the two key slots. Replace the removed screw and
secure all three screws. (Figure 4)
Light Kit
Figure 3
Motor
Assembly
Figure 2
Light Kit
Light Kit
Figure 5B
Connect the 2 single pin connectors from the LED
assembly to the 2 single pin connectors from motor
assembly. (Figure 5A)
To reduce the risk of electric shock, disconnect the
electrical supply circult to the fan before installing
light kit.
CAUTION
5A. For use with light kit.
5B. For use with steel cap.
If you want to install the steel cap and not the light kit.
Assemble the steel cap to the light
kit
by twisting in
a clockwise direction. (Figure 5B)
NOTE:
If you have installed your fan with the steel
cap, skip Steps 6 and 7.
Light Kit Wire Cover
Steel Cap
Light Kit
LED
Assembly
To Next Page
