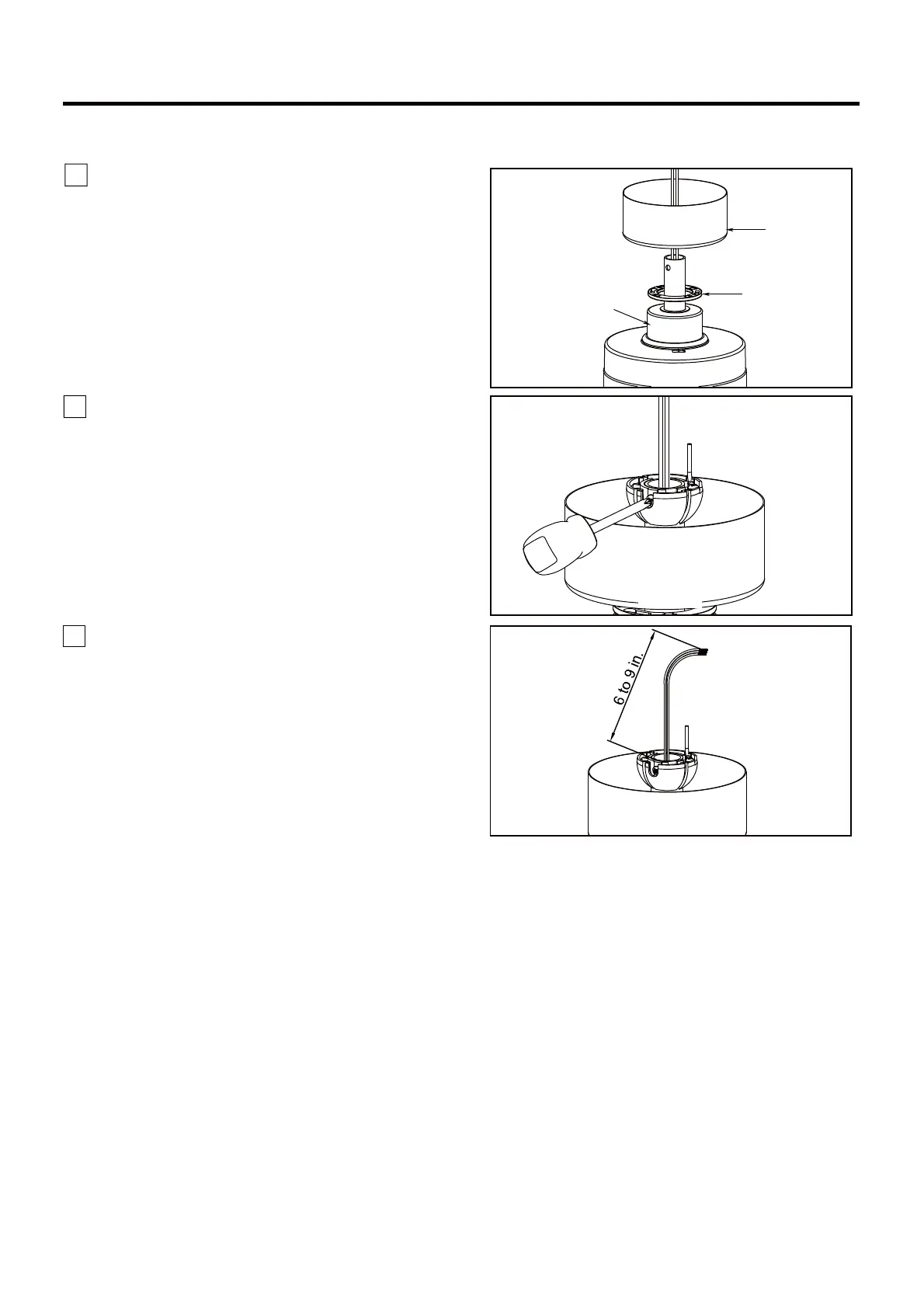

Figure 6
6. Route wires through motor coupling cover, canopy
screw cover and ceiling canopy. (Figure 6)
Motor Coupling
Cover
Ceiling Canopy
Canopy Screw
Cover
8
How to Assemble Your Ceiling Fan (continued)
8. Cut off excess lead wire approximately 6 to 9 inches
above top of the downrod. Strip insulation off 1/2 inch
from the end of each lead wire. (Figure 8)
Figure 7
Figure 8
NOTE:
All set screws must be checked, and retightened
where necessary, before installation.
7. Reinstall the hanger ball on the downrod as
follows. Route the black, white, blue and orange wires
through the hanger ball. Position the pin through the
two holes in the downrod and align the hanger ball
so the pin is captured in the groove in the top of the
hanger ball. Pull the hanger ball up tight against the
pin. Securely tighten the set screw in the hanger
ball. A loose set screw could create fan wobble.
(Figure 7)
