How to Wire Your Ceiling Fan (continued)
11
NOTE: This step is applicable after the necessary wiring
is completed.
How to Install Your Canopy Housing

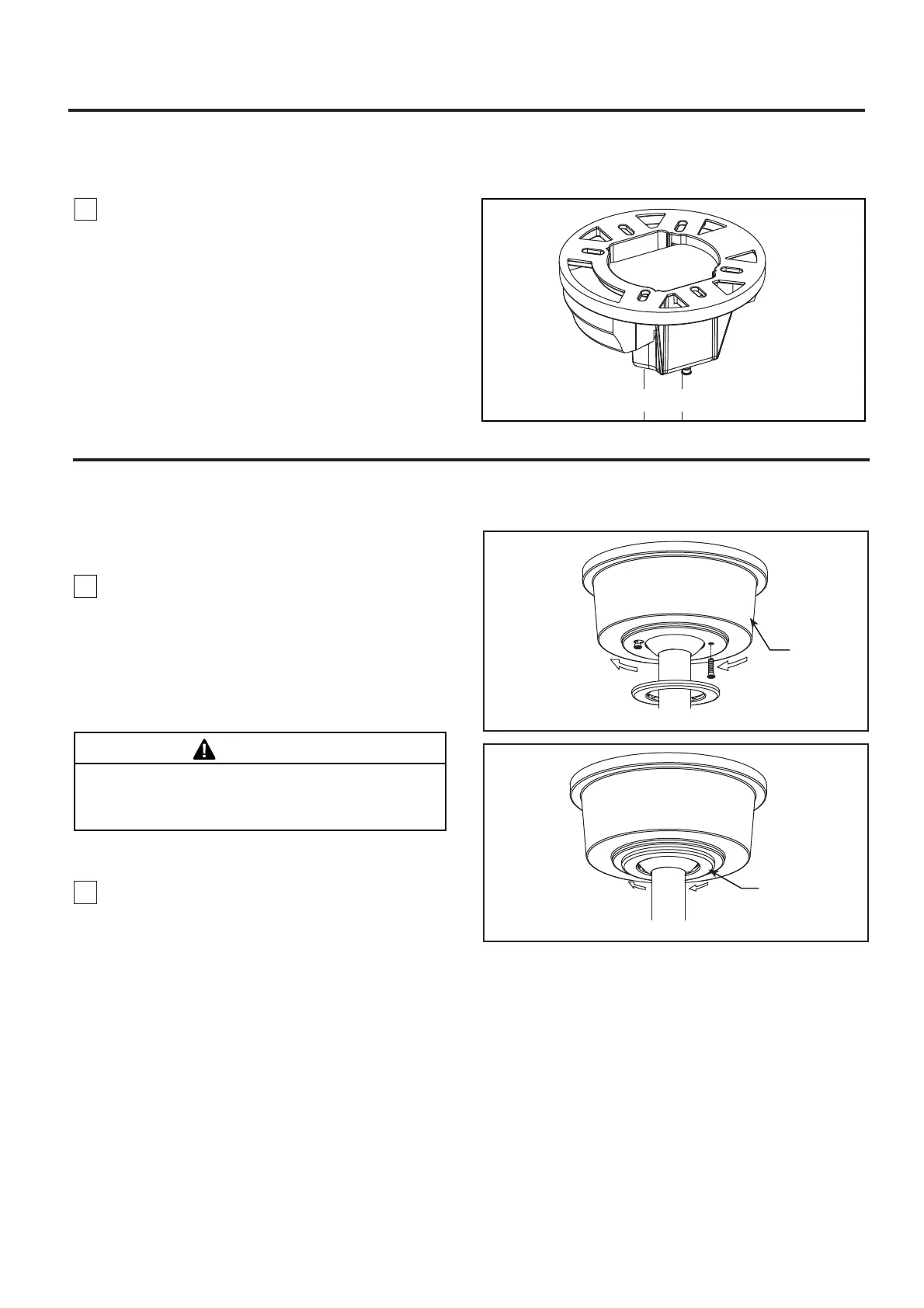

Figure 2
Figure 1
Canopy
Canopy Screw
Cover
1. Remove one of the two shoulder screws in the
hanger bracket. Loosen the second shoulder screw
without fully removing it. Assemble canopy by
rotating key slot in canopy over shoulder screw in
hanger bracket. Tighten shoulder screw. Fully
assemble and tighten second shoulder screw that
was previously removed. (Figure 1)
WARNING
To avoid possible fire or shock, make sure that the
electrical wires are completely inside the canopy
housing and not pinched between the housing and the
ceiling.
2. Securely attach and tighten the canopy screw
cover over the shoulder screws in the hanger
bracket utilizing the keyslot twist-lock feature.
(Figrue 2)
Figure 6
5. If your receiver slid out of the bracket at all while
wiring your fan, slide it all the way into the hanger
bracket, taking care not to pinch the wires. The
canopy comes up to cover the receiver and hanger
bracket. (Figure 6)
