NOTE: Place the parts from the loose parts bags in a small
container to keep them from being lost. If any parts are missing,
contact your local retailer.
This manual is designed to make it as easy as possible for you
to assemble, install, operate, and maintain your ceiling fan.
Unpacking Instructions
For your convenience, check-off each step. As each step is completed, place a check mark. This will ensure that all
.detpurretniebuoydluohsecalpruoygnidnifnilufpleheblliwdnadetelpmocneebevahspets
Wiring outlet box and box connectors must be of type
required by local code. The minimum wire would be a 3-
conductor (2-wire with ground) of the following size:
Tools Needed for Assembly Materials
Wire Size A.W.G.Installed Wire Length
14
12
Up to 50 ft.
50 - 100 ft.
NOTE: If you are uncertain of part description, refer to
exploded view illustration.
4

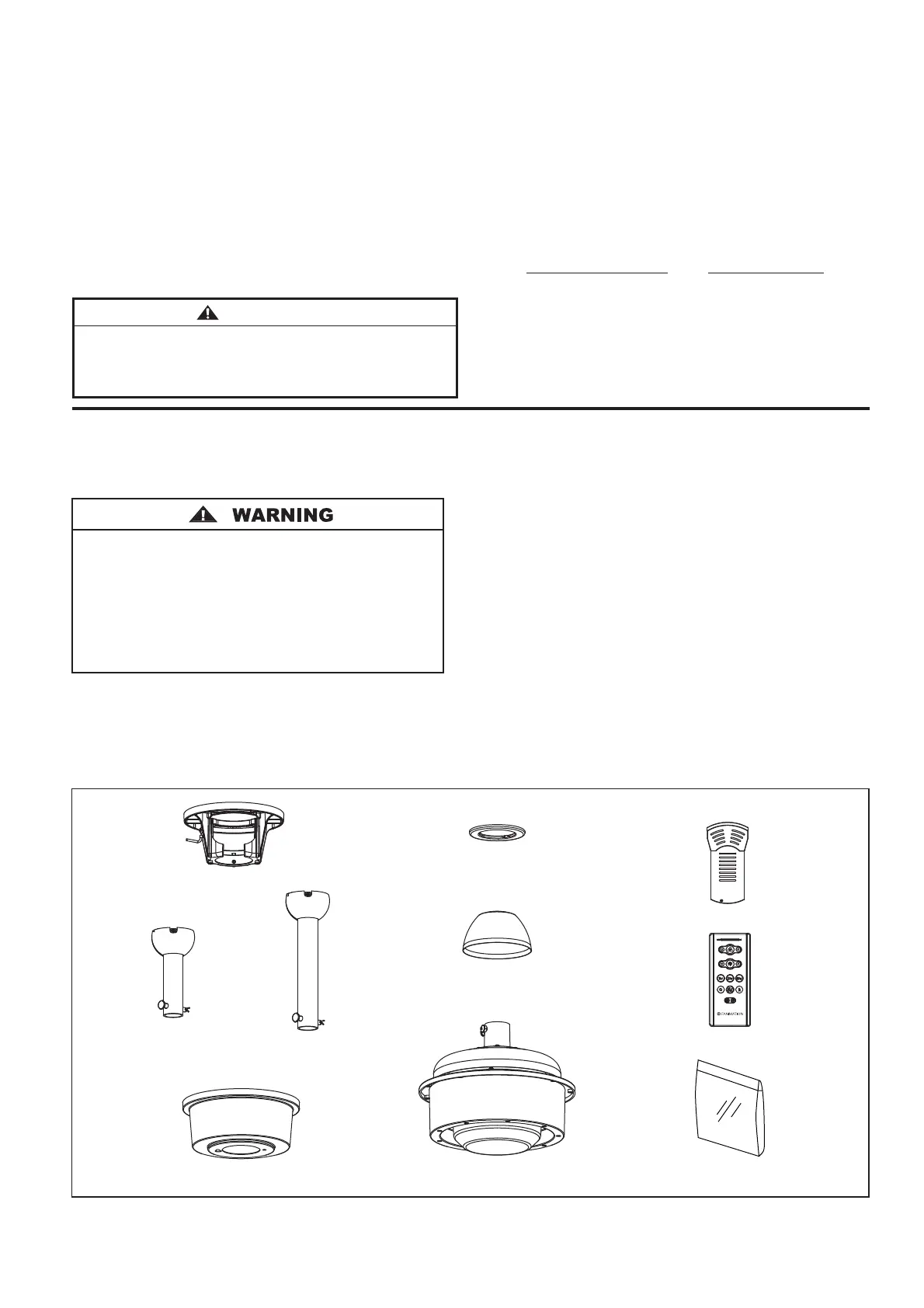

1. Check to see that you have received the following
parts:
Hardware Bags
Motor Assembly
Downrod/Hanger Ball
Assembly (MAD8530)
Downrod/Hanger Ball
Assembly (MAD8531)
WARNING
Before assembling your ceiling fan, refer to section on
proper method of wiring your fan (page 10). If you feel you
do not have enough wiring knowledge or experience,
have your fan installed by a licensed electrician.
• Motor Assembly
• Hanger Bracket Assembly
• Downrod/Hanger Ball
Assembly
• Ceiling Canopy
• Motor Coupling Cover Assembly
• Hand-Held Remote
• Receiver Unit
• Canopy Screw Cover Assembly
• Hardware bags:
Hanger Bracket
Assembly
Motor Coupling
Cover Assembly
Canopy Screw
Cover Assembly
Hand-Held Remote
Receiver Unit
Do not install or use fan if any part is damaged or
missing. This product is designed to use only those
parts supplied with this product and/or any
accessories designated specifically for use with this
product by Fanimation. Substitution of parts or
accessories not designated for use with this product
by Fanimation could result in personal injury or
property damage.
– Bag Assembly Safety Cable
– Four Wire Connectors
• One Phillips head screwdriver
• One stepladder
• One ¼˝ blade screwdriver
• One wire stripper
• Four wire connectors
Ceiling Canopy
– Nineteen 3/16˝-24 Serrated head
screws & Stainless flat washers
(blade to to fan motor hub)
