Fanimation WRAP MAD8530 User Manual

4. Slide downrod into the downrod support on top of
the motor. Install the clevis pin by aligning the holes
in the downrod support with holes in the downrod.
Secure clevis pin with hairpin clip. Install and tighten the
two set screws with nuts in the downrod support.
(Figure 4)
WARNING
It is critical that the clevis pin in the downrod support
is properly installed and the set screws and nuts are
securely tightened. Failure to do so could result in
the fan falling.
3. Loosen the two set screws and locking nuts in
the downrod support of the motor assembly. Route
the black/white, blue, red, gray and yellow wires
and safety cable through the downrod. (Figure 3)
7

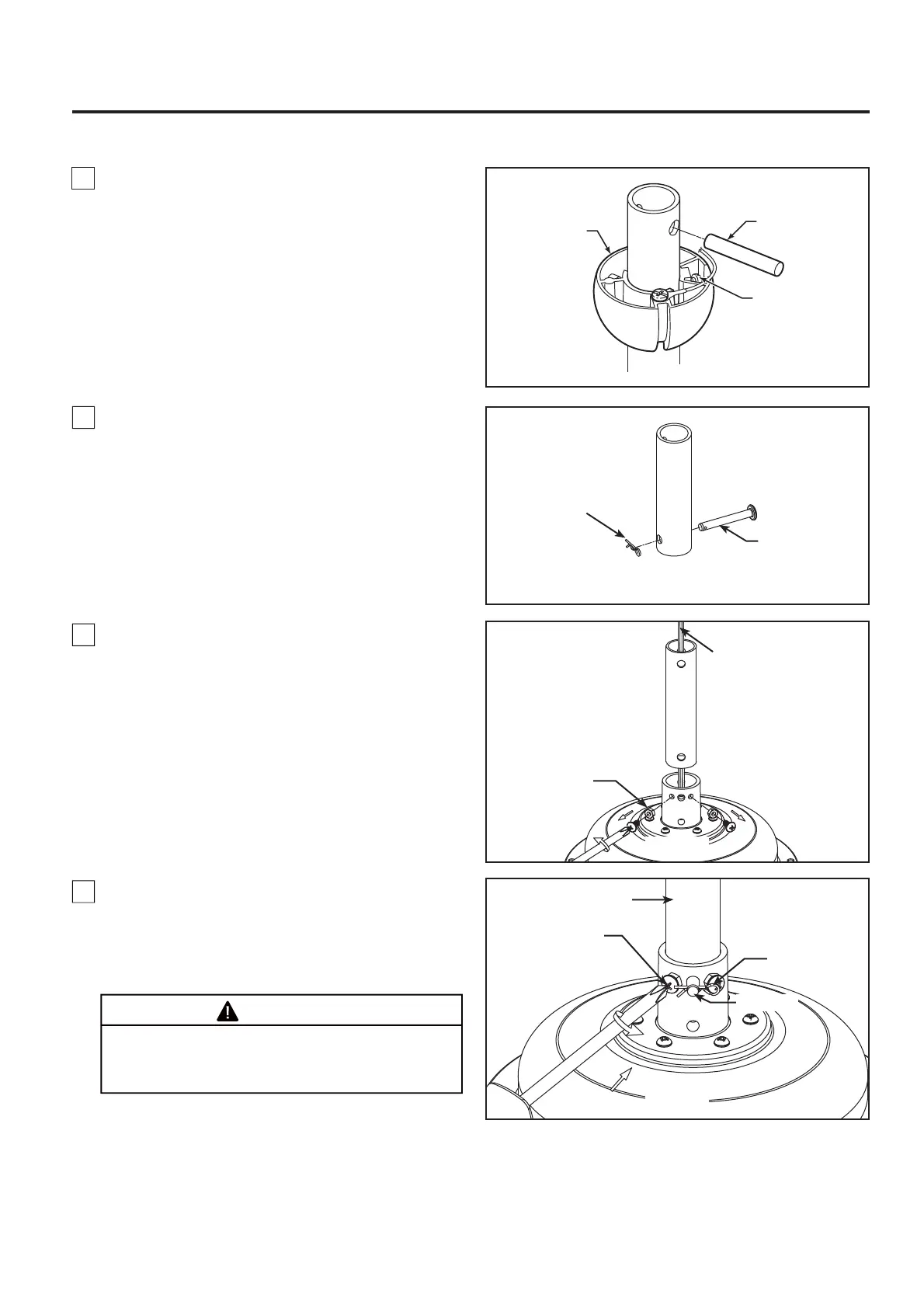

How to Assemble Your Ceiling Fan
Figure 1
Pin
Set screw
Hanger
Ball
1. Prior to assembly, set aside and save the hardware
bags packaged with your fan. Remove the hanger ball
by loosening the set screw in the hanger ball until the
ball falls freely down the downrod. Remove the pin
from the downrod, then remove the hanger ball.
Retain the pin and hanger ball for reinstallation in
Step 6. (Figure1)
2. Remove the hairpin clip and clevis pin from the
bottom of downrod. Retain the pin and clip for
reinstallation in Step 4. (Figure 2)
Figure 2
Hairpin Clip
Clevis Pin
Black/White, Blue, Red,
Gray, Yellow wires and
Safety Cable
Set Screws
and nuts (2)
Figure 3
Downrod
Set Screws and
Locking Nuts (2)
Hairpin Clip
Figure 4
Clevis Pin
