8

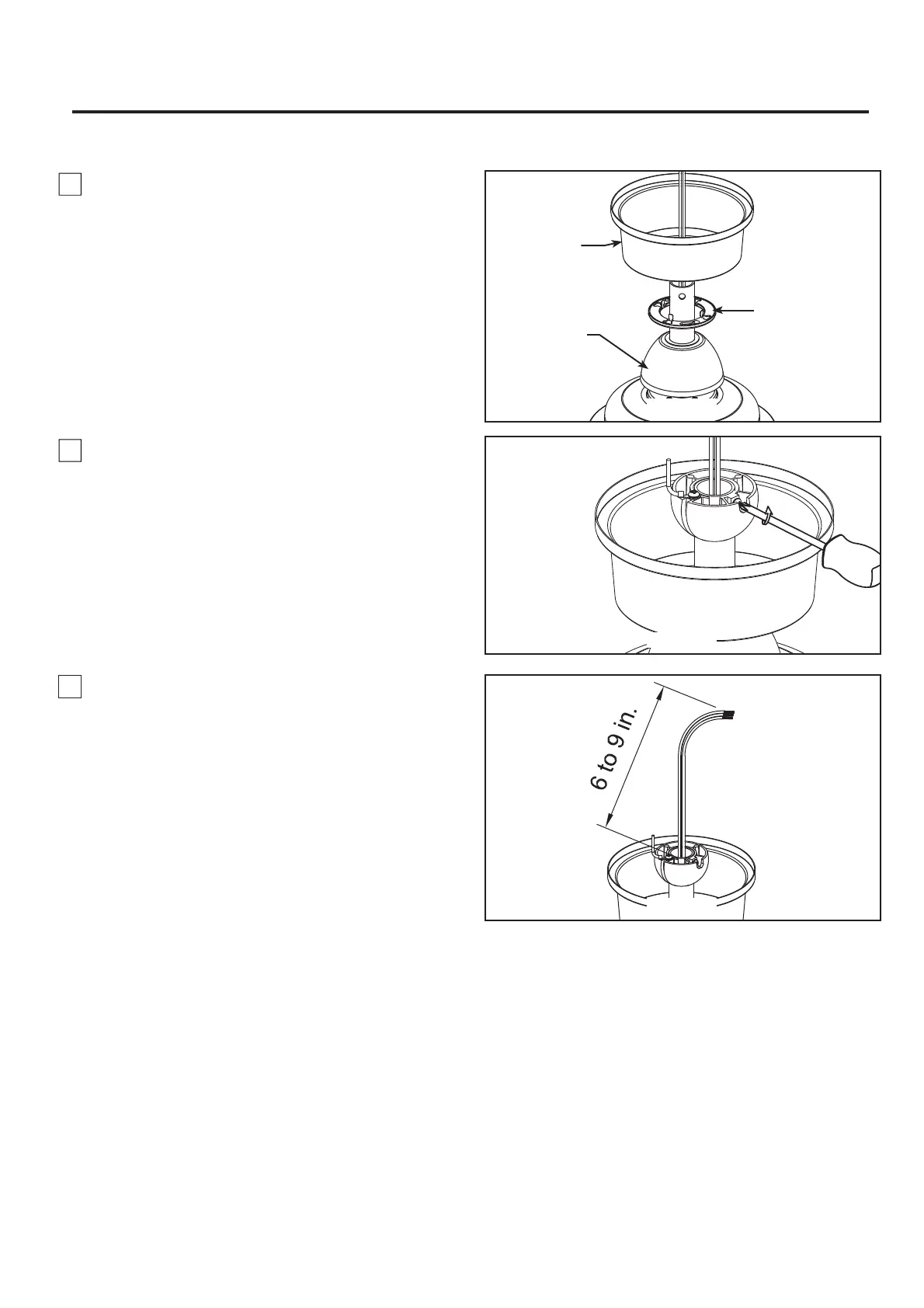

How to Assemble Your Ceiling Fan (continued)
7. Cut off excess lead wire approximately 6 to 9
inches above top of the downrod. Strip insulation
off 1/2 inch from the end of each lead wire. (Figure 7)
NOTE:
All set screws must be checked, and retightened
where necessary before installation.
Canopy Screw
Cover
Ceiling
Canopy
Motor Coupling
Cover
Figure 5
Figure 6
Figure 7
5. Route wires and safety cable through motor coupling
cover, canopy screw cover and ceiling canopy. (Figure 5)
6. Reinstall the hanger ball on the downrod as
follows. Route the black/white, blue, red, gray and
yellow wires and safety cable through the hanger ball.
Position the pin through the two holes in the downrod
and align the hanger ball so the pin is captured in the
groove in the top of the hanger ball. Pull the hanger ball
up tight against the pin. Securely tighten the set screw
in the hanger ball. A loose set screw could cause fan
wobble. (Figure 6)
