Fanvil PA2S User Manual

11
6 User Guide
6.1 Interface description

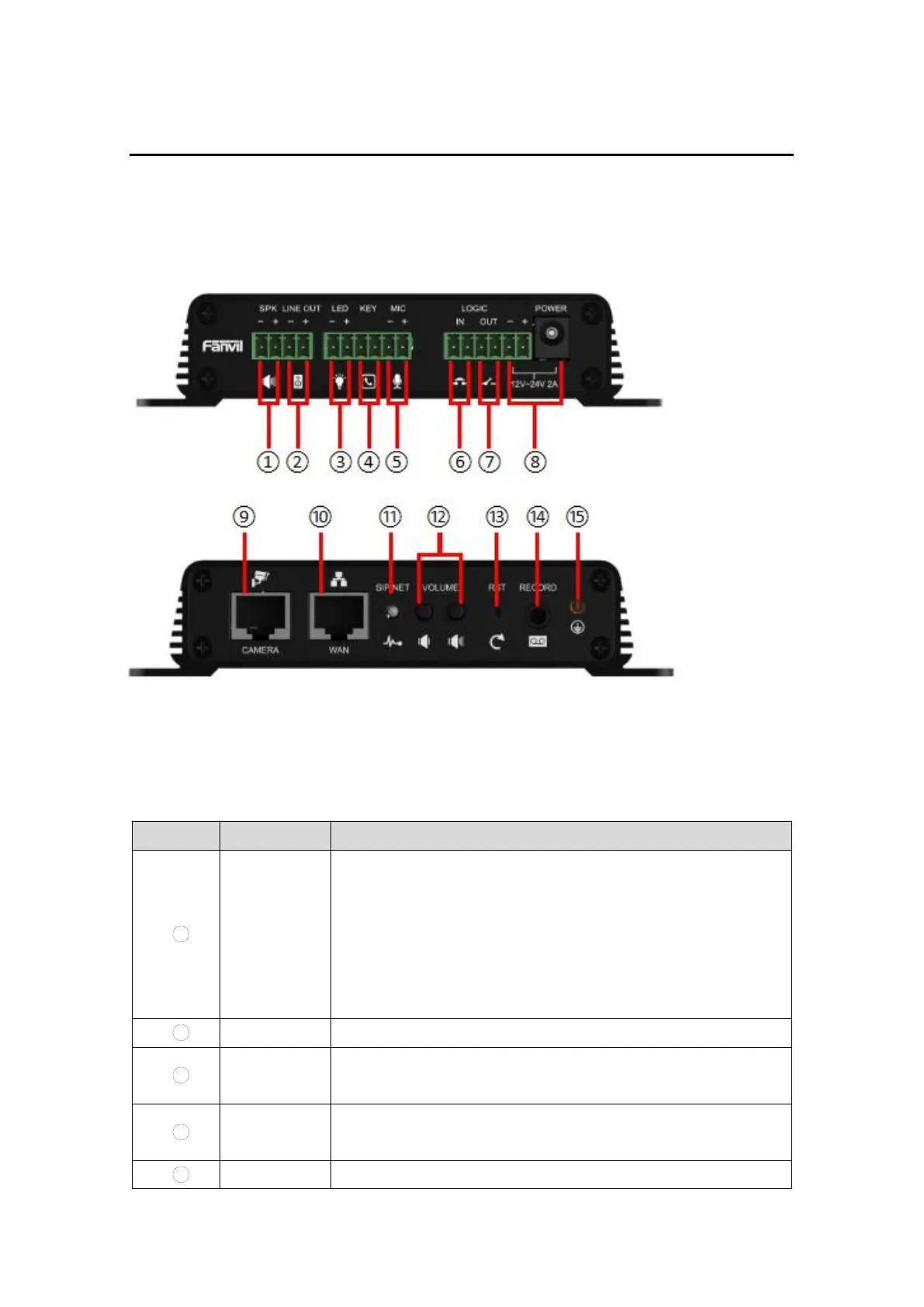

Picture 1- Interface display
Table 3- Interface Description
Number
Name
Description
1
Speaker port
Speaker port: according to the device input voltage adaptive
output maximum power.
4Ω spkaker, POE/10W, 12V/10W, 18V/20W, 24V/30W.
The greater the horn impedance, the smaller the output
power.
Suggested wire diameter: 18AWG or larger diameter.
2
Line out port
audio signal output, for external headset or active speakers.
3
LED port
5V / 5mA output, can be an external LED, indicating the
network status, call status, registration status.
4
Function
button port
connection the function button, you can make an emergency
call through this button.
5
Microphone
the multiplex port is microphone input by default, which can

Fanvil PA2S Specifications

General

Supported protocols	SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS RTP/RTCP/SRTP STUN DHCP IPv6 PPPoE L2TP OpenVPN SNTP FTP/TFTP HTTP/HTTPS TR-069
Full duplex	Yes
VPN support	L2TP / OpenVPN
Ethernet LAN data rates	10, 100 Mbit/s
WAN connection	Ethernet (RJ-45)
Headphone connectivity	3.5 mm
Ethernet LAN (RJ-45) ports	2
Package depth	58 mm
Package width	147 mm
Package height	114 mm
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	10 - 95 %
Mounting type	Desktop/Wall mounting
Product color	Black
LED indicators	Network, Status
Enclosure material	Aluminum
Voice codecs	G.711a, G.711u, G.722, G.729A, G.729B, OPUS

Weight and Dimensions

Depth	28 mm
Width	113 mm
Height	83 mm
