14
6.3 WEB configuration
When the device and your computer are successfully connected to the network, enter the IP
address of the device on the browser as http://xxx.xxx.xxx.xxx/ and you can see the login
interface of the web page management.

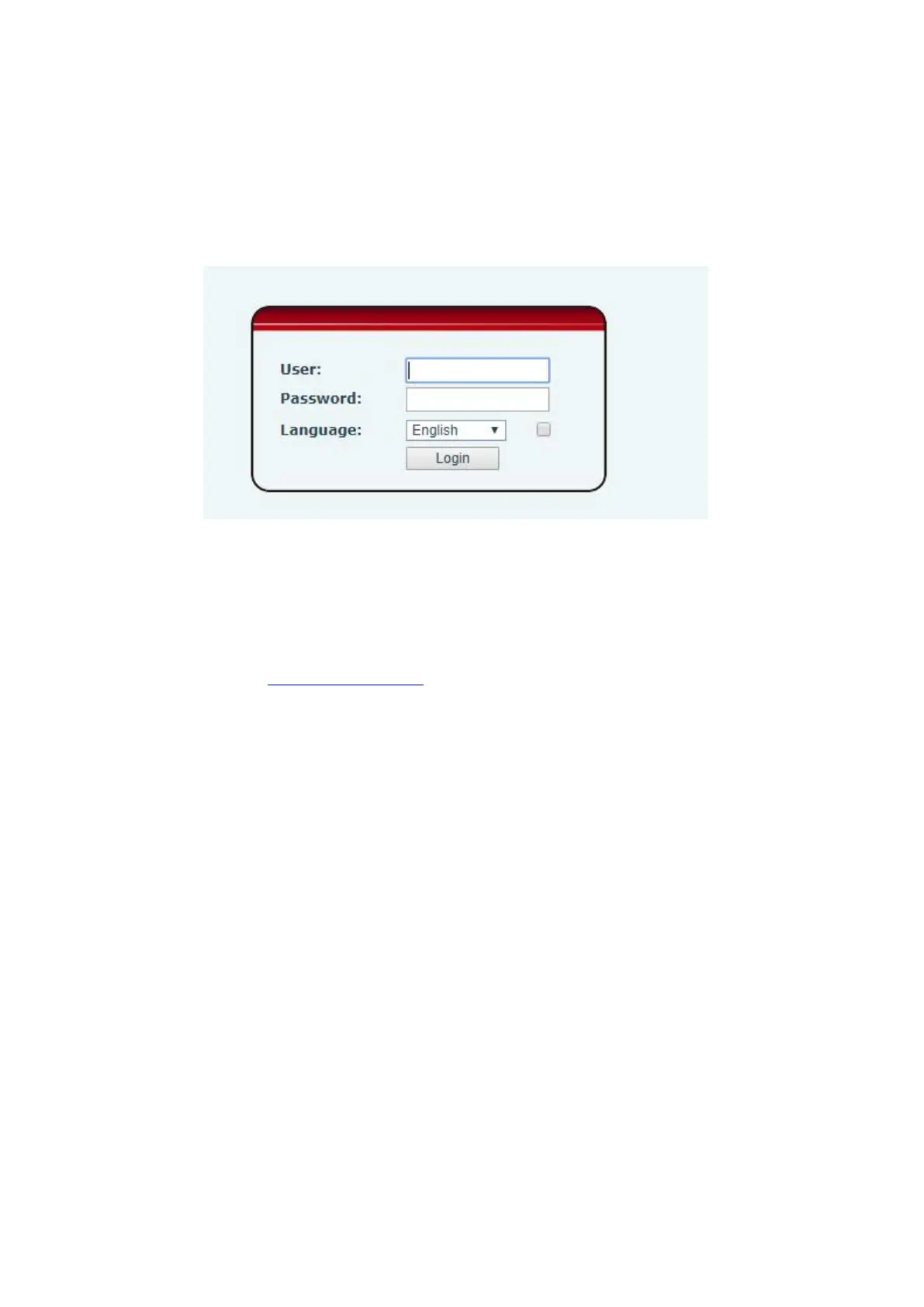

Picture 2 - WEB Login
The username and password should be correct to log in to the web page. The default
username and password are "admin". For the specific details of the operation of the web
page, please refer to 9 Web Configurations
6.4 SIP Configurations
At least one SIP line should be configured properly to enable the telephony service. The line
configuration is like a virtualized SIM card. Just like a SIM card on a mobile phone, it stores the
service provider and the account information used for registration and authentication. When the
device is applied with the configuration, it will register the device to the service provider with the
server’s address and user’s authentication as stored in the configurations.
The SIP line configuration should be set via the WEB configuration page by entering the correct
information such as phone number, authentication name/password, SIP server address, server
port, etc. which are provided by the SIP server administrator.
WEB interfaceAfter login into the phone page, enter [Line] >> [SIP] and select SIP1/SIP2
for configuration, click apply to complete registration after configuration, as shown below:

Other manuals for Fanvil PA2S

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Fanvil PA2S and is the answer not in the manual?

Fanvil PA2S Specifications

General IconGeneral
Supported protocolsSIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS RTP/RTCP/SRTP STUN DHCP IPv6 PPPoE L2TP OpenVPN SNTP FTP/TFTP HTTP/HTTPS TR-069
Full duplexYes
VPN supportL2TP / OpenVPN
Ethernet LAN data rates10, 100 Mbit/s
WAN connectionEthernet (RJ-45)
Headphone connectivity3.5 mm
Ethernet LAN (RJ-45) ports2
Package depth58 mm
Package width147 mm
Package height114 mm
Operating temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)10 - 95 %
Mounting typeDesktop/Wall mounting
Product colorBlack
LED indicatorsNetwork, Status
Enclosure materialAluminum
Voice codecsG.711a, G.711u, G.722, G.729A, G.729B, OPUS
Weight and Dimensions IconWeight and Dimensions
Depth28 mm
Width113 mm
Height83 mm
