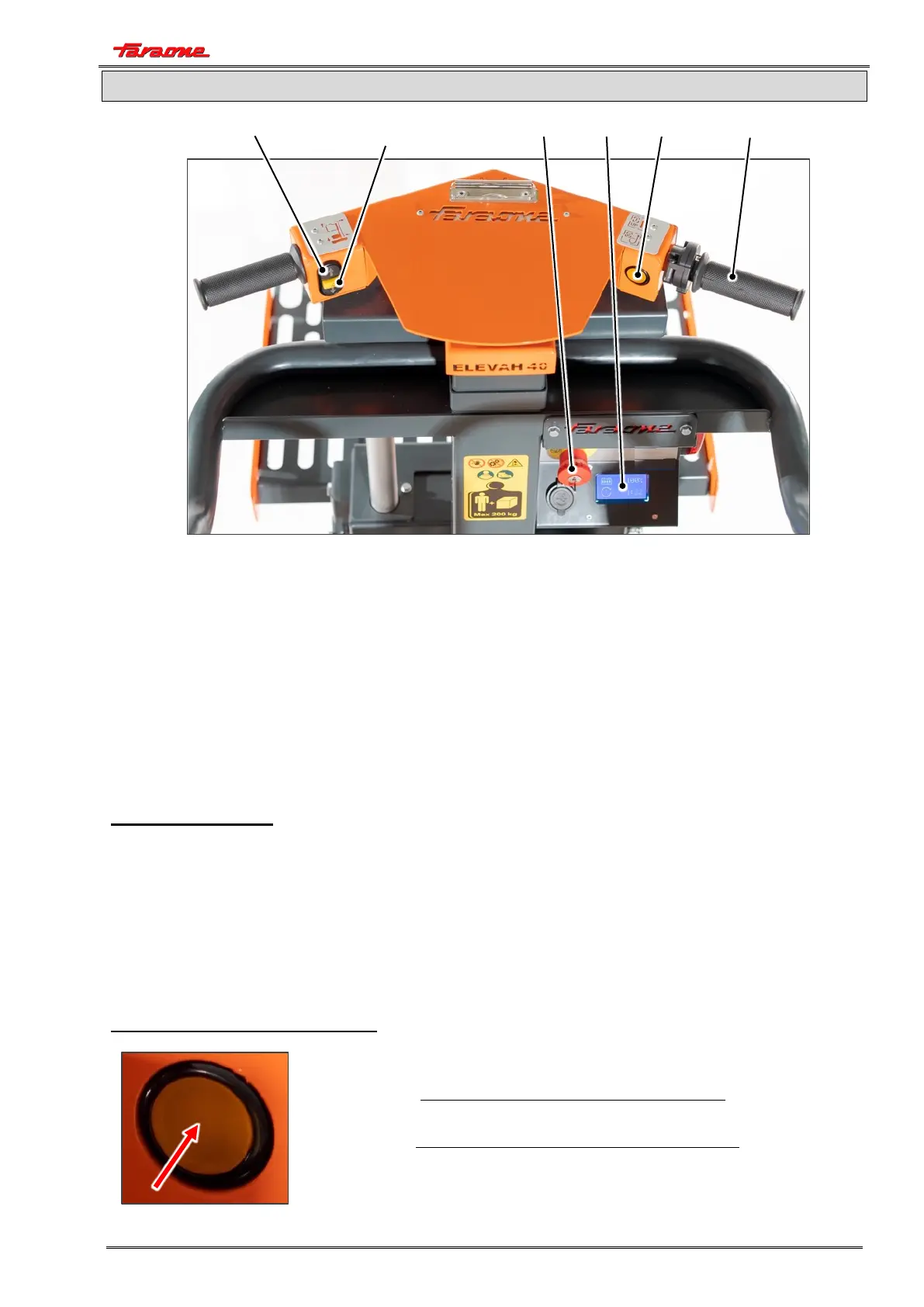

CONTROL CONSOLE IN THE CAGE (ELEVAH 40 MOVE PICKING)
1. Emergency stop button with switch with removable key;
2. Audible device button;
3. Up/down - forward/backward control;
4. Cage run/lifting selector button;
5. Proportional control accelerator;
6. Error warning/battery charge/machine operation hour display.
General information
Before operating the machine from the cage control console, the following conditions of the controls
must be met:
• The battery voltage must be sufficient to operate the machine.
• The emergency stop switch with removable key, located on the control station in the cage
must be on RESET.
Button to enable the cage run/lift
0. Press (the button will remain inside the ring) to enable the
movement of the cage (ascent/descent)
1. Press (the button will remain aligned with the ring) to enable the
movement of the machine (front/back)
3
5
4
1
2
6
