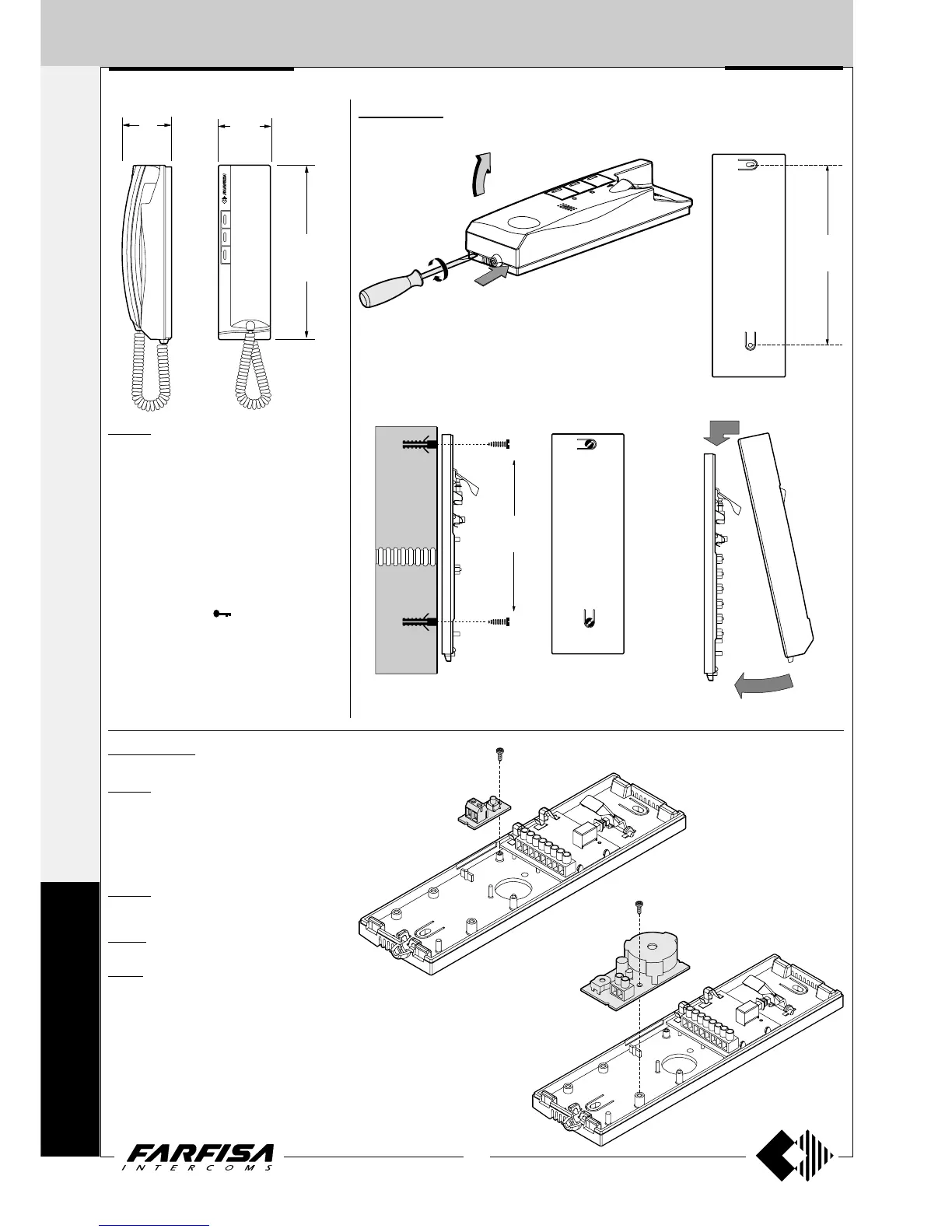

EX310. White electronic intercom with two
push-buttons, spiral cord, electronic micro-
phone and possibility to insert an additional
EX301 push-button and a SR41, RL36 or
EX304 module (description and characteris-
tics of the modules on page 13). Wall-mount-
able with expansion plugs or wall box.
Terminals
1 Microphone
2 Loudspeaker
3 Ground
5 Door release button (max 1A)
0 Common button
(connected to terminal
3 with jumper W1)
C Common contact for 1 push-button
9 Electronic call input
P Service push-button (max 1A)
INTERCOMS
Accessories
EX301. Single button module for Exhito
intercoms. Maximum contact current is 0.1A.
For higher currents use a relay.
Note. For easier reference the 2 terminals of
the module are defined as C and P, but they
have no polarity and can be inverted.
EX304. Additional loudspeaker module.
See page 13.
RL 36. Relay module. See page 99.
SR41. Electronic buzzer module.
See page 13.
65
2
"
16
/
9
62
2
"
16
/
7
218
8
"
16
/
9
P
7
C
3
3
1
6
A1
EX301
SR41 or
RL36 or
EX304
Wall version
172.5
6
"
16
/
13
172.5
6
"
16
/
13
