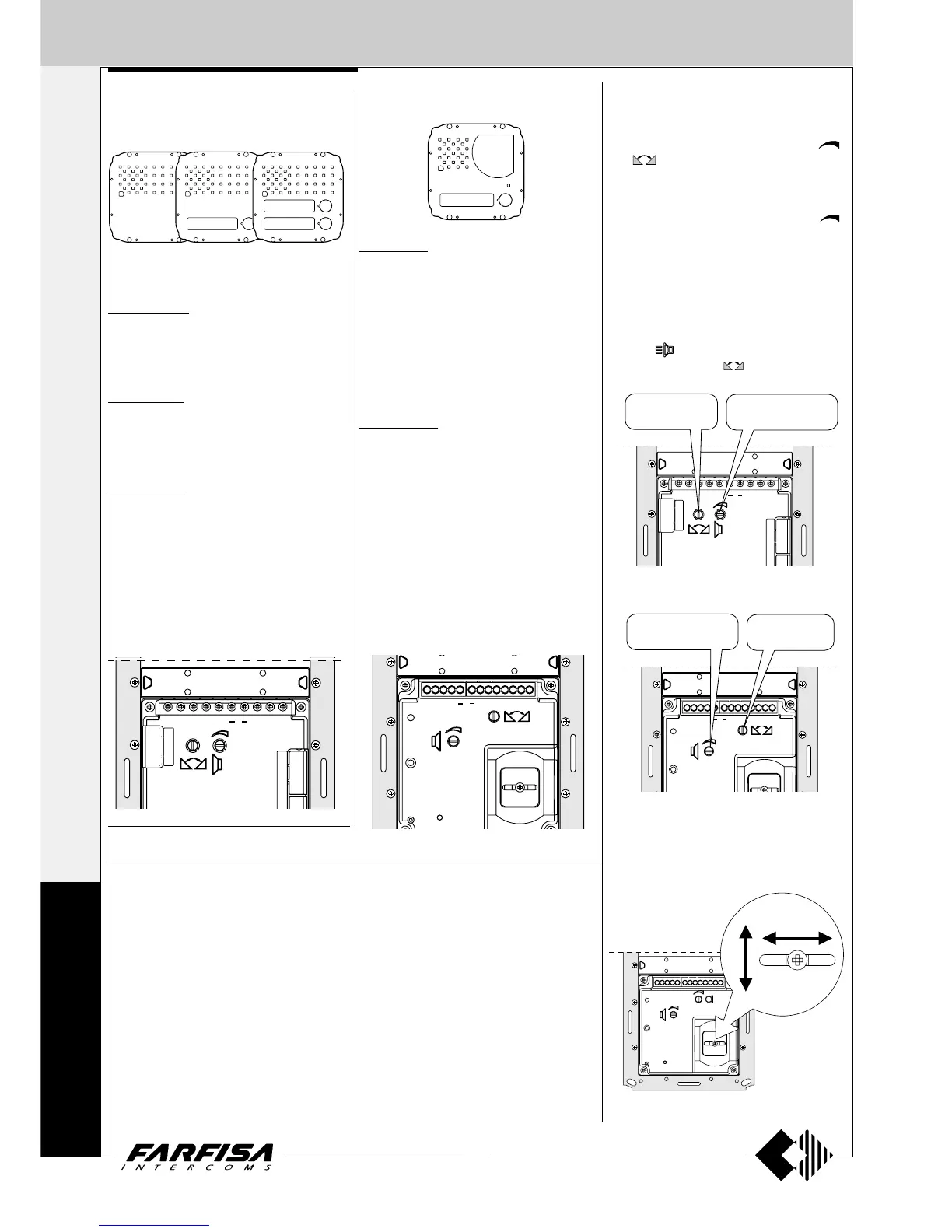

FARFISA INTERCOMS ECHOS User Manual

32
(MT11 - Gb2012)
S
1
A
L+
E
CP2P1
Receiver adjustable
volume
Feedback
adjustment
S
1
A
L+
E
CP2P1
MAS10PED. Audio module without
push-buttons. Complete with amplified door
speaker in two channels and control of volume
of "receiver", stainless steel front plate and red
operation LED.
MAS11PED. They are different from the
previous model for the presence of a calling
push-button and nameplate, realized with van-
dal proof polycarbonate and backlighted with
green LED’s.
MAS12PED. Module with 2 call buttons.
Terminals
A Supply 13VAC-70mA
- Ground
1 Reception-transmission; electric lock release;
call
S Electric lock
E Reception-transmission; electric lock release
P1-P2 Call push-buttons
C Call push-buttons common
L+ DC power supply input for service Led
AMPLIFIED DOOR STATIONS
MAS43ED.
B/W camera module for 4+1 video systems
without coaxial cable, including:
- solid-state CCD camera, with auto iris, 3.6mm
fixed optics and 6 infrared LED’s;
- stainless steel front plate complete with trans-
parent anti-temper screen, steel call button
with corresponding name plate holder;
- horizontal/vertical adjustment;
- red operation LED;
- amplified door speaker.
MAS43CED.
Colour version of the MAS43ED model.
Terminals
A Supply 13VAC-70mA
- Ground
1 Reception-transmission; electric lock re-
lease; call
S Electric lock
E Reception-transmission; electric lock release
P Call push-button
C Call push-button common
L+ DC power supply input for service Led
Y Positive video signal output
F Ground
X Negative video signal output
H Positive power supply input 21Vdc
CAMERAS
CPXYHFAS
1
EL+
Testing and adjustments
Adjustments are carried out in the factory;
should any be necessary they can be re-ad-
justed from the outside with a screwdriver with
the trimmers identified by the symbols "
"
and
.
Volume adjustment
To increase the volume from the amplifier in
the transmission mode, turn the trimmer “
"
in a clockwise direction.
Antilocale adjustment
In case of "feedback" (Larsen effect) in the
external unit it is necessary to operate as
follow:
- make the call from the door station and lift the
handset of an intercom or videointercom
(press
for Echos series);
- adjust the trimmer until the whistling
stops (Larsen effect).
MAS10PED MAS11PED MAS12PED
MAS43ED MAS43CED
Adjustments
You can manually change the camera framing
by unloosening and adjusting the horizontal
and vertical screws in the desired direction.
(±15°)
MAS43ED
MAS43CED
Technical data MAS43ED MAS43CED
Power supply 18÷24Vdc 18÷24Vdc
Operating current 0.3A 0.4A
Video signal output balanced balanced
Video signal standard CCIR PAL
Minimum illumination 2 Lux 2.5 Lux
White balanced - auto
Sensor CCD 1/4" B/W CCD 1/3" colour
Number of pixels 291,000 291,000
Horizontal frequency 15,625Hz 15,625Hz
Vertical frequency 50Hz 50Hz
Lens 3.6mm 3.6mm
Focus 0,1m ÷ ∞ 0,6m ÷ ∞
Autoiris electronic electronic
Horizontal adjustment ± 15° ± 15°
Vertical adjustment ± 15° ± 15°
Operating temperature -10°÷+40°C -10°÷+40°C
Maximum permissible humidity 80%RH 80%RH
EXTERNAL DOOR STATIONS
1+1
INTERCOMS *
4+1
VIDEOINTERCOMS
M
A
T
R
I
X
CPXYHFAS
1
EL+
Feedback
adjustment
Receiver adjustable
volume
