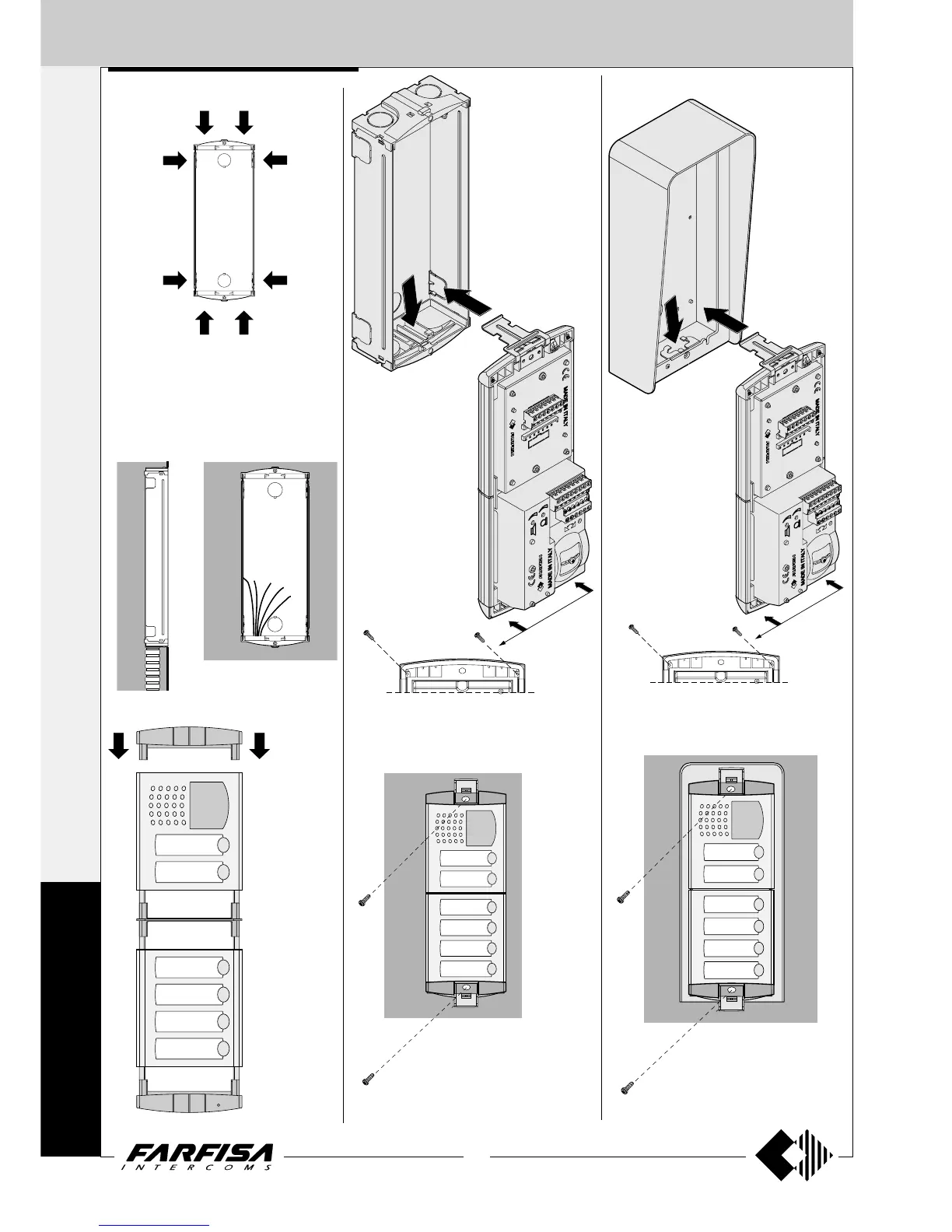

(MT11 - Gb2012)
Flush mounting and cables plac-
ing.
Mounting of
module.
Fixing of frame to back box.
Align the frame before tighten-
ing the screws.
Fixing of module frames to the upper side by the
2 small screws included in the back boxes.
Fixing of frame to rain shelter.
Align the frame before tighten-
ing the screws.
Fixing of module frames to the upper side by
the 2 small screws included in the rain shelter.
Fix lower part of the
frame to the rain shelter
and make the electrical
connections.
Rain shelter
EXTERNAL DOOR STATIONS
Openings for cables.
1+1
INTERCOMS *
4+1
VIDEOINTERCOMS
P
R
O
F
I
L
O
Fix lower part of the
frame to the back box
and make the electri-
cal connections.
