FARFISA INTERCOMS ECHOS User Manual

64
(MT11 - Gb2012)
PA
SE
230V
127V
0
A
C
230V
127V
0
PRS210
1443ED
PRS210ED
A
1P
1M
F
7
1
3
C
A1
P
C
E
1
A
S
Profilo
Mody
Agorà
Matrix
AG 00A
AG30
1
ED
MAS11PED
PL11PED
MD11ED
P2
P1
1
3
C
P
A1
EX321 KM811
EX311

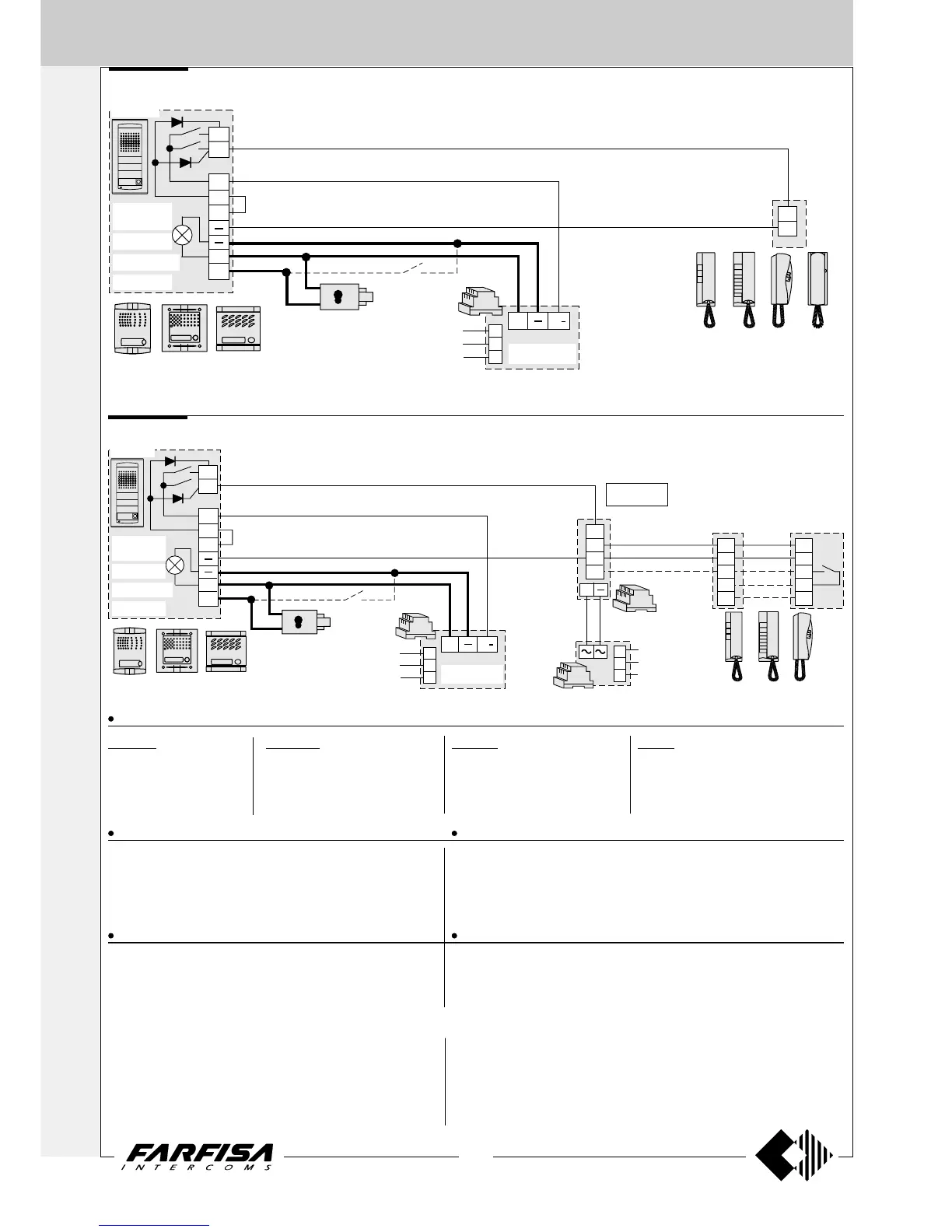

ONE-WAY INTERCOM SYSTEM
1+1
INTERCOMS *
4+1
VIDEOINTERCOMS
Si 211R/1
ONE-WAY INTERCOM SYSTEM WITH INTERCOMMUNICATING SERVICE BETWEEN 2 INTERCOMS
J1= 2-3
Si 211R/5
EXTERNAL DOOR STATIONS for Si 211R/1 and Si 211R/5
AGORA' series PROFILO series MATRIX series MODY series
1 AG100A 1 PL71 1 MA71 1 MD71
1 AG21 1 PL81 1 MAS61 (
1
)1MD81
3 AG20 1 PL91 * 1 MA91 * 1 MD91 *
1 AG30ED 1 PL11PED 1 MAS11PED 1 MD11ED
INTERNAL STATIONS for Si 211R/1 INTERNAL STATIONS for Si 211R/5
1 EX311 Exhito series with 2 call buttons 2 EX311 Exhito series with 2 call buttons
1 EX321 Exhito series modular intercom 2 EX321 Exhito series modular intercom
1 KM811W Compact series intercom with 1 call button 2 KM811W Compact series intercom with 1 call button
1 PT511EW Project series intercom with 1 call button 2 ST701 Additional push-button for intercom KM811W
VARIOUS ARTICLES for Si 211R/1 VARIOUS ARTICLES for Si 211R/5
1 PRS210ED Transformer with electronic ringing generator 1 PRS210ED Transformer with electronic ringing generator
1 PA ** Door release push-button (optional)1PRS210 Transformer
1 SE ** Electric door lock (12VAC-1A) 1 1443ED Switcher module for intercommunicating system
1 PA ** Door release push-button (optional)
1 SE ** Electric door lock (12VAC-1A)
PA
SE
230V
127V
0
A
C
PRS210ED
C
E
1
A
S
1
3
Profilo
Mody
Agorà
EX321 KM811
PT511E
Matrix
AG 00A
AG30
1
ED
MAS11PED
PL11PED
MD11ED
P2
P1
EX311
One-way system diagrams
(
1
) Or MA61.
* Rain shelters are used instead of back boxes and hood
covers.
** Articles not supplied by ACI Farfisa.
Working instructions. See page 52.
Notes
- In art. 1443ED it is necessary to move the jumper J1 in the position indicated
in the installation diagram (see also on page 48).
- Do not forget to connect the terminal E with the terminal 1 of the door stations
Profilo, Matrix and Mody (no connection it is required in the Agorà series).
- For wires dimensioning refer to the installation recommendations and table
on page 50.
