FARFISA INTERCOMS ECHOS - Flush Mounted Version

5
(MT11 - Gb2012)
1
”
16
/
13
46
8
/
5
92
7
”
16
/
9
192
3
”
4’ 11”
9083. Back-box for video intercoms
EH9161CT and EH9161CW.

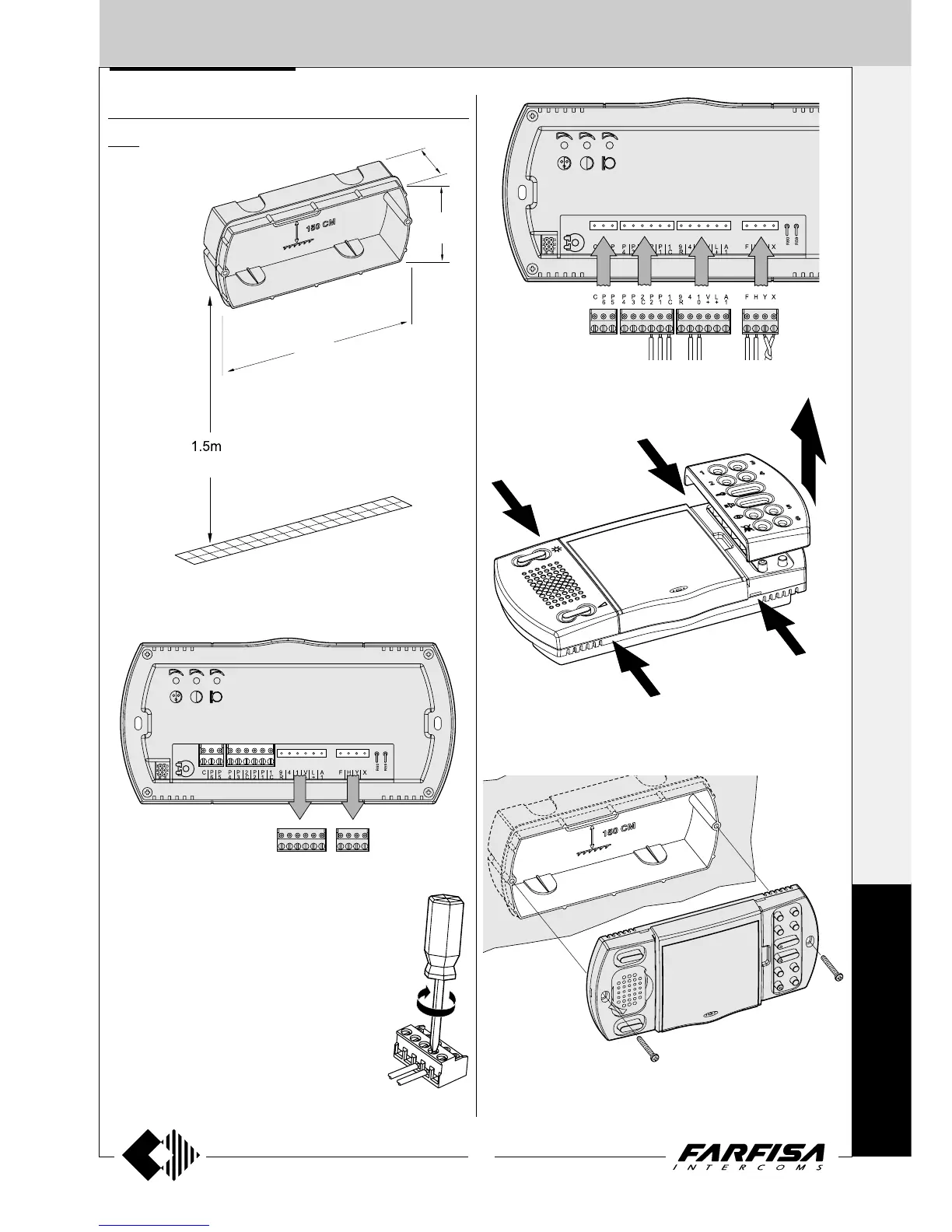

1 -Wall-up the back box art.9083 at an height of about 1.5 meters above
the floor.
2 - Unplug the terminal block from the video intercom.
3 -Make the connections as required by the elec-
tric diagram to wire. If the system provides for
the use of the buttons from 1 to 6, move the
jumpers J11 and J12, located on the back of
the video intercom, according to the required
function (see table on page 4).
4 -Plug-in back the terminal blocks on the video intercom paying
attention to their position and direction in order to avoid degradation
of the system.
5 -Remove the two frontal plastic frames to approach the two fixing
points of the video intercom.
6 - Fix the video intercom to the back box using the two screws supplied
with the product.
INTERNAL STATIONS
E
C
H
O
S
1+1
INTERCOMS *
4+1
VIDEOINTERCOMS
Flush mounted version
