33
(MT11 - Gb2012)
1+1
INTERCOMS *
4+1
VIDEOINTERCOMS
EXTERNAL DOOR STATIONS
M
A
T
R
I
X
MAS10PED MAS11PED MAS12PED MAS22 MAS24 MAS43ED
MAS43CED
111 1
EEE E
SSS S
AAAAAA
------
C C CCC
P1 P1 P1 P1 P
P2 P2 P2
P3
P4
X
Y
H
F
L+ L+ L+ L+

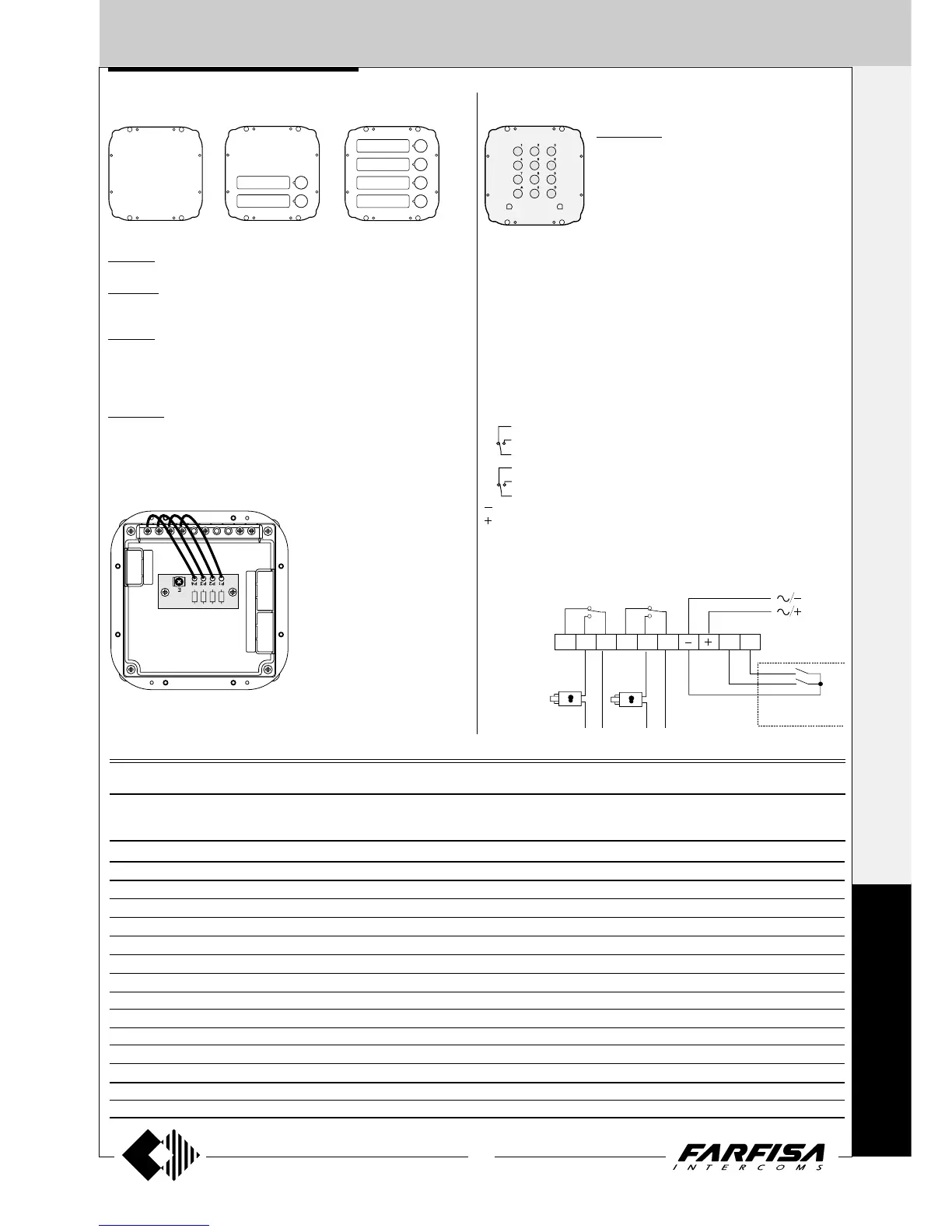

Technical characteristics of MATRIX modules terminal boards
Reception-transmission; electric lock release; call
Reception-transmission; electric lock release
Electric lock
Alternated power supply input for door speaker and name-plate Led (13Vac-70mA)
Ground
Call push-buttons common
Call push-button
Call push-button
Call push-button
Call push-button
Negative video signal output
Positive video signal output
Positive voltage input for camera (18÷24Vdc)
Video ground
DC power supply input for service Led (12Vdc)
Push-button modules
MAS20. Blank module in stainless steel.
MAS22. Module with 2 call buttons and name plate panel with
breakproof transparent screen and green LED backlight.
MAS24. With 4 call buttons.
241DMA. Module with diodes for 4 users.
It allows for the use of the button modules MAS22 and MAS24 in the 1+1
intercom systems and 4+1 video intercom systems. It is fixed on the
back of the button modules using the 2 supplied screws. Connect the
conductors of the diode module to the corresponding terminal on
MAS24 module; if MAS22 module is used do not connect P3 and P4
conductors and properly insulate them.
ACCESS CONTROL KEYPAD
FC52MAS. Electronic keypad with 12 keys
and 2 relays for lock release and access control
of door stations. 12 programmable access codes
for each relay. Programmable door opening time
from 1 up 99 sec. for each relay (or bistable
operation of relay). Acoustic and visual confirma-
tion for entered keys, accepted programming
and for wrong codes.
Technical data
Power supply: 12Vac/dc ±10%
Stand-by current: 0.02A
Max. current consumption: 0.1A
Contact ratings: 12Vac - 2A
Numbers of codes for relay 1: 12 + direct activation
Numbers of codes for relay 2: 12 + direct activation
Activation time for each relay: from 1 to 99 seconds (or bistable)
Operating temperature: 0° ÷ +40°C
Maximum permissible humidity: 85% RH
Degree of protection IP 45
Terminals
normally closed contact of relay 2
2 normally open contact of relay 2
common contact of relay 2
normally closed contact of relay 1
1 normally open contact of relay 1
common contact of relay 1
ground or alternating voltage input
positive or alternating voltage input
P2 activation of the relay 2; if momentarily connected to ground it allows the
activation for the programmed time
P1 activation of the relay 1; if momentarily connected to ground it allows the
activation for the programmed time
