FARFISA INTERCOMS ECHOS User Manual

14
(MT11 - Gb2012)
VIDEOINTERCOMS
1-2 = Videointercom with-
out audio privacy
2-3 = Videointercom with
audio privacy

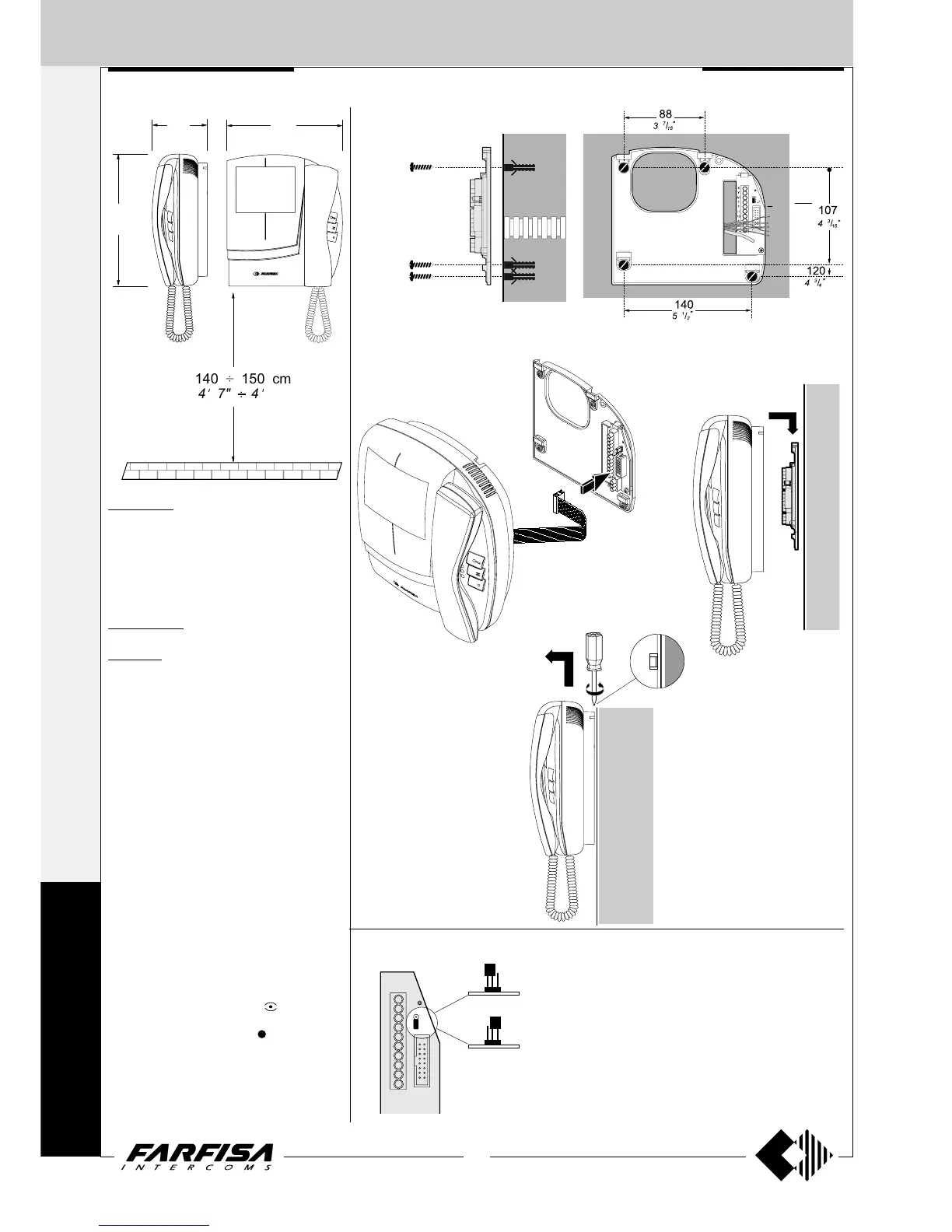

Plugging in of videointer-
com connectors to the ter-
minal boards of wall
bracket.
Fix the wall bracket by using 4 expansion plugs
Installation of videointer-
com onto the wall
bracket.
Choosing the private conversation
J1
3
2
1
X
Y
A1
F
F
H
10
4
P
PC
J1
J1
123
123
A
B
Dismounting of videointer-
com from the wall bracket.
INTERNAL STATIONS
1+1
INTERCOMS *
4+1
VIDEOINTERCOMS
C
O
M
P
A
C
T
COMPACT SERIES
KM8111W. White flat video intercom with
two buttons, one for control switch ON and one
for door lock release, audio-video privacy, elec-
tronic microphone, electronic modulated call
note, terminal board for the connection to the
wall-bracket. It can be installed on the wall (with
no built-in) by using the art.WB8111.
KM8111CW. Version with colour LCD.
WB8111. Wall-bracket for the KM8111W
and KM8111CW video intercoms. It includes a
terminal board for connection to the system.
Technical data
Power Supply 18÷24Vdc
Operating current 0.5A
Video tube (KM8111W) 4" FLAT CRT
Screen (KM8111CW) 4" LCD
Television standard (KM8111W) CCIR-625 lines
Television standard (KM8111CW) PAL
Horizontal frequency 15625Hz
Vertical frequency 50Hz
Bandwidth >5MHz
Video signal balanced
Starting up time (KM8111W) 2÷4 seconds
Starting up time (KM8111CW) 1 second
Operating temperature 0°÷+50°C
Max. permissible humidity 90%RH
Terminals
H Positive power supply input 18÷24Vdc-0.5A
F Ground
X and Y Video signal input
10 Call, audio reception/transmission, door re-
leasing
4 Control switch ON - button
A1 Floor call input
PC - P Service push-buttons
(max 0.3A)
7
"
16
/
15
201
11"
aaaaaaaaaaaaa
4
140 150 cm÷
47"
88
9
"
229
3
"
16
/
7
Installation
