4+1
INTERCOMS *
7+1
VIDEOINTERCOMS
2 9135 0
W1

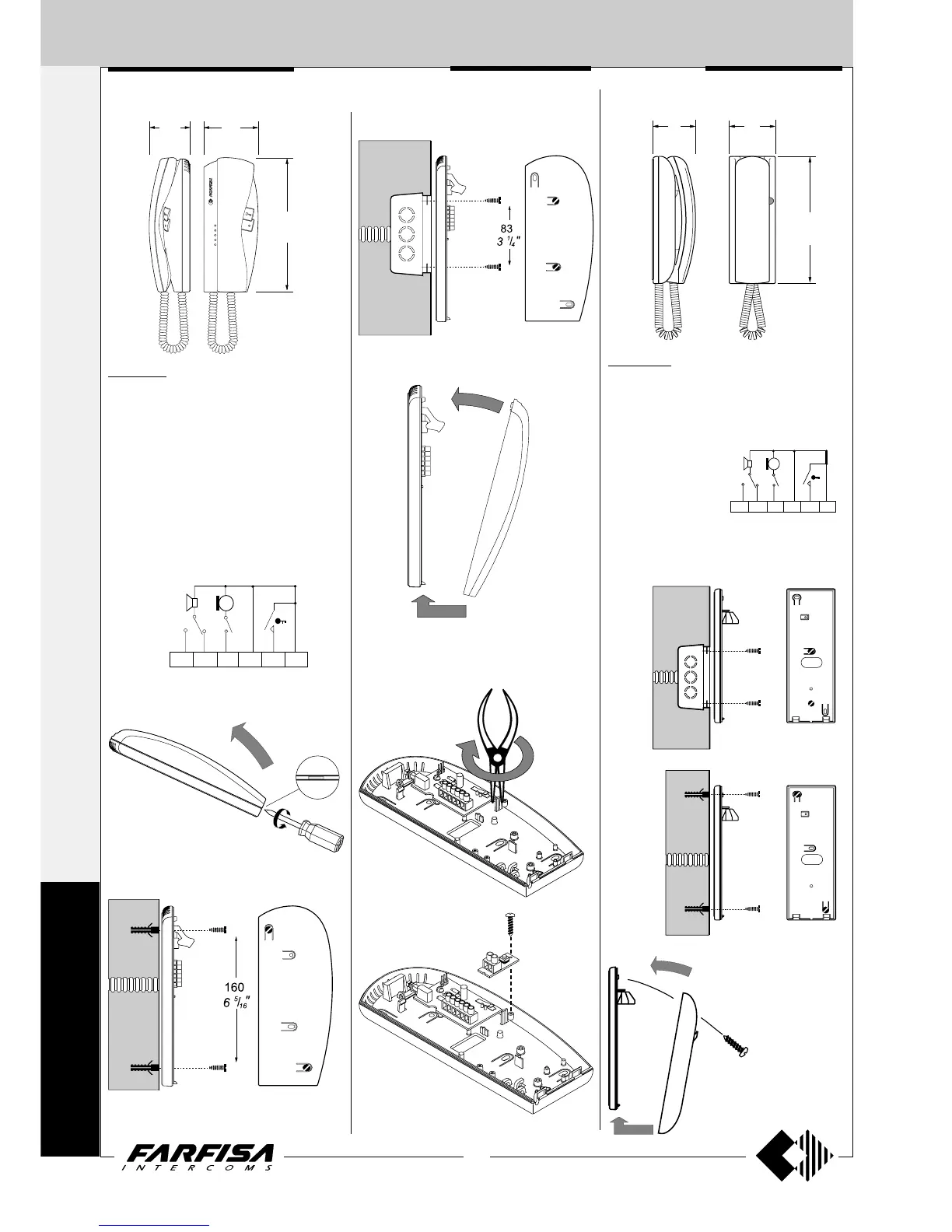

KM810W. White electronic intercom with 1
button, spiral cord, electronic microphone, and
possibility of installation of SR41, SM50E
modules and a ST701 additional push-button .
Wall-mountable with expansion plugs or wall
box.
Terminals
1 microphone
2 speaker
3 ground
5 door release button (max 1A)
7 common door release button (connected to
terminal 3 with jumper W1)
9 electronic call input
INTERCOM
2
16
/
9
65
3
"
8
/
3
86
8
"
16
/
5
211
"
ST701
Mounting of the additional button ST701.
3
"
16
/
1
2
8
"
"
16
16
/
/
13
1
77.572
214
291357
W1
PT510EW. White electronic intercom with 1
button, spiral cord, electronic microphone, and
possibility of installation of SR41 and SM50E
modules. Wall-mountable with expansion plugs
or wall box.
Terminals
1 microphone
2 speaker
3 ground
5 door release button
(max 1A)
7 common door release button (connected to
terminal 3 with jumper W1)
9 electronic call input
INTERCOM
PROJECT SERIESCOMPACT SERIES
