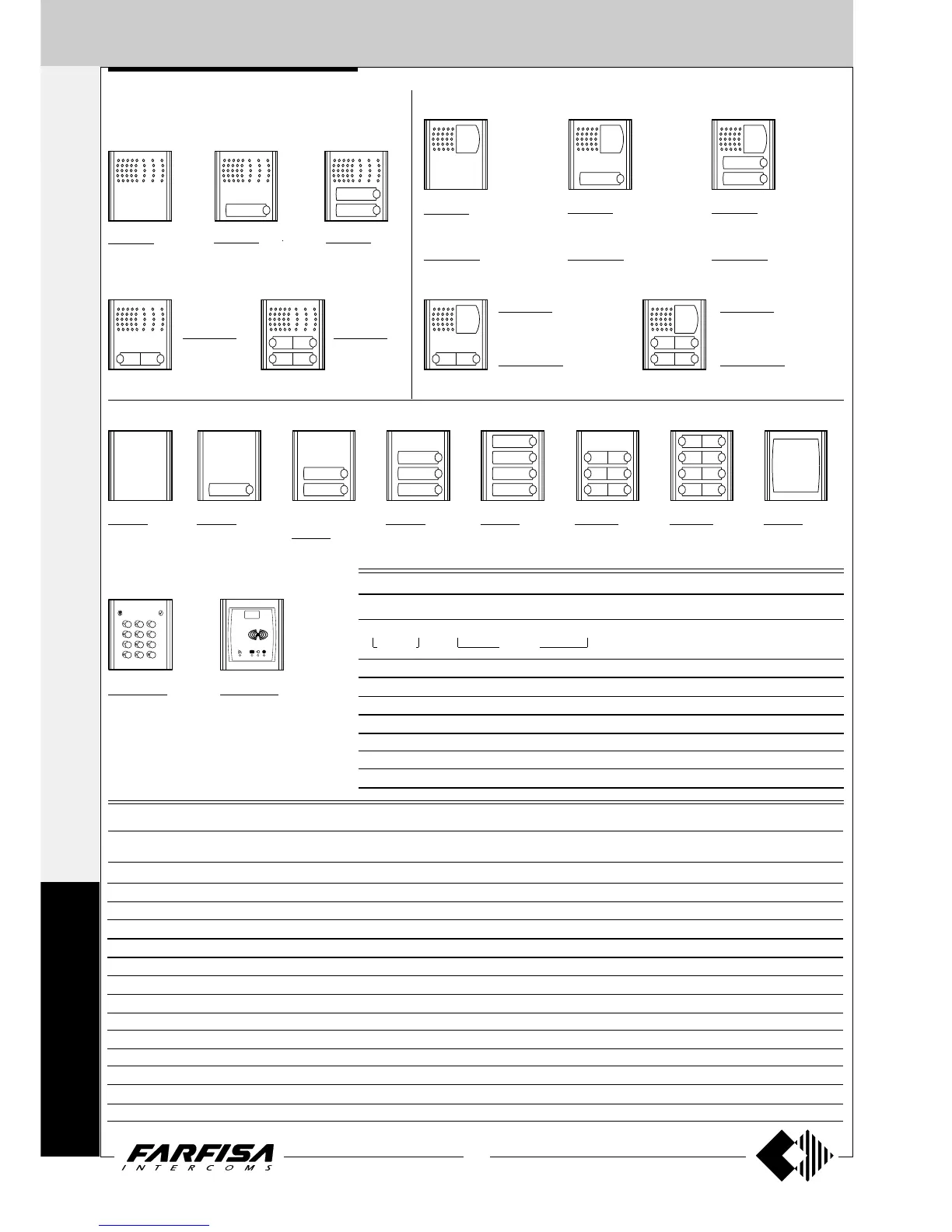

Push-button panel
EXTERNAL DOOR STATIONS
Modules with integrated door speaker
Modules: blank, buttons and number
PL10P
without call but-
tons
PL11P
with 1 call button
PL12P
with 2 call
buttons
PL 21
with 1 call
button
PL 22
with 2 call
buttons
PL 23
with 3 call
buttons
PL 24
with 4 call
buttons
PL226
with 6 call
buttons - 2 row
PL228
with 8 call
buttons - 2 row
PL40P
without call buttons and
with B\W camera
PL40PC
colour version
Video modules with integrated door speaker
PL41P
with 1 call button and B\W
camera
PL41PC
colour version
PL42P
with 2 call buttons and B\W
camera
PL42PC
colour version
FP 52PL
Proximity reader for
access control (see
characteristics on
page 116).
FC 52PL
Keypad module
for access control
(see characteris-
tics on page 116).
PL21 PL22 PL23 PL24 PL226 PL228 PL50
Technical characteristics and terminal boards of the button modules
AC power supply input for nameplate
Led (13Vac)
Ground
Call push-buttons common
Call push-button
Call push-button
Call push-button
Call push-button
Call push-buttons (C2 common)
AAAAAAA
-------
C C C C C/C2 C/C2
P1 P1 P1 P1 P1 P1
P2 P2 P2 P2 P2
P3 P3 P3 P3
P4 P4
P5÷P7 P5÷P8
(25mA) (50mA) (0.1A)
Access control modules
PL 50
number module
PL 20
blank module
PL10P PL11P PL12P PL122P PL124P PL40PC PL41PC PL42PC PL422PC PL424PC
111111111 1
222222222 2
333333333 3
444444444 4
--------- -
AAAAAAAAA A
C C C(C2) C(C2) C C C(C2) C(C2)
P1 P1 P1 P1 P1 P1 P1 P1
P2 P2 P2 P2
P3 P3-P4 P3 P3-P4
VVVVV V
MMMM M
HHHH H
L+ L+ L+ L+ L+ L+ L+
Technical characteristics and terminal boards of the Profilo modules
Reception audio line
Transmission audio line
Power supply input for electric door speaker (6÷12Vdc)
Audio ground
Ground for name-plate Led and service Led (13Vac)
AC or DC power supply input for name-plate Led (13Vac-dc)
Call push-buttons common
Call push-button
Call push-button
Call push-buttons (call push-buttons common C2)
Video signal output (coaxial cable)
Video ground (coaxial shield)
Positive voltage input for camera (18÷24Vdc)
Power supply input for service Led (13Vac-dc)
PL122P
with 2 call but-
tons - 2 row
PL422P
with 2 call buttons and
B\W camera - 2 row
PL422PC
colour version
PL424P
with 4 call buttons and
B\W camera - 2 row
PL424PC
colour version
PL124P
with 4 call but-
tons - 2 row
4+1
INTERCOMS *
7+1
VIDEOINTERCOMS
P
R
O
F
I
L
O
