125
(MT11 - Gb2012)
4+1
INTERCOMS *
7+1
VIDEOINTERCOMS
M
A
T
R
I
X

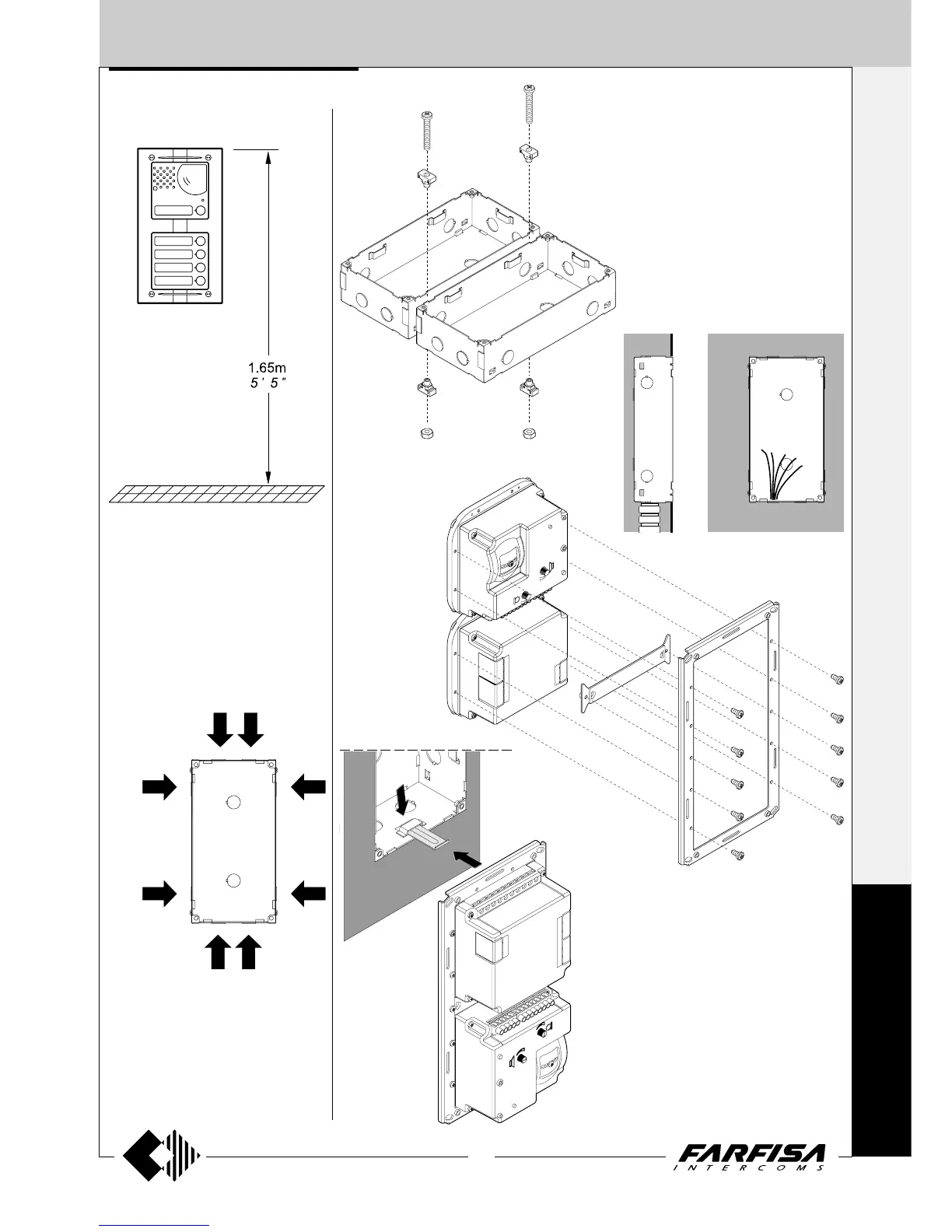

For easier connection to the electrical system, it is
recommended to insert the metal plate supplied
with the product in the back box opening, as
shown in the figure. The plate is used to hook the
frame with pre-assembled modules.
Leave the plate in the box to reuse it for
maintenance operations.
EXTERNAL DOOR STATIONS
Place the push-button panel back box at a
height of about 1.65m (5' 5") from the floor
keeping the front edges flush-mounted and
vertical to the finished plaster.
Position the camera in such a way that
sunlight or other direct or reflected light
sources with high intensity do not hit
the camera lens.
Insertion of spacers between back boxes. Spacers
and cable bushing (not supplied with the products)
must be inserted before brick work.
Openings for cables.
Mounting modules.
Flush mounting and cables placing.
INSTALLATION
