FARFISA INTERCOMS ECHOS - Page 170

168
(MT11 - Gb2012)
4+1
INTERCOMS *
7+1
VIDEOINTERCOMS
Table for choosing intercoms and accessories for the required type of installation
N. of intercom- Exhito Exhito Studio Compact Application dia-
municating EX320 EX301 SR41 EX310 EX301 SR41 ST720W ST701 SR41 KM810W ST 701 SR41 gram on page:
2 202202222222 178
3 333333363 178
4 484 4124 178
5 5 15 5 5 20 5 169
6 6 24 6 6 30 6 179
7 7 35 7 7 42 7 179
88488 *
Si 211L/5
E
X
H
I
T
O
S
T
U
D
I
O
* upon request
5 INTERCOMMUNICATING INTERCOMS CONNECTED TO 1 EXTERNAL DOOR
STATION WITH COMMON CALL. Call from external door station with alternate
current.
INTERNAL STATIONS
EXHITO series STUDIO series COMPACT series
... EX320 ... EX310 ... ST720W ... KM810W
... EX301 ... EX301 ... ST701 ... ST701
... SR41 ... SR41 ... SR41 ... SR41
EXTERNAL DOOR STATIONS
PROFILO series MATRIX series MODY series
1 PL71 1 MA71 1 MD71
1 PL81 1 MAS61 (
1
)1MD81
1 PL91 * 1 MA91 * 1 MD91 *
1 PL11P 1 MA11P 1 MD11
1 MD30
VARIOUS ARTICLES
1 PRS226E Power supply-switcher
1 PA ** Door release push-button (optional)
1 SE ** Electric door lock (12VAC-1A)
PA
SE
MD71
MD100
1
2
230V 127V
0
G
27
X
DA
PRS226E
C+
RP100
C
1
2
UP11
UP100
P2
P1

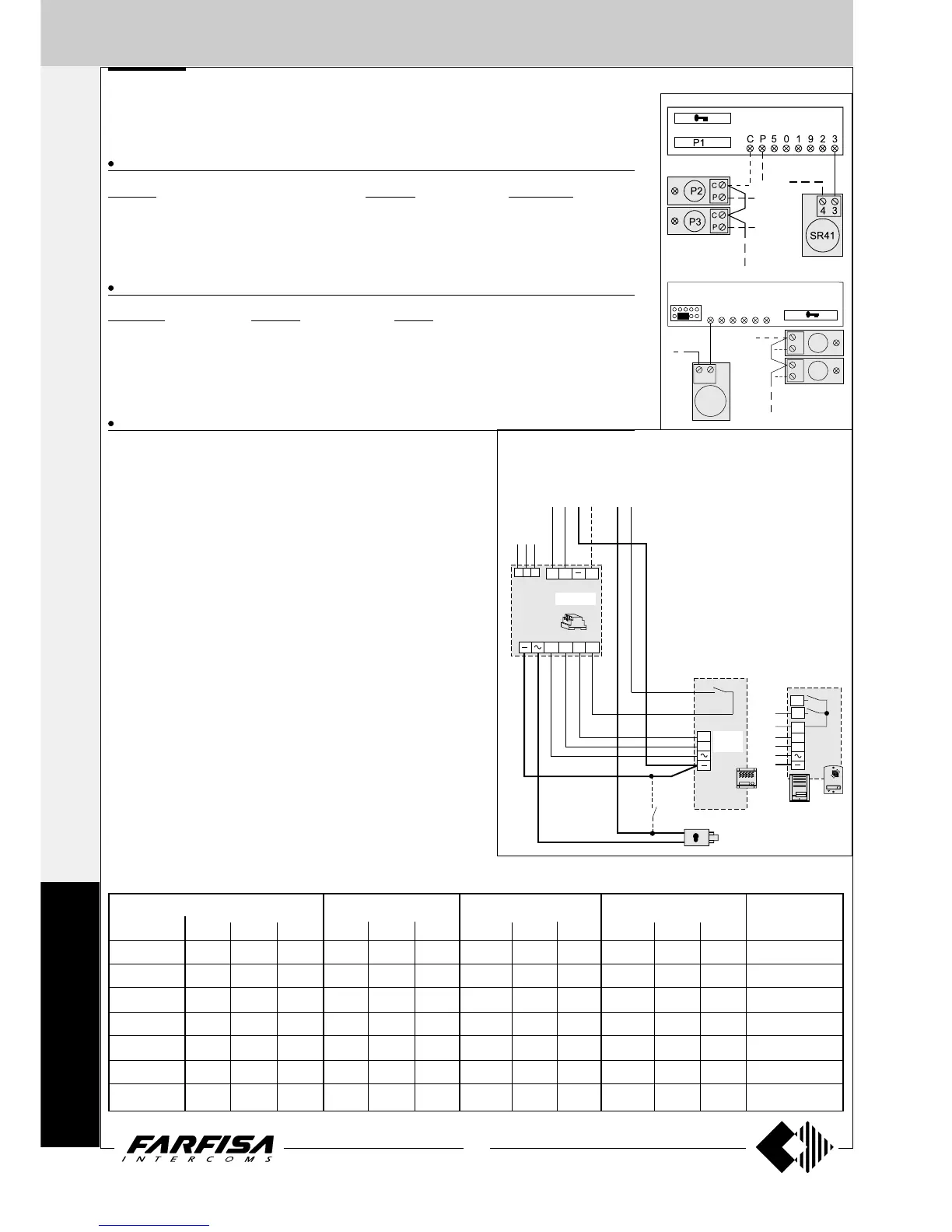

Application diagram
When using MD100, RP100, UP11 and UP100 amplified exter-
nal door stations place this diagram on the diagram on page 169
and line it up with the riser.
Warning.
- In the external door stations RP100
cut the jumper W1.
- In the external door stations UP do
not connect the yellow wire and
insulate it.
- For alternate current wires refer to
note 6 of the installation instruc-
tions on page 146.
51923
0
P1
P2
C
P
C
P
JP2
43
SR41
ST 720
... Refers to number of users (see table on the bottom of this page).
(
1
) Or MA61.
* Rain shelters are used instead of back boxes and hood covers.
** Articles not supplied by ACI Farfisa.
Working instructions. See page 183.
Notes
- Do not forget to connect terminals C of the additional buttons and install the
SR41 electronic buzzer in each intercom.
- For the connection of name-plate lamps, read notes 6 and 7 of the
installation instructions on page 146.
- For wires dimensioning refer to installation instructions and table on page
146.
