192
(MT11 - Gb2012)
Si 41MO/3
4+1
INTERCOMS *
7+1
VIDEOINTERCOMS
MIXED INTERCOM AND VIDEO INTERCOM SYSTEM CONNECTED TO ONE EXTERNAL DOOR STATION
VIDEOINTERCOMS
ECHOS series EXHITO series COMPACT series STUDIO series
... EH9100CT/CW ... EX3100C ... KM8100W ... ST7100CW
EH9160CT/CW EX3160C KM8600W ST7100W
... 9083 EX3160 KM8800W ... ST720W
... WA9100T/W ... WB3160 ... WB8600 ... WB7100
... TA9160 ... TA3160 ... 8083 ... WB700
... TA7100
... TA700
INTERCOMS
EXHITO series EXHITO series COMPACT series STUDIO series
... EX310 ... EX320 ... KM810W ... ST720W
... SM50E ... SM50E ... SM50E ... SM50E
EXTERNAL DOOR STATIONS
PROFILO series MATRIX series MODY series
... PL71÷PL73 ... MA71÷MA73 ... MD72÷MD74
1 PL81÷PL89 ... MAS61÷MAS63 (
1
)1 MD82÷MD812
1 PL91÷PL99 * 1 MA91÷MA93 * 1 MD92÷MD912 *
1 PL40PC÷PL42PC 1 MAS42C-MAS43C 1 MD10÷MD124
PL40P÷PL42P MAS42-MAS43 1 MD41
... PL21÷PL228 ... MAS22-MAS24 1 MD30
... PL20, PL50 ... MAS20 ... MD21÷MD228
... MD20, MD50
VARIOUS ARTICLES
... DV2-DV4 Video distributors
1 1281 Power supply
1 1282E Timer
1 PA ** Door release button (optional)
1 SE ** Electric door lock (12Vac-1A)
... Refers to number of users.
(
1
) Or MA61÷MA63.
* The rain shelter is used in the place of the back box and hood cover.
** Articles not supplied by ACI Farfisa.
Working instructions. See page 218.
Notes
- If the control switching ON is necessary, connect terminal 4 of the timer
(dashed wire).
- For audio compatibility we do not suggest to connect door stations
MODY series with internal devices ECHOS series.
- For one-way systems connect the coaxial cable to the monitor bracket
directly, without using the video distributor.
- For the connection of name plate lamps read notes 6, 7 and 8 of the
installation instructions on page 146.
- For wires dimensioning and video connection refer to the installation
instructions and table on pages 146÷148.
- For other types of push-button panels see the general catalogue.
- By using MD100 and MD200 amplified external door stations, we
recommend to place schematic on page 188 on the other on page 193.

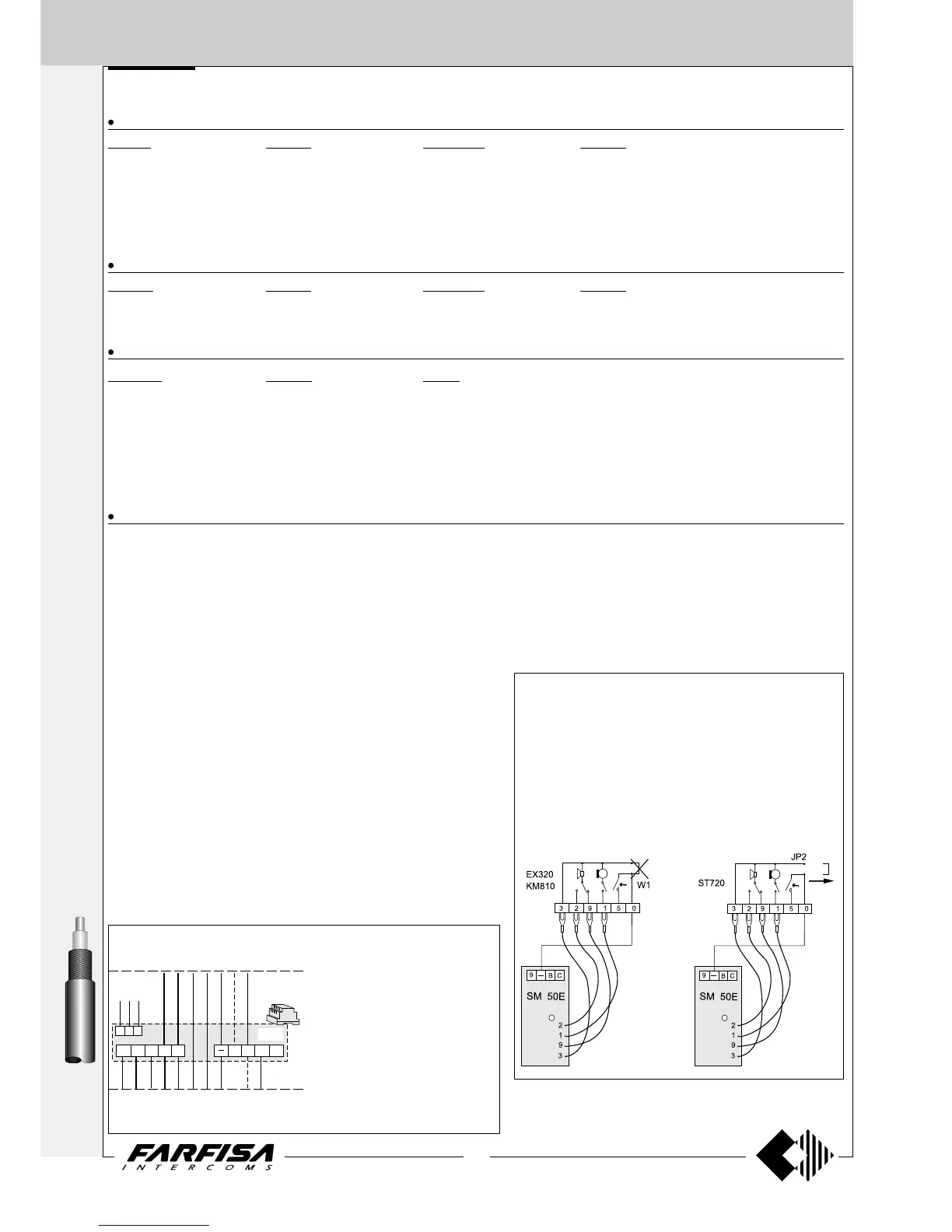

Private conversation
All the videointercoms have the privacy function which allows
only the called videointercom to talk with the door station. To
guarantee the same function to the user with a simple intercom
device it is necessary to install inside the intercom the privacy
module SM50E and:
-(ST 720) - remove the mobile jumper inside the connector
JP2
-(EX310, EX320 and KM 810) - cut the jumper W1
-connect terminal 0 of the intercom to terminal - (minus) of the
SM50E module.
Connection of 1281E power supply-timer instead of 1281 plus
1282E.
By adding 1281E to the schematics
on page 193 instead of 1281 plus
1282E, the system working will
modify as follows:
- switching-OFF at the end of the
timing only
- no control switch-ON interruption
with the video intercoms during
external audio-video connection. If
the service is necessary, add 1471
relay in order to interrupt conduc-
tor 4.
230V
127V
0
1281E
X
S
H
F
C+
5
A
4
3+
