56
(MT11 - Gb2012)
Si 22MR/1
INTERCOMS CONNECTED TO 2 AUTOMATICALLY SWITCHED EXTERNAL DOOR STATIONS
EXTERNAL DOOR STATIONS
AGORA' series PROFILO series MATRIX series MODY series
2 AG100A ... PL71÷PL73 ... MA71÷MA73 ... MD71÷MD74
... AG100T 2 PL81÷PL89 2 MAS61÷MAS63 (
1
)2MD84÷MD812
... AG20 2 PL91÷PL99 * 2 MA91÷MA93 * 2 MD94÷MD912 *
... AG21 2 PL10PED÷PL12PED 2 MAS10PED÷MAS12PED 2 MD10ED÷MD12ED
... AG222 ... PL21÷PL228 ... MAS22, MAS24 ... MD21÷MD228
2 AG30ED ... PL20, PL50 ... MAS20 ... MD20, MD50
... 241DMA ... 241DMA ... 241D
INTERNAL STATIONS
... EX311 Exhito series with 2 call buttons
... EX321 Exhito series modular intercom
... KM811W Compact series intercom with 1 call button
... PT511EW Project series intercom with 1 call button
VARIOUS ARTICLES
1 1473 Exchanger
1 PRS210ED Transformer with electronic ringing generator
1 PRS210 Transformer
2 PA ** Door release push-button (optional)
2 SE ** Electric door lock (12VAC-1A)
... Refers to number of users.
(
1
) Or MA61÷MA63.
* Rain shelters are used instead of back boxes and hood covers.
** Articles not supplied by ACI Farfisa.
Working instructions. See page 52.
Notes
- For the connection of name-plate lamps, read notes 6, 7 and 8 of the installation instructions on page 50.
- For wires dimensioning refer to the installation recommendations and table on page 50.
Install the privacy module.
In all SM50 cut the resistance R1 and in the intercom
the jumper W1.
1+1
INTERCOMS *
4+1
VIDEOINTERCOMS
Agorà door stations

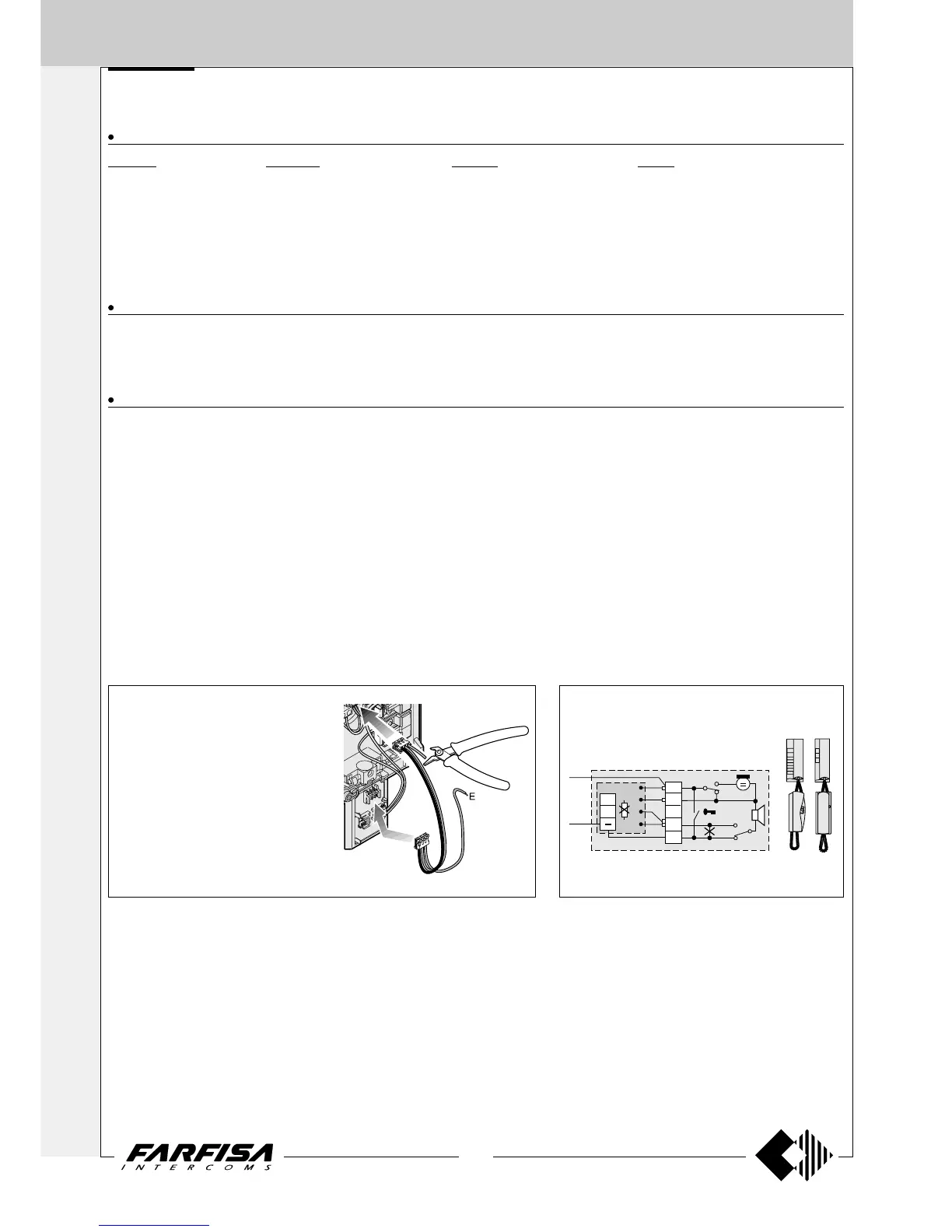

Attention. To create the terminal "E" in the
door stations AG100A it is necessary to cut
the red wire which connects the door speaker
amplifier AG30ED to the backlighting board
with diodes and LED’s (see figure).
The terminal "E" of the entrance “a” must
remain disconnected and insulated, on the
contrary that of entrance “b” must be
connected to the terminals "E" of additional
AG100T’s (if any).
If privacy feature is requested, SM50
module must be installed inside all the
intercoms.
