60
(MT11 - Gb2012)
1+1
INTERCOMS *
4+1
VIDEOINTERCOMS
Si 26MR/2
ONE-WAY INTERCOM SYSTEM WITH SECONDARY DOOR STATIONS AND 1 MAIN COMMON DOOR STATION
Main DOOR STATION
AGORA' series PROFILO series MATRIX series MODY series
1 AG100A ... PL71÷PL73 ... MA71÷MA73 ... MD71÷MD74
... AG100T 1 PL81÷PL89 1 MAS61÷MAS63 (
1
)1MD81÷MD812
... AG20 1 PL91÷PL99 * 1 MA91÷MA93 * 1 MD91÷MD912 *
... AG21 1 PL10PED÷PL12PED 1 MAS10PED÷MAS12PED 1 MD10ED÷MD12ED
... AG222 ... PL21÷PL228 ... MAS22, MAS24 ... MD21÷MD228
1 AG30ED ... PL20, PL50 ... MAS20 ... MD20, MD50
Secondary DOOR STATIONS
AGORA' series PROFILO series MATRIX series MODY series
X AG100A X PL71 X MA71 X MD71
X AG21 X PL81 X MAS61 (
1
)XMD81
3xX AG20 X PL91 * X MA91 * X MD91 *
X AG30ED X PL11PED X MAS11PED X MD11ED
X 241DMA X 241DMA X 241D
INTERNAL STATIONS
... EX311 Exhito series with 2 call buttons
... EX321 Exhito series modular intercom
... KM811W Compact series intercom with 1 call button
... PT511EW Project series intercom with 1 call button
VARIOUS ARTICLES
X 1473 Exchanger
X PRS210ED Transformer with electronic ringing generator
1 PRS210 Transformer
1+X PA ** Door release push-button (optional)
1+X SE ** Electric door lock (12VAC-1A)
X D ** 100V-1A diode (type 1N4007)
... Refers to number of users.
X Refers to the number of stairways.
(
1
) Or MA61÷MA63.
* Rain shelters are used instead of back boxes and hood covers.
** Articles not supplied by ACI Farfisa.
Notes
- For the connection of name-plate lamps, read notes 6, 7 and 8 of the
installation instructions on page 50.
- For wires dimensioning refer to the installation recommendations and
table on page 50.
Working instructions.
As the basic system described on page 52, with the following variations:
- The audio functions and door lock opening are automatically switched
to the door station which has made the call and remain in this state until
a call from another entrance is received.
- Services to secondary door stations are independent and can be
operated at the same time.

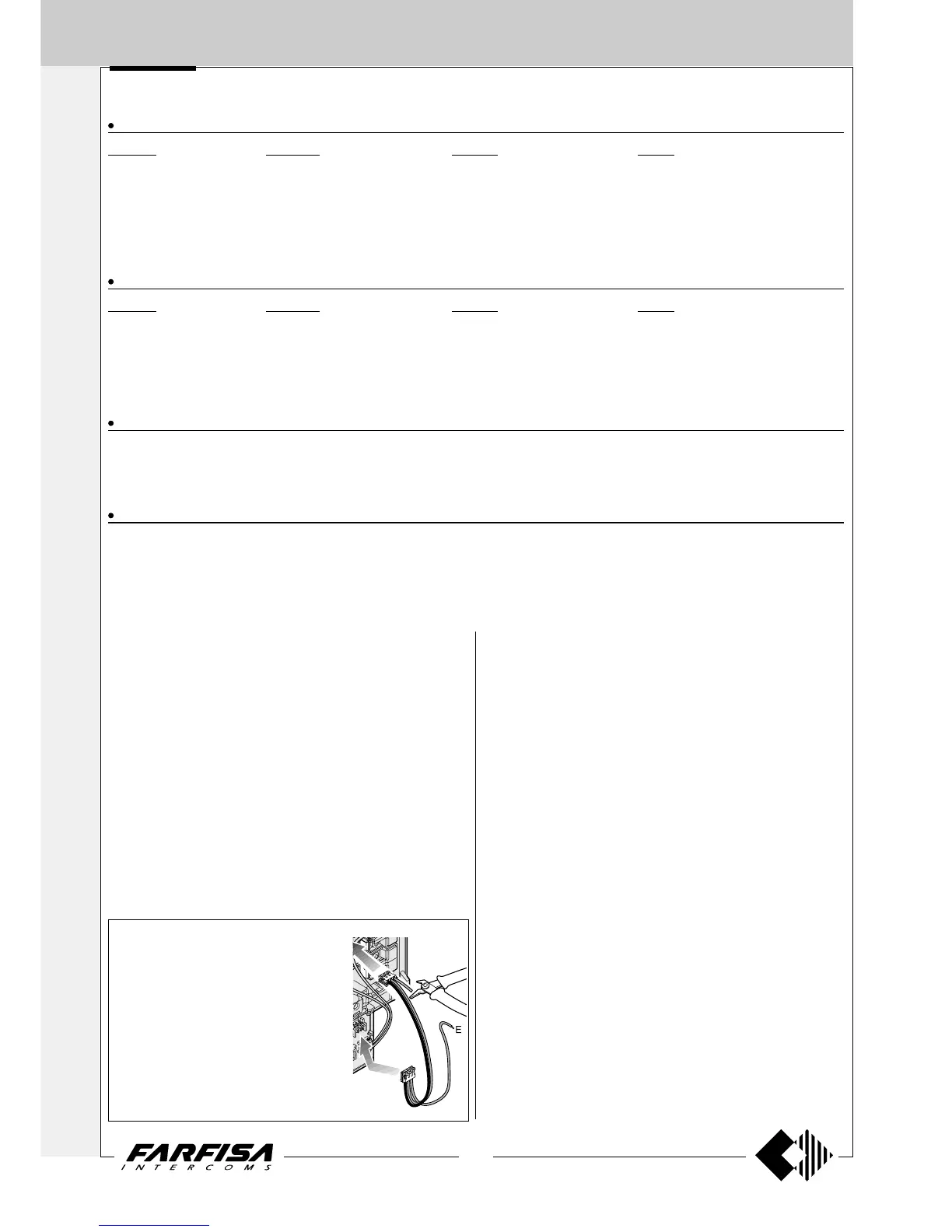

Agorà door stations
Attention. In the door stations AG100A it is
necessary to cut and insulate the red wire
which connects the door speaker amplifier
AG30ED to the backlighting board with diodes
and LED’s (see figure).
