66
(MT11 - Gb2012)
In the multi-apartment diagram are shown 3 different examples of connection for the intercommunicating
service.
1+1
INTERCOMS *
4+1
VIDEOINTERCOMS
Si 214R/1
MULTI-WAY INTERCOM SYSTEM WITH A DOOR STATION AND SOME APARTMENTS WITH INTERCOMMUNI-
CATING SERVICE
EXTERNAL DOOR STATIONS
AGORA' series PROFILO series MATRIX series MODY series
1 AG100A ... PL71÷PL73 ... MA71÷MA73 ... MD71÷MD74
... AG100T 1 PL81÷PL89 1 MAS61÷MAS63 (
1
)1MD81÷MD812
... AG20 1 PL91÷PL99 * 1 MA91÷MA93 * 1 MD91÷MD912 *
... AG21 1 PL10PED÷PL12PED 1 MAS10PED÷MAS12PED 1 MD10ED÷MD12ED
... AG222 ... PL21÷PL228 ... MAS22, MAS24 ... MD21÷MD228
1 AG30ED ... PL20, PL50 ... MAS20 ... MD20, MD50
... 241DMA ... 241DMA ... 241D
INTERNAL STATIONS WITHOUT INTERCOMMUNICATING SERVICE (for the details of the internal intercommunicating devices which can
be installed see the list on the bottom of this page)
... EX311 Exhito series with 2 call buttons
... EX321 Exhito series modular intercom
... KM811W Compact series intercom with 1 call button
... PT511EW Project series intercom with 1 call button
VARIOUS ARTICLES (for all the specific devices to be installed in the intercommunicating apartments see the detailed list on the bottom of
this page)
1 PRS210ED Transformer with electronic ringing generator
1 PA ** Door release push-button (optional)
1 SE ** Electric door lock (12VAC-1A)
(A) Intercommunicating service between 2
apartments each of them with 2 parallel
intercoms (Exhito and/or Compact series)
Exhito Compact
4 EX311 4 KM811W
EX321 1 1443ED
1 1443ED 1 PRS210
1 PRS210 4 ST701
Notes:
- In the art. 1443ED move the jumper J1 from the
position 2-3 to the position 1-2.
- In each of the 2 apartments it is be possible to
connect at maximum 3 intercoms in parallel, but
the intercommunicating calls are between apart-
ments (and not among the intercoms in the same
apartment).
(B) Intercommunicating service in the
same apartment between 2 intercoms
(Exhito and/or Compact series)
Exhito Compact
2 EX311 2 KM811W
EX321 2 ST701
1 1443ED 1 1443ED
1 PRS210 1 PRS210
Notes:
- Verify that in the art. 1443ED the jumper J1
has been set in the position 2-3.
- To make an intercommunicating call, pick
up the handset, be sure that there are not
any other communication in progress, and
press the push-button 1. The called inter-
com, to receive the ringing tone, must have
the handset correctly hooked in its place
(not unhooked).
(C) Intercommunicating service in the
same apartment with 3 intercoms
Exhito series
Exhito
3 EX311 3 EX321
3 EX301 3 EX301
1 1443ED 1 1443ED
1 PRS210 1 PRS210
Notes:
- Verify that in the art. 1443ED the jumper J1
has been set in the position 2-3.
- To make an intercommunicating call, pick
up the handset, be sure that there are not any
other communication in progress, and press
the push-button 1 or 2. The called intercom,
to receive the ringing tone, must have the
handset correctly hooked in its place (not
unhooked).

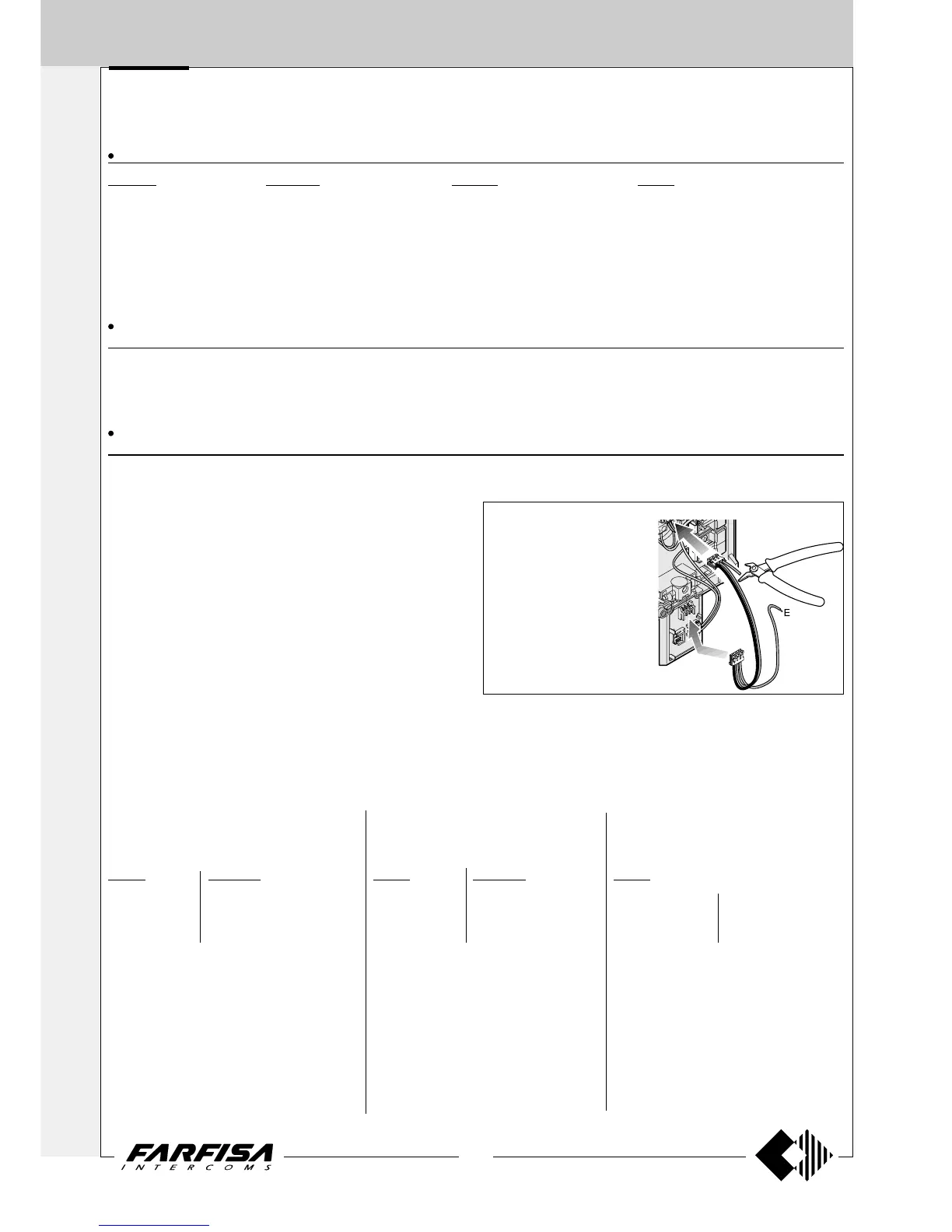

Agorà door station
Attention. In the door station
AG100A of the secondary en-
trances create the terminal "E"
cutting the red wire which con-
nects the door speaker
AG30ED to the backlighting
board (see figure).
... Refers to number of users.
(
1
) Or MA61÷MA63.
* Rain shelters are used instead of back boxes and hood covers.
** Articles not supplied by ACI Farfisa.
Working instructions. See page 52.
Notes
- For the connection of name-plate lamps, read notes 6, 7 and 8 of the
installation instructions on page 50.
- For wires dimensioning refer to the installation recommendations and
table on page 50.
