80
(MT11 - Gb2012)
1+1
INTERCOMS *
4+1
VIDEOINTERCOMS
Si 46MR/9
ONE-WAY VIDEOINTERCOM SYSTEM WITH SECONDARY VIDEO STATIONS AND 1 MAIN COMMON VIDEO
STATION
MAIN DOOR STATION
AGORA' series PROFILO series MATRIX series MODY series
1 AG100V ... PL71÷PL73 ... MA71÷MA73 ... MD72÷MD74
... AG100T 1 PL81÷PL89 ... MAS61÷MAS63 (
1
)1MD82÷MD812
... AG20 1 PL91÷PL99 * 1 MA91÷MA93 * 1 MD92÷MD912 *
... AG21 1 PL40PCED÷PL42PCED 1 MAS43CED 1 MD10ED÷MD12ED
... AG222 PL40PED÷PL42PED MAS43ED 1 MD41D
1 AG40CED ... PL21÷PL228 ... MAS22, MAS24 ... MD21÷MD228
... PL20, PL50 ... MAS20 ... MD20, MD50
... 241DMA ... 241DMA ... 241D
SECONDARY DOOR STATIONS
AGORA' series PROFILO series MATRIX series MODY series
X AG100V X PL71 X MA71 X MD72
X AG21 X PL81 X MAS61 (
1
)XMD81
X AG20 X PL91 * X MA91 * X MD91 *
X AG40ED X PL41PCED X MAS43CED X MD41D
PL41PED MAS43ED X MD11ED
INTERNAL STATIONS
ECHOS series EXHITO series COMPACT series
... EH9161CT ... EX3100C ... KM8111CW
... EH9161CW ... EX3160C ... KM8111W
... 9083 ... EX3160 ... WB8111
... WA9100T-W ... WB3161
... TA9160 ... TA3160
VARIOUS ARTICLES
X 1473 Exchanger
1+x 1181E Timed power-supply
1+... DV2D-DV4D Video distributors
1+X PA ** Door release push-button (optional)
1+X SE ** Electric door lock (12VAC-1A)
X D ** 100V-1A diode (type 1N4007)
... Refers to number of users.
X Refers to number of stairways.
(
1
) Or MA61÷MA63.
* Rain shelters are used instead of back boxes and hood covers.
** Articles not supplied by ACI Farfisa.
Notes
- For audio compatibility we do not suggest to connect door stations
MODY series with internal devices ECHOS series.
- For the connection of name-plate lamps, read notes 6, 7 and 8 of the
installation instructions on page 50.
- For wires dimensioning and video connection refer to the installation
instructions and table on pages 50 and 51.
Working instructions.
As the basic system described on page 52, with the following variations:
- The audio-video functions and door lock opening are automatically
switched to the door station which has made the call and remain in this
state until a call from another entrance is received.
- Services to secondary door stations are independent and can be
operated at the same time.
Agorà door stations

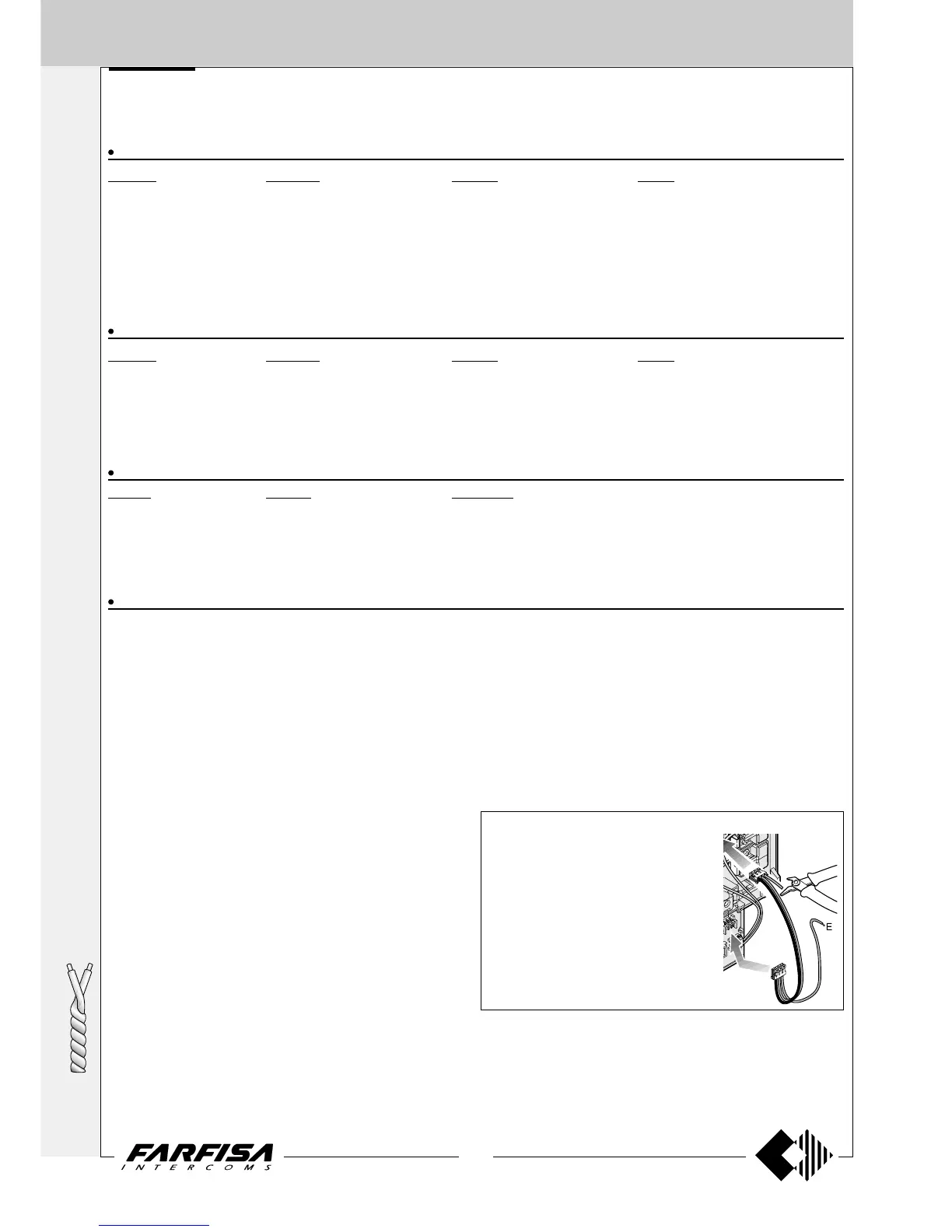

Attention. In the door station AG100V it is
necessary to cut and insulate the red wire
which connects the door speaker amplifier
AG40CED to the backlighting board with
diodes and LED’s (see figure).
