82
(MT11 - Gb2012)
1+1
INTERCOMS *
4+1
VIDEOINTERCOMS
Si 46MR/15
ONE-WAY VIDEOINTERCOM SYSTEM WITH SECONDARY DOOR STATIONS ONLY AUDIO AND 1 MAIN COM-
MON VIDEO STATION
MAIN DOOR STATION
AGORA' series PROFILO series MATRIX series MODY series
1 AG100V ... PL71÷PL73 ... MA71÷MA73 ... MD71÷MD74
... AG100T 1 PL81÷PL89 ... MAS61÷MAS63 (
1
)1MD81÷MD812
... AG20 1 PL91÷PL99 * 1 MA91÷MA93 * 1 MD91÷MD912 *
... AG21 1 PL40PCED÷PL42PCED 1 MAS43CED 1 MD10ED÷MD12ED
... AG222 PL40PED÷PL42PED MAS43ED 1 MD41D
1 AG40CED ... PL21÷PL228 ... MAS22, MAS24 ... MD21÷MD228
... PL20, PL50 ... MAS20 ... MD20, MD50
... 241DMA ... 241DMA ... 241D
SECONDARY DOOR STATIONS
AGORA' series PROFILO series MATRIX series MODY series
X AG100A X PL71 X MA71 X MD71
X AG21 X PL81 X MAS61 (
1
)XMD81
3xX AG20 X PL91 * X MA91 * X MD91 *
X AG30ED X PL11PED X MAS11PED X MD11ED
INTERNAL STATIONS
ECHOS series EXHITO series COMPACT series
... EH9161CT ... EX3100C ... KM8111CW
... EH9161CW ... EX3160C ... KM8111W
... 9083 ... EX3160 ... WB8111
... WA9100T-W ... WB3161
... TA9160 ... TA3160
VARIOUS ARTICLES
X 1473 Exchanger
1+x 1181E Timed power-supply
1+... DV2D-DV4D Video distributors
1+X PA ** Door release push-button (optional)
1+X SE ** Electric door lock (12VAC-1A)
X D ** 100V-1A diode (type 1N4007)
... Refers to number of users.
X Refers to number of stairways.
(
1
) Or MA61÷MA63.
* Rain shelters are used instead of back boxes and hood covers.
** Articles not supplied by ACI Farfisa.
Notes
- For audio compatibility we do not suggest to connect door stations
MODY series with internal devices ECHOS series.
- For the connection of name-plate lamps, read notes 6, 7 and 8 of the
installation instructions on page 50.
- For wires dimensioning and video connection refer to the installation
instructions and table on pages 50 and 51.
Working instructions.
As the basic system described on page 52, with the following variations:
- The audio-video functions and door lock opening are automatically
switched to the door station which has made the call and remain in this
state until a call from another entrance is received.
- Services to secondary door stations are independent and can be
operated at the same time.
Agorà door stations

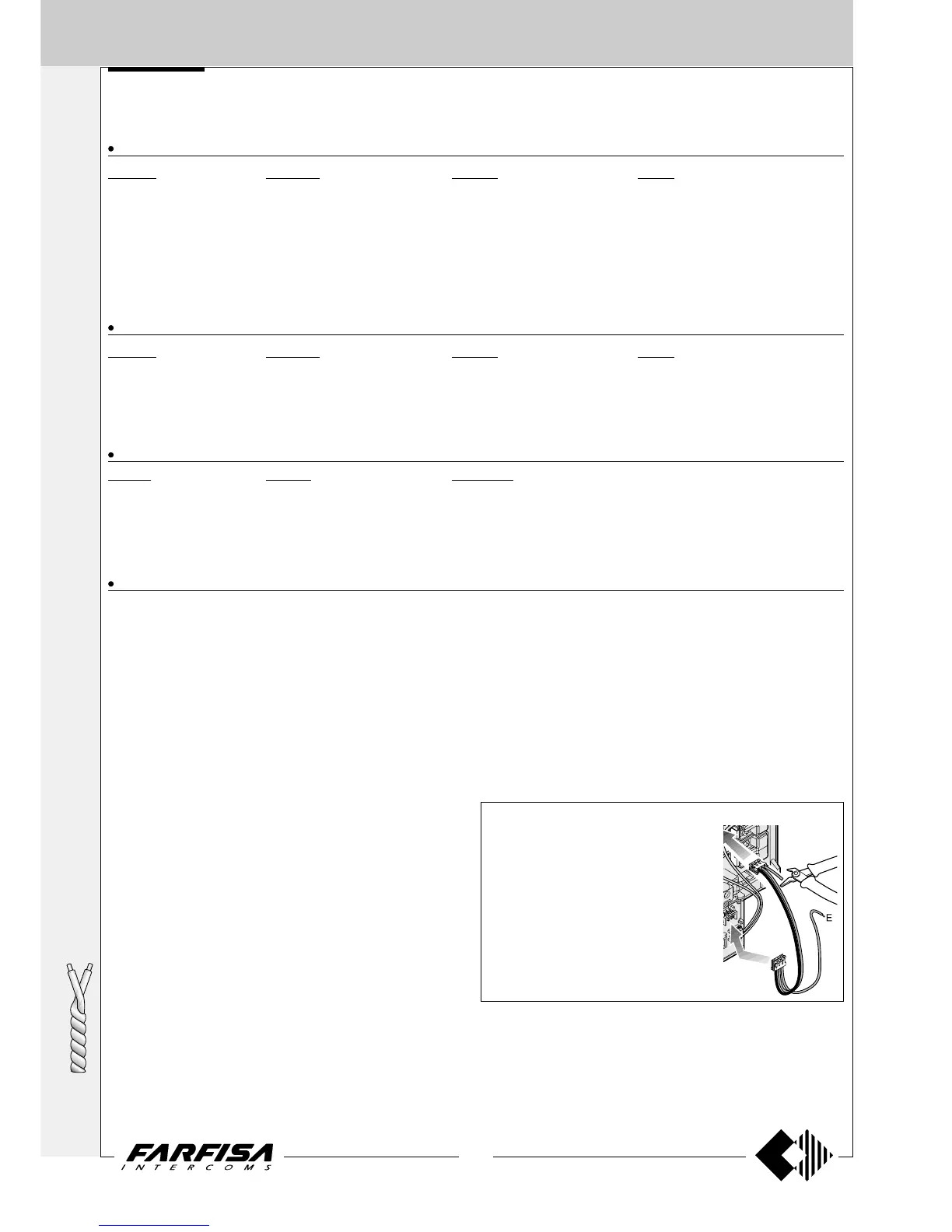

Attention. In the door stations AG100A and
AG100V it is necessary to cut and insulate
the red wire which connects the door speaker
amplifier AG30ED or AG40CED to the
backlighting board with diodes and LED’s
(see figure).
