Fasep 2000 srl Rev. 1.3
Balatron B110, B210: User’s Manual 15 July 2013
2-2
2 INSTALLATION

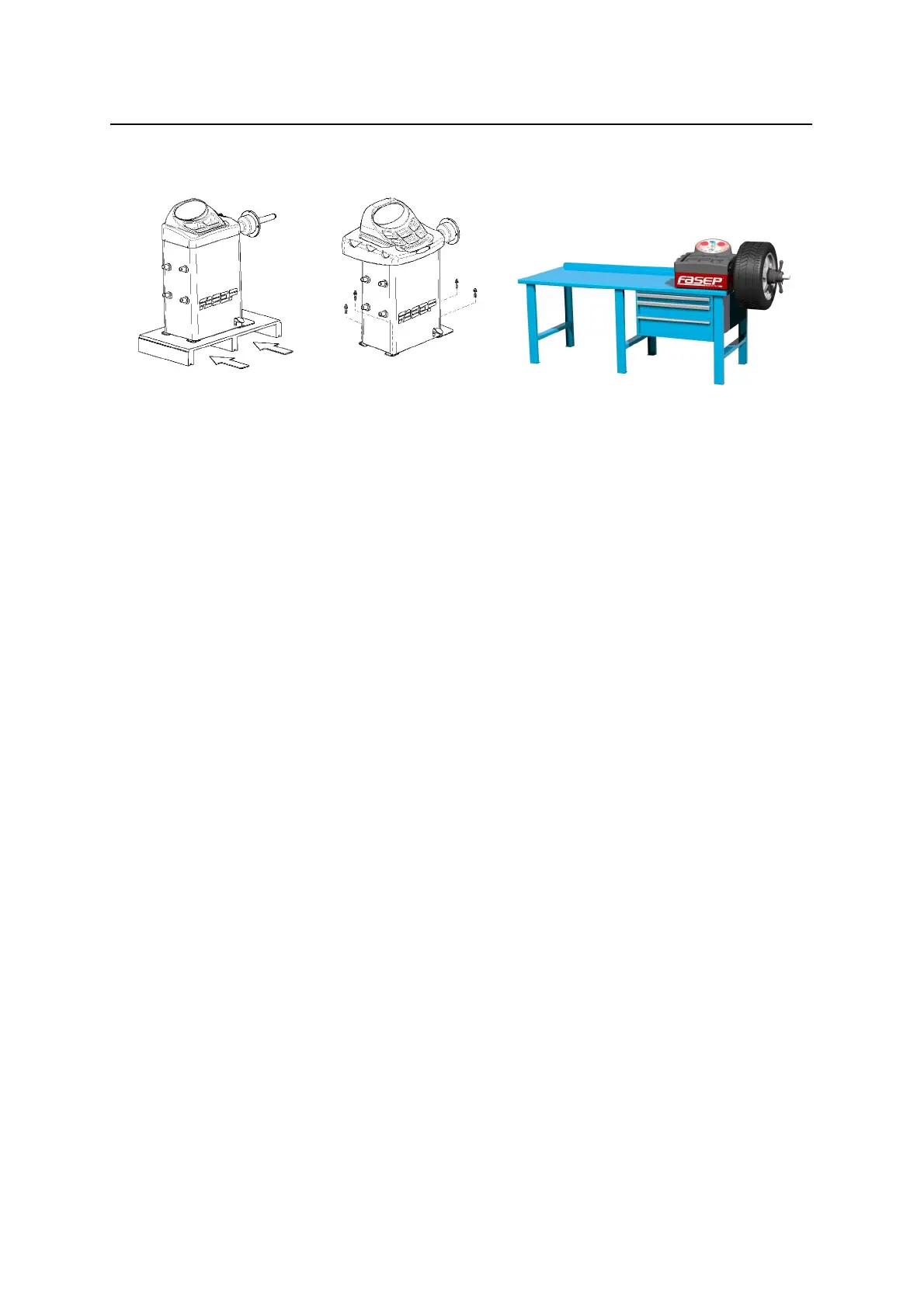

2.1 Moving the unit
I WARNING When the unit has to be moved: never lift balancer by motor shaft or by neighborhood of it.
2.2 Assembling the unit
For ease of transportation, the wheel balancer might be disassembled into units. If necessary, assembling instruction are
provided within each package.
2.3 Installation
The wheel balancer must be installed on a firm and level ground.
! CAUTION The machine must be secured to the floor. Using four holes in the base and anchor bolts provided.
2.4 Electrical Hookup
! CAUTION Failure to follow these instructions can results in damage to unit or create an electrical hazard and will
void warranty.
2.4.1 Electrical hookup is to be provided by a qualified electrician.
2.4.2 A fusible wall-mounted switchbox is required at the installation site. This switch should provide on-off control and overload
protection for your wheel balancer only. The switchbox should be fused with time-delay fuse(s) in accordance with the power
rating specified on your wheel balancer.
2.4.3 Electrical connection of the machine should be by plug connectors.
2.4.4 The balancer must be effectively connected to ground. The electric cord is regularly provided with a ground terminal.
2.4.5 Make sure that Power Rate Specifications for your wheel balancer (refer to nameplate on the wheel balancer) comply with
those provided by the external power source.
! CAUTION After electrical hookup has been performed unit is ready to operate. Always observe pertinent safety
precautions when operating the unit (see Appendix tables for an overview of relevant Safety
requirement).
The unit is operated with 12V battery,
Wall mount battery charger is provided.
