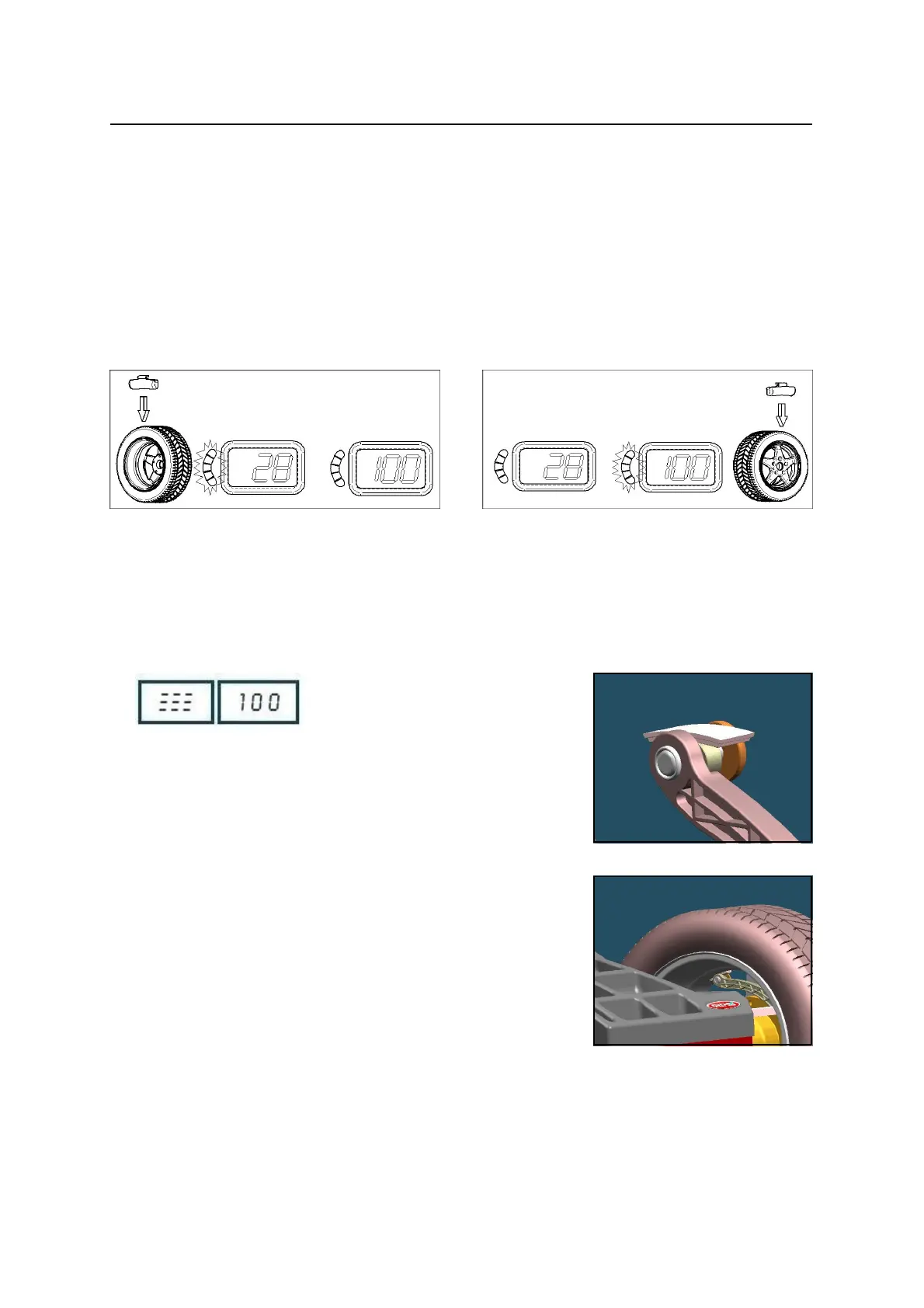

5.4 Detecting and correcting unbalance
5.4.1 After setting wheel dimensions, spin the wheel till GOOD appears on the display..
G NOTE: GOOD = correct speed
ACCEL = accelerate (speed is too low)
DECEL = decelerate (speed is too high).
5.4.2 At the end of the spin, stop the wheel. The display will show the weight position and weight requirement to correct the wheel’s
umbalance.
5.4.3 If unbalance shown is 0, press <FINE> to show residual unbalance.
G NOTE OPT light blinking after the measurement indicates that static unbalance is exceeding more than 20grs.
Optimization procedure is suggested.
5.5 How to apply the weight using ALU-SE indicator (Option)
Place the weight (Fig. 34).
Turn the wheel to the position ( Fig. 32,
Fig. 33).
Move the rod until /// appears on the
display ( picture on the left).
Apply the weight ( Fig. 36).
