FAY-003
2-14
8. LVDS/EDP connector (30-pin LVDSEDP)
This connector is for an internal LVDS or embedded DisplayPort connection.
9. BIOS programming connector for Aaeon (8-pin SPI1)
UsethisconnectortoashtheBIOSROM.
10. Digital I/O connector (10-pin DIO)
Thisconnectorincludes8I/Olines(In/Outprogrammable).AlloftheDigital
I/OlinesareprogrammableandeachI/Opincanbeindividuallyprogrammed
tosupportvariousdevices.
FAY-003

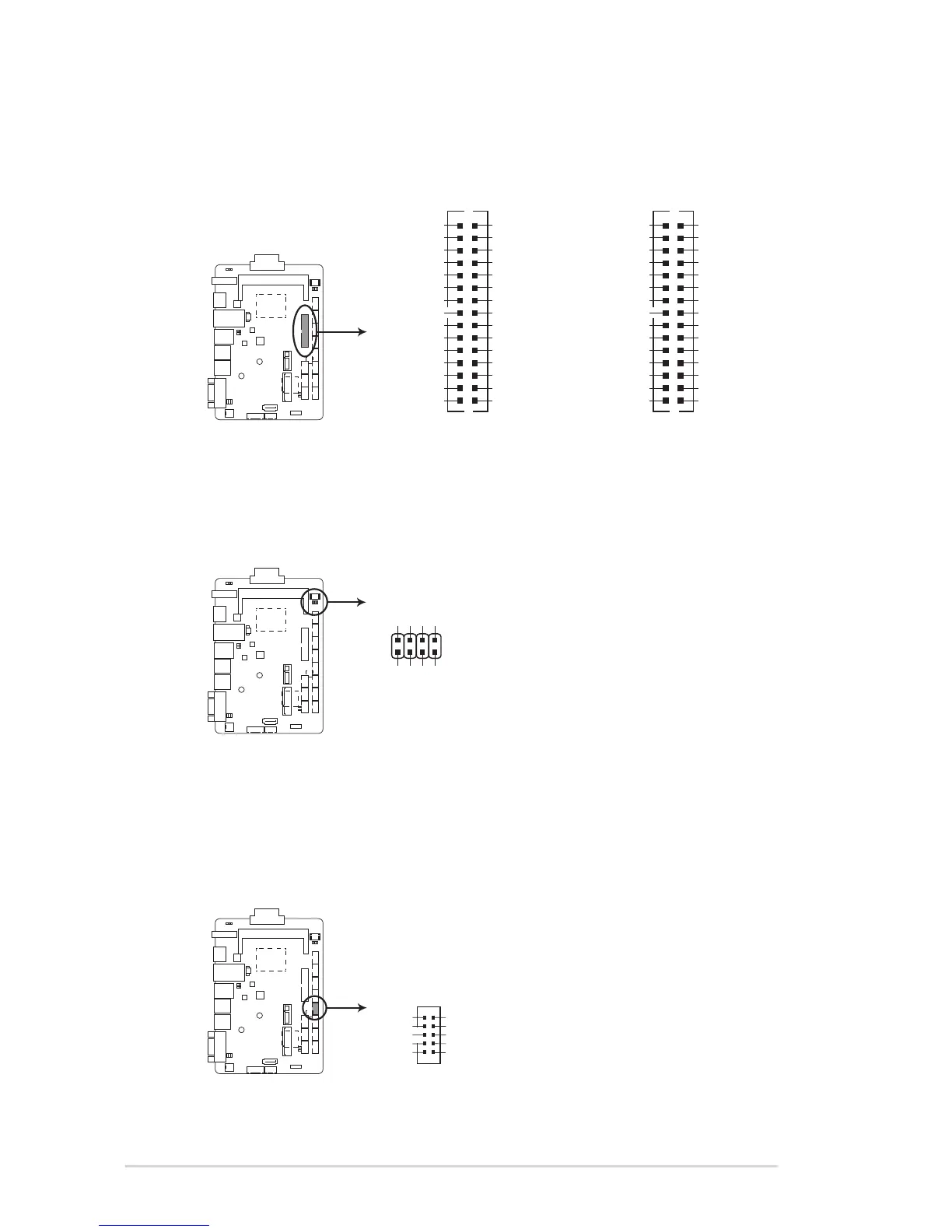

FAY-003 LVDS/EDP connector
LVDS
PIN 1
HD0_ENABKL
HD0_D0-
HD0_D0+
+V_PANEL
HD0_D1-
HD0_D1+
+V_PANEL
HD0_D2-
HD0_D2+
SPD
HD0_D3-
HD0_D3+
+V_PANEL
HD0_CLK-
HD0_CLK+
VCON
HD1_D0-
HD1_D0+
GND
HD1_D1-
HD1_D1+
GND
HD1_D2-
HD1_D2+
SPC
HD1_D3-
HD1_D3+
GND
HD1_CLK-
HD1_CLK+
EDP
PIN 1
EDP_HPD
EDP_TXN0
EDP_TXP0
VCC
EDP_TXN1
EDP_TXP1
VCC
GND
GND
NC
GND
GND
VCC
EDP_AUXN
EDP_AUXP
NC
BLVCC
BLVCC
GND
BLVCC
BLVCC
GND
GND
GND
NC
GND
GND
GND
BKLTEN
BKLTCTL
FAY-003
FAY-003 BIOS programming connector for Aaeon
PIN 1
SPI1
GND SPI_CLK SPI_SI NC
+1.8V_SPI
SPI_CS0#
SPI_SO
NC
FAY-003
FAY-003 Digitial I/O connector
DIO
DIO_GP41
DIO_GP37
DIO_GP35
DIO_GP33
GND
DIO_GP42
DIO_GP40
DIO_GP36
DIO_GP34
+5V
PIN1
