2-17
Chapter 2: Motherboard information
FAY-003

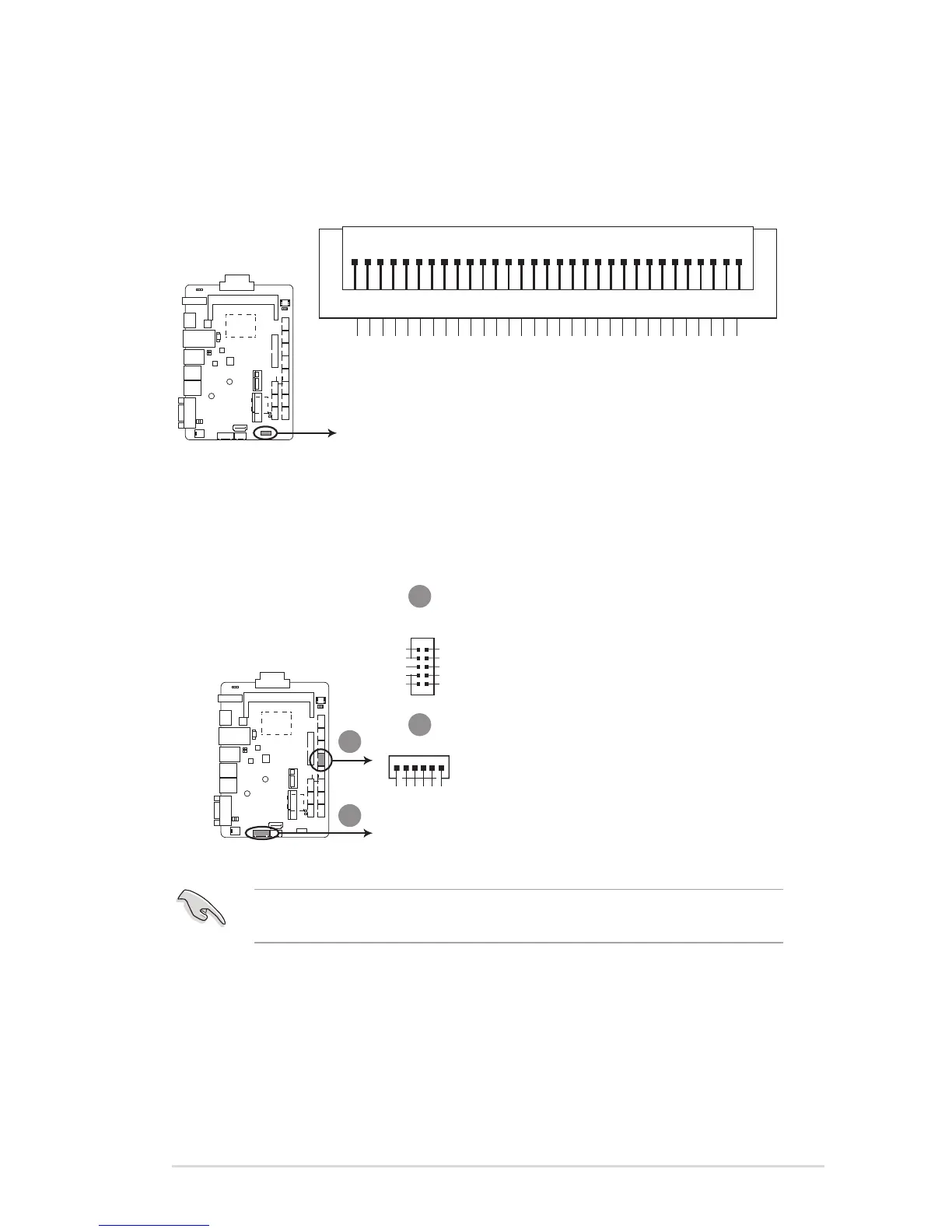

FAY-003 Camera Serial Interface connector
CSI1
CSI-DGND
MCSI2_R_PWDN#
NC
I2C2_SDA
I2C2_SCL
CSI-DGND
OSC_CLK_R_OUT0
CSI-DGND
CSI_DATA0N
CSI_DATA0P
CSI-DGND
CSI_DATA1N
CSI_DATA1P
CSI-DGND
CSI_CLK0N
CSI_CLK0P
CSI-DGND
CSI_DATA2N
CSI_DATA2P
CSI-DGND
CSI_DATA3N
CSI_DATA3P
CSI-DGND
AVDD_2.8V
CSI-AGND
DVDD_1.2V
DOVDD_1.8V
VCM-GND
VDD_2.8V VDD_2.8V
CSI-DGND
15. Camera Serial Interface connector (31-pin CSI1)
ThisconnectorisforaCameraSerialInterfacemodule.
16. Backlight inverter power connectors (10-pin INV1, 6-pin INV2)
Connectthebacklightinverterpowercablestotheseconnectors.
FAY-003
FAY-003 Inverter connectors
INV1
INV2
VCON
INV_ENABKL
NC
NC
NC
+BLVCC
+BLVCC
+BLVCC
GND
GND
PIN1
GND GND
VCON
INV_ENABKL
+12V +12V
PIN1
A
A
B
B
IMPORTANT:Thebacklightinverterpowerconnectorsupports1Acurrentto
themaximum.
