37X INSTALLATION & OPERATION MANUAL
372/373 MODEL
23

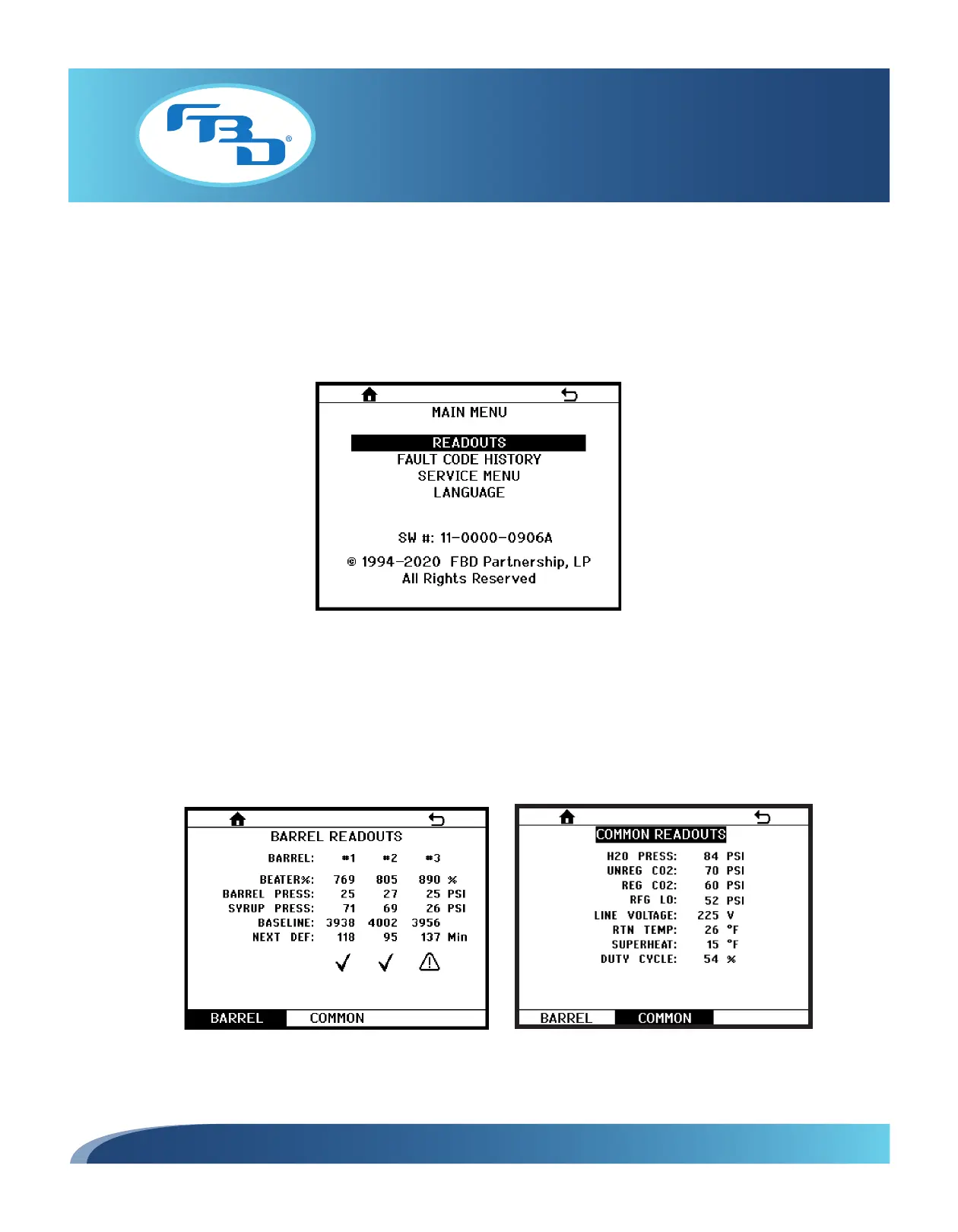

10.5 Main Menu
The main menu (Figure 10.4) allows the user to:
• View the readouts (pressures, temperatures, etc).
• Access the fault code history.
• Access the SERVICE MENU.
• Set a language.
10.6 Readouts Menu
NF*
The READOUTS menu shows the current status of all temperature and pressure sensor readings, line voltage
and other pertinent information about the operation of the dispenser. Some readouts are common to the
dispenser and others are side or barrel specific. Press the BARREL or COMMON soft key button to switch
between the two readouts (Figures 10.5 and 10.6).
Figure 10.4
Figure 10.5 Figure 10.6
* Refer to Appendices for additional information on Nitrofub configuration.
