37X INSTALLATION & OPERATION MANUAL
372/373 MODELS
49
11. DIAGRAMS AND SCHEMATICS
11.1 Mounting Templates
To permanently secure the dispenser to a countertop, use the provided mounting diagrams (Figures 11.1 and 11.2) to
drill mounting holes into the countertop. Next, place the dispenser in position and install bolts from the underside of the
countertop into the threaded bosses in the frame. Seal the dispenser to the countertop with a bead of clear silicone caulk
around the base of the frame to prevent spills from collecting under the dispenser.
16.13 in.
[409.58 mm]
25.87 in.
[657.1 mm]
13.63 in.
[346.08 mm]
15.62 in.
[396.80 mm]
(4) TAPPED
MOUNTING HOLES
5.80 in.
[147.3 mm]
6.04 in.
[153.4 mm]
DRIP TRAY
FRONT
4.36 in.
[110.7 mm]
DRAIN

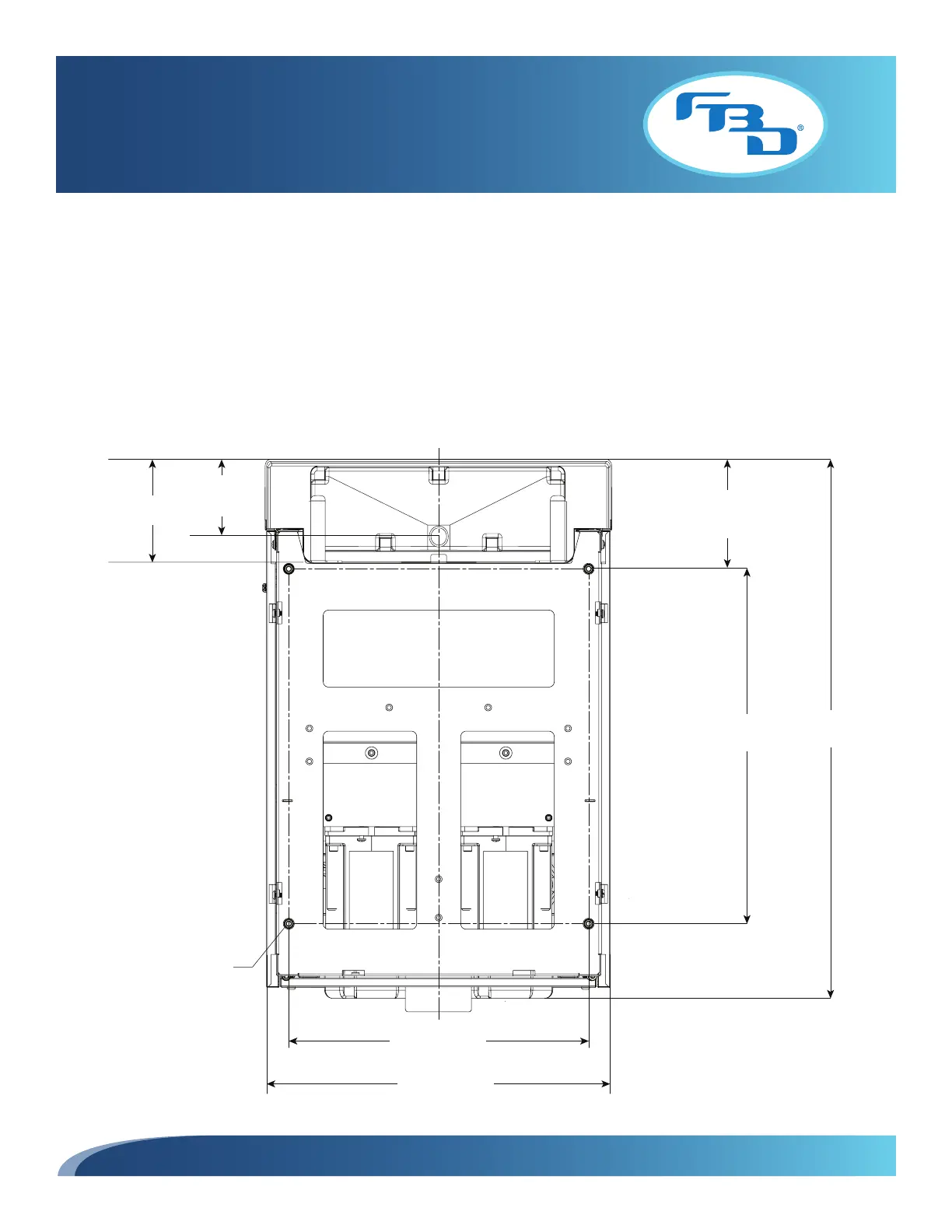

Figure 11.1 Mounting Diagram for 372 Dispenser
