MOUNTING TEMPLATES
To permanently secure the dispenser to a counter top, use the diagrams below to drill 7/16” clearance holes
in the cabinet. Next, place the dispenser in position and install 3/8”-16 UNC bolts from the underside of the
counter into the threaded bosses in the frame. Seal the dispenser to the countertop with a bead of clear
silicone caulk around the base of the frame to prevent spills from collecting under the dispenser.

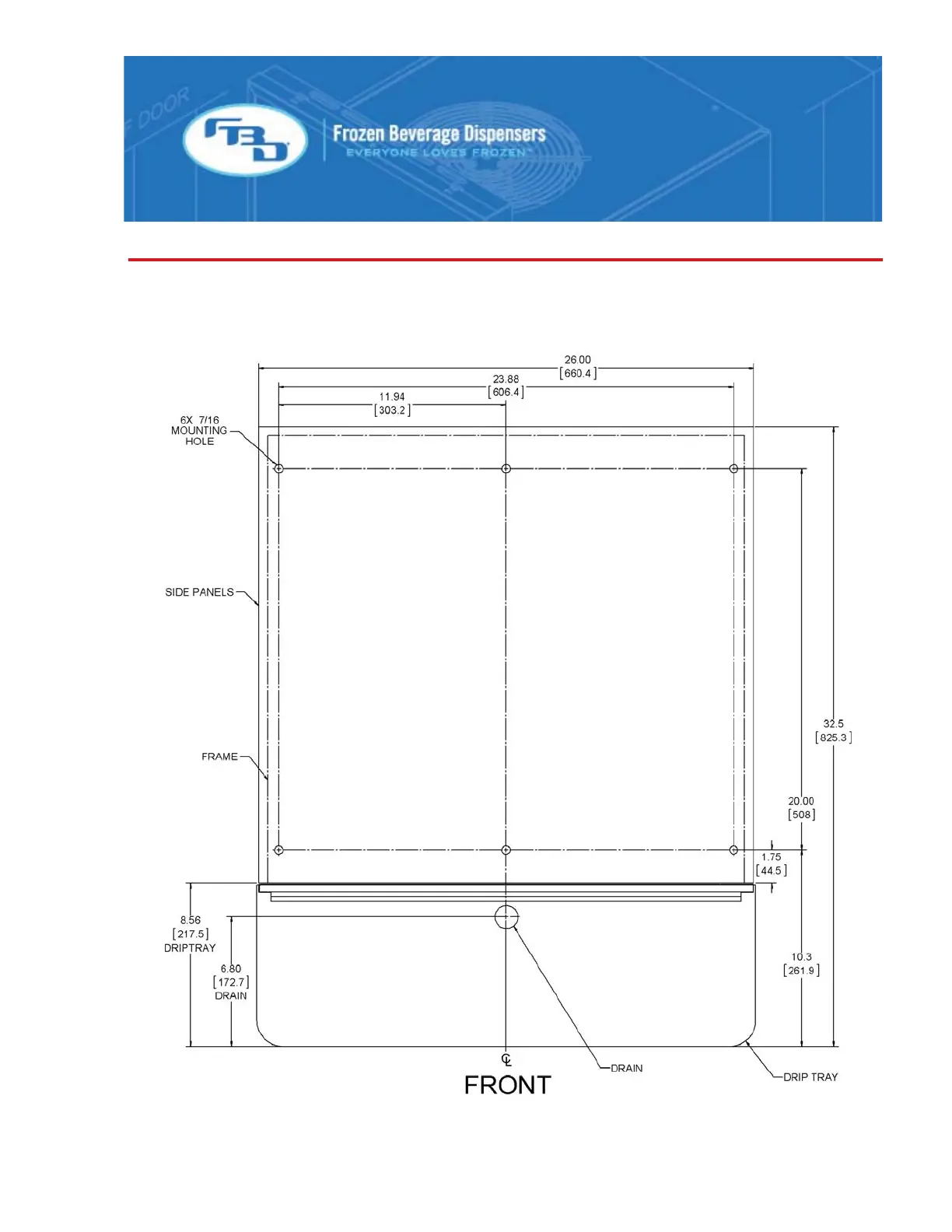

774 Mounting Dimensions
