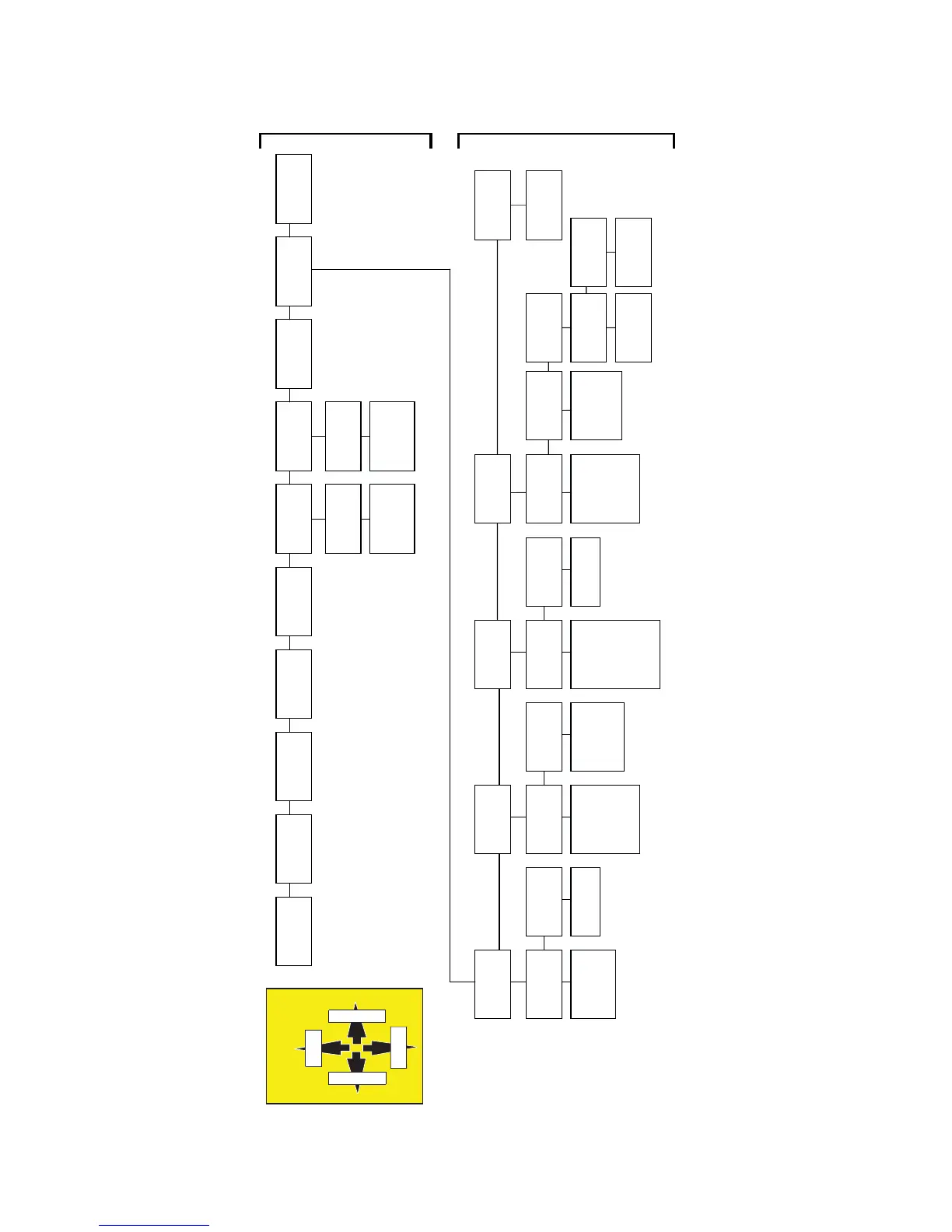

FBD56X Series, Menu Structure
Figure 7.3
56X SERIES MENU STRUCTURE
Copyright Version Time
Date Daylight
Savings
Defrost Times
(1)
Wake/Sleep
Times (3)
Fault Code
History (5)
Service Menu
(6)
Side
(2)
Up to 12 defrost
times per day
Day of Week
(4A-4G)
Side
(8)
Machine Settings
(7)
Wake/Sleep
Liq Lev (0-6)
Thw/Frz (0-20)
FUB Mode
Common
(9)
Ser #
Volt Oset
Side
(11)
Readouts
(10)
Beater %
Barrel Press
Syrup Press
Return Temp
Inlet Temp
Common
(12)
H20 Press
CO2 Presssure
Regulated CO2
Line Volt
Side
(14-17)
Manual On/O
(13)
CO2 Sol
Solution Sol
Beater Motor
Defrost Sol
Refrig Sol
Product Out
Anun items
Common
(18)
Compressor
Fan
Side
(23)
Machine totals
(22)
Defrost Cyc
Sold Out Hrs
Beater Hrs
Run On Hrs
Error Hrs
S
y
ru
p
Mins
Common
(24)
Compr Hrs
Compr Cyc
Power on Hrs
Sleep Hrs
Are You Sure?
Load All Defaults
(28)
Software Version
Set Totals
(25)
Side
(26)
Set Shared
(27)
Are You
Sure?
Are You
Sure?
LEVEL
1
LEVEL
2
Use these buttons on Keypad
to navigate the Menu:
CANCEL
FORWARD
BACK
SELECT
