FBD FBD564 - Connecting Water, CO2, and Syrup Supplies; Water Supply

D. The unit must be installed on a “single branch” circuit (on a circuit by itself), installed as follows:
1. The FBD564 Unit must be protected by 30 Amp service and a 30 Amp fuse (or circuit breaker).
It is recommended that a 3 conductor, 30 Amp receptacle (NEMA #L630-R) be used. Using a
voltmeter, check voltage across both “hot legs” (240VAC) and between ground and each “hot
leg” (120VAC) to ensure proper wiring and voltage (see Figure 4.1).
2. The FBD562 and FBD563 Units must be protected by 20 Amp service and a 20 Amp fuse (or
circuit breaker). It is recommended that a 3 conductor, 20 Amp receptacle (NEMA #L620-R) be
used. Using a voltmeter, check voltage across both “hot legs” (240VAC) and between ground
and each “hot leg” (120VAC) to ensure proper wiring and voltage (see Figure 4.1).
E. Remove the plug from the power cord and feed the cord through the strain relief located at the back
of the unit. Tighten the strain relief securely. Reinstall the plug on the power cord and check for
continuity on the plug across both “hot legs” and no continuity between each “hot leg” and ground
(see Figure 4.2).
F. Do not connect the unit to power at this time.
5. CONNECTING WATER, CO
2, AND SYRUP SUPPLIES (SEE FIGURES 5.1 THROUGH 5.5)
5.1 WATER SUPPLY
IMPORTANT
A WATER PUMP AND WATER REGULATOR ARE
INSTALLED IN THE BASE OF THE MACHINE. A
WATER FILTER SHOULD BE INSTALLED IN THE
WATER LINE BEFORE BEING CONNECTED TO THE
MACHINE. FLUSH THE FILTER WITH SEVERAL
GALLONS (12-15 LITERS) OF WATER PRIOR TO
USE TO INSURE BLACK CARBON “FINES” ARE
NOT FED INTO THE FREEZING CHAMBER.
CAUTION:
THE BACKFLOW PREVENTION DEVICE (FBD PN
12-2272-0001) MUST HAVE A DRAIN LINE
CONNECTED TO THE VENT (SEE FIGURE 5.1).
THIS IS REQUIRED TO DRAIN AWAY WATER IN
THE EVENT OF A BACKFLOW SITUATION OR A
FAILURE OF THE BACKFLOW DEVICE. FAILURE
TO DO SO MAY RESULT IN FLOODING OF THE
ESTABLISHMENT.
NOTE:
Water pipe connections and fixtures directly
connected to a potable water supply shall be sized,
installed, and maintained in accordance with federal,
state and local codes.

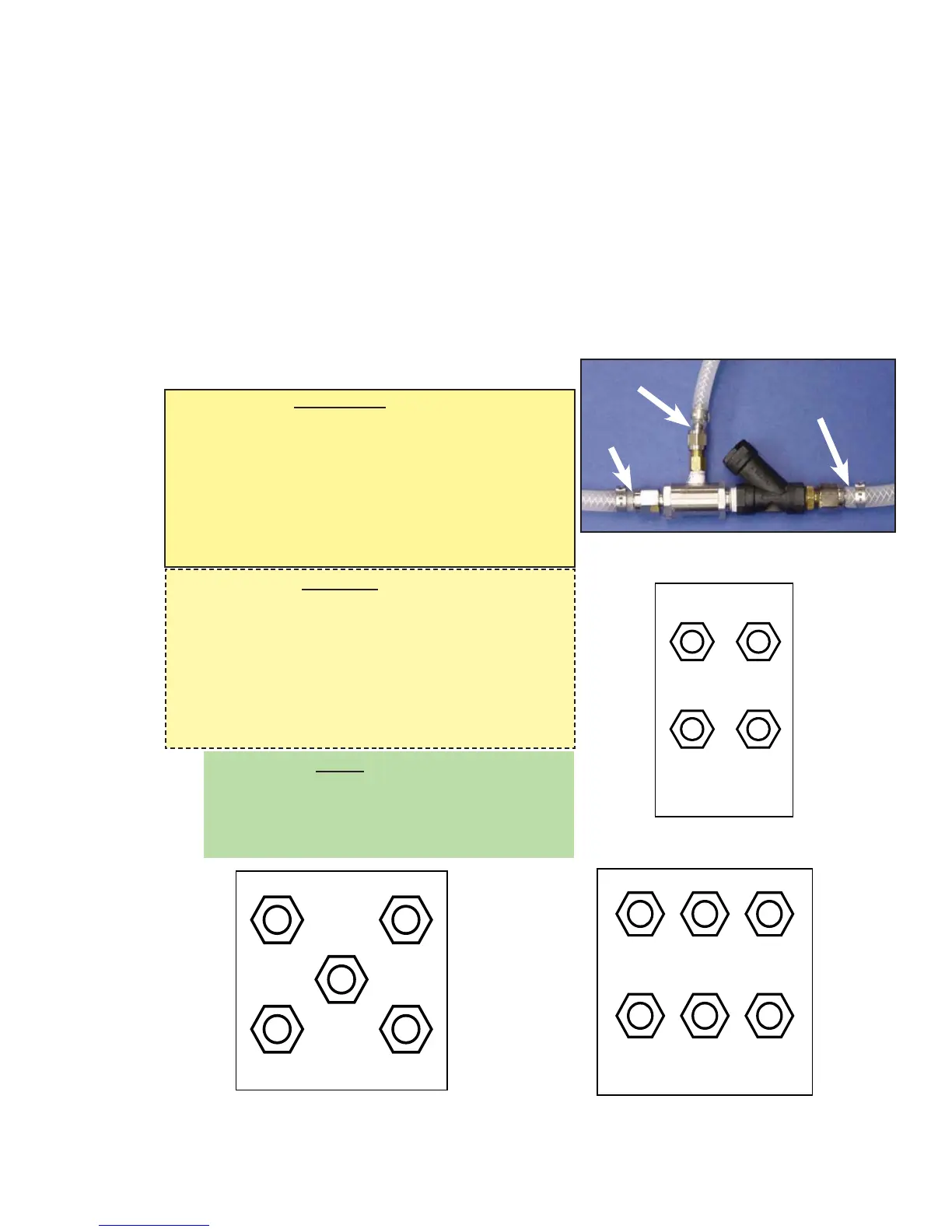

Bulkhead Fittings, FBD562
Figure 5.2
DRAIN
WATER
SUPPLY
TO UNIT
Backflow Prevention - Water Connections
Figure 5.1
Bulkhead Fittings, FBD563
Figure 5.3
Bulkhead Fittings, FBD564
Figure 5.4
9
WATER
SYRUP
RIGHT
SYRUP
LEFT
CO2
24-0100-0011_B
SYRUP
RIGHT
SYRUP
LEFT
SYRUP
CENTER
WATERCO2
24-2012-0001_E
FLAVOR
#3
FLAVOR
#2
FLAVOR
#1
WATERCO2
FLAVOR
#4
24-2000-0001_C
AS VIEWED FROM FRONT
