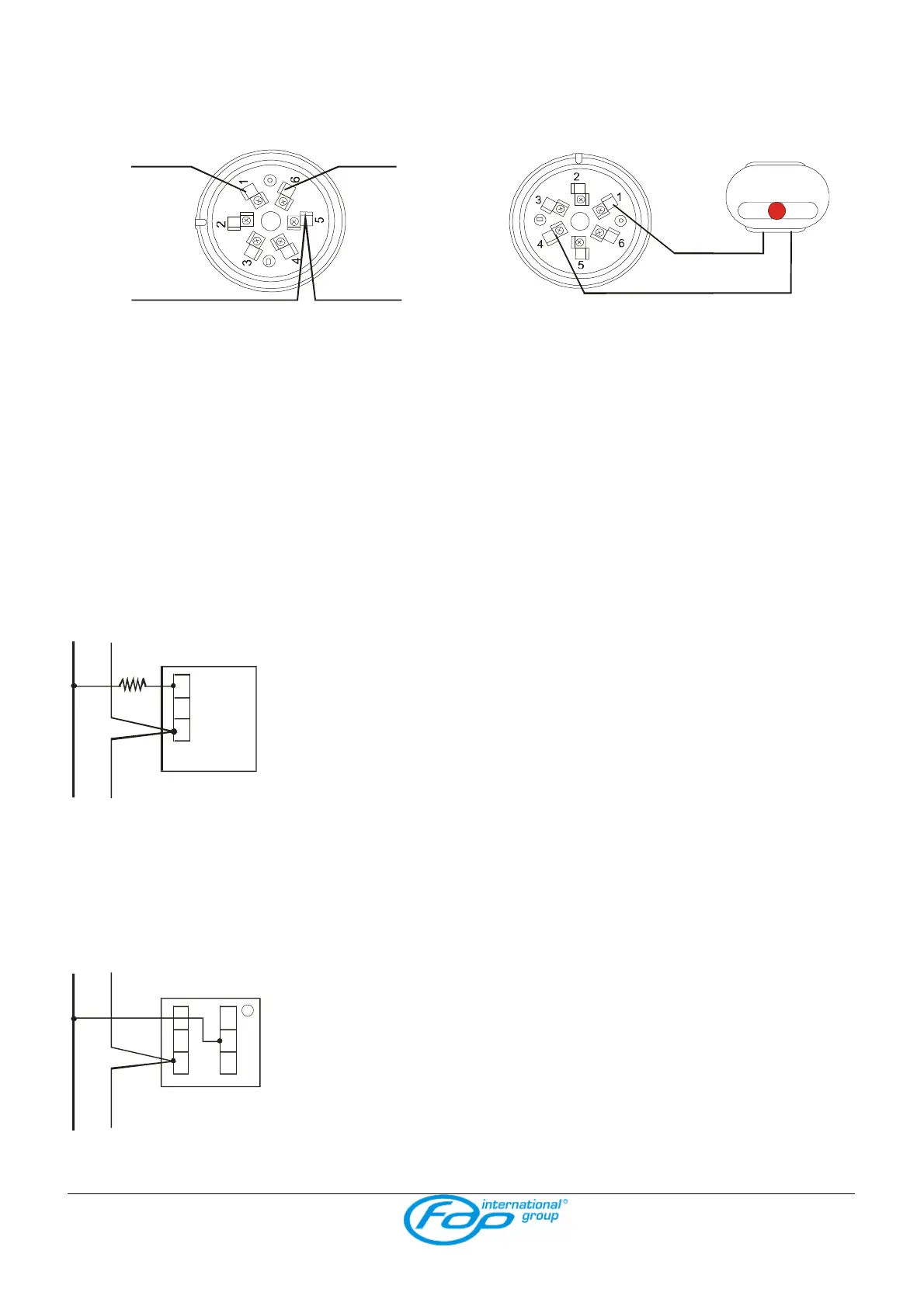

11.1.4 Electrical schemes
CONNECTION TO LOOP
OUTSIDE DOOR REPEATER
+ -
IN
OUT
+
-
+
-
11.2 CONVENTIONAL BUTTON
There are three button types:
1) Glass break.
2) Glass break with led.
3) Rearm able with key.
11.2.1 Glass break / Push button
This button has C-NO clips at which to install the alarm resistor (see the value at chapter
PART 9).
NO
NC
C
+ -
If the button has inside a resistor, the user must control if this resistor has a compatible value
with that one requested.
11.2.2 Glass break button with led
This button has a lad that it indicates if the button is been pressed. The user must control if the
alarm internal resistor has a compatible value with that one requested.
NC
C
NO
+
C
+ -
