3.5 Fuse F1
The reader have been protected with a SMD fuse 2,5A (time-lag).
Attention!:
 The 24V voltage for supplying the internal and external DC voltage on X2 for the dig-
ital inputs and outputs is not protected by the fuse F1.

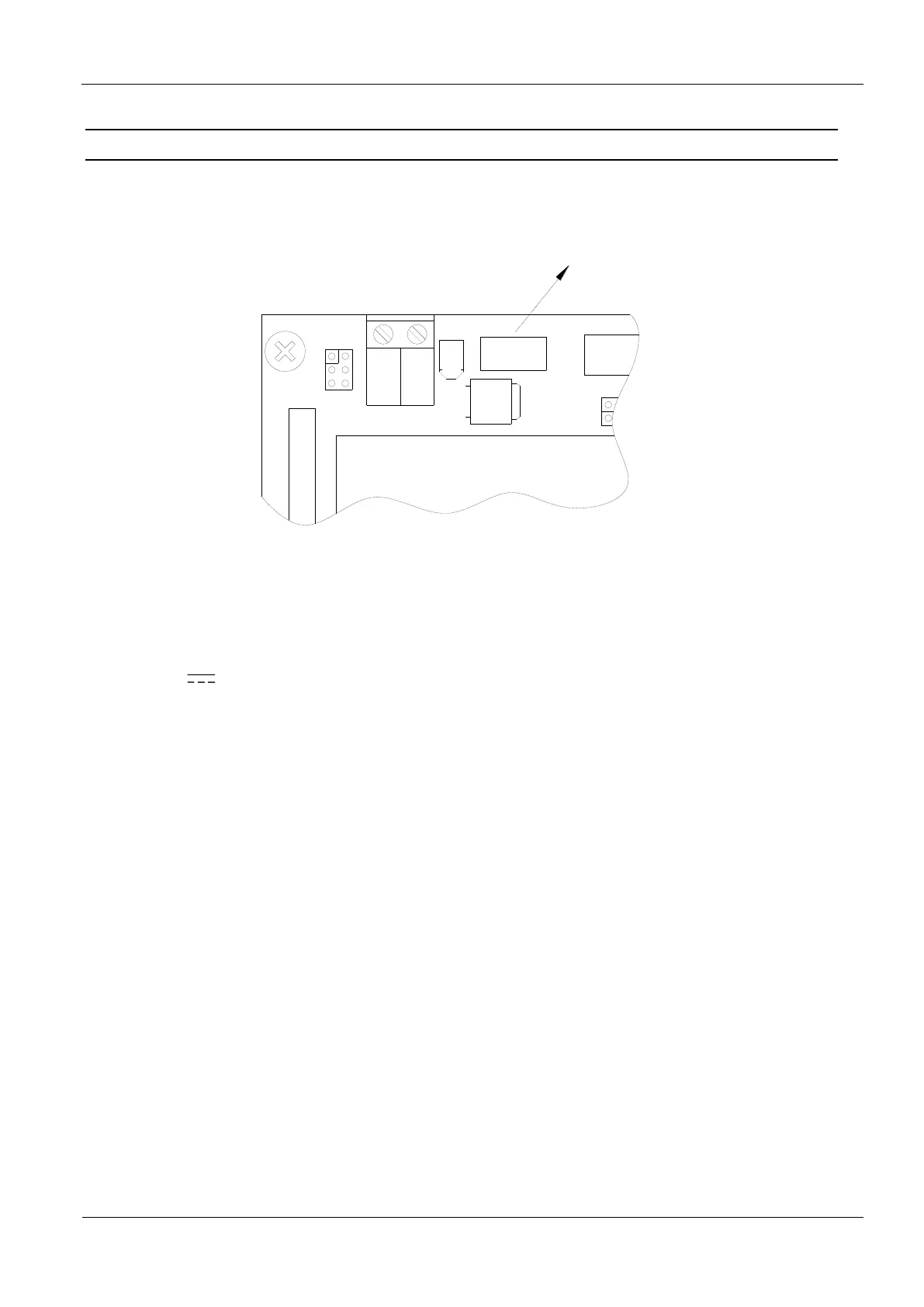

Figure 5: Position of the fuse F1
X8
X6
F1
2,5 A time-lag
