3.11 Interfaces

3.11.1 RS232-Interface X3

The RS232 interface is connected on X3.

The transmission parameters can be configured by means of software protocol.

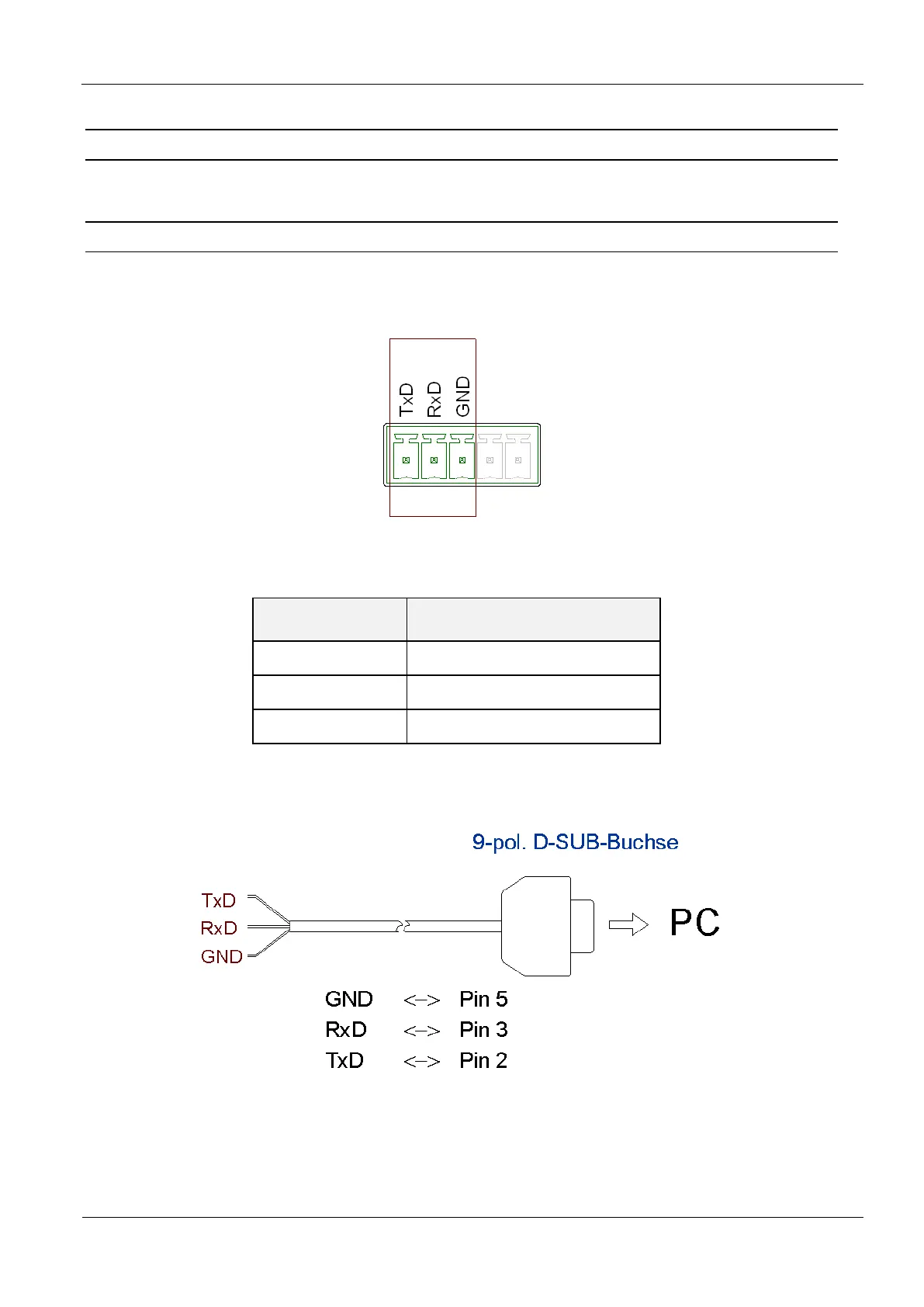

Figure 17: RS232 interface pin-outs on X3

Kurzzeichen

Description

TxD

RS232 – (Transmit)

RxD

RS232 – (Receive)

GND

RS232 – (Ground)

Table 10: Pin assignment of the RS232-Interface

Figure 18: Wiring example for connecting the RS232 interface
