3.9 Output 24V (X2 / 24V, GND)
The output 24V/GND can be used to power the optional external circuitry of the digital inputs , out-
puts or relays. The maximum current consumption must not exceed 500mA. A possible current
consumption via J2, J4, J6 or J7, J8, J9 must be factored in.
X2
IN1-
REL3-COM REL2-COM REL1-COM
GND
IN3- IN2-
GND
OUT2-E
IN1+
OUT1-C
GND
IN3+ IN2+
OUT2-C
REL3-NO REL2-NO REL1-NO
24V
OUT1-E

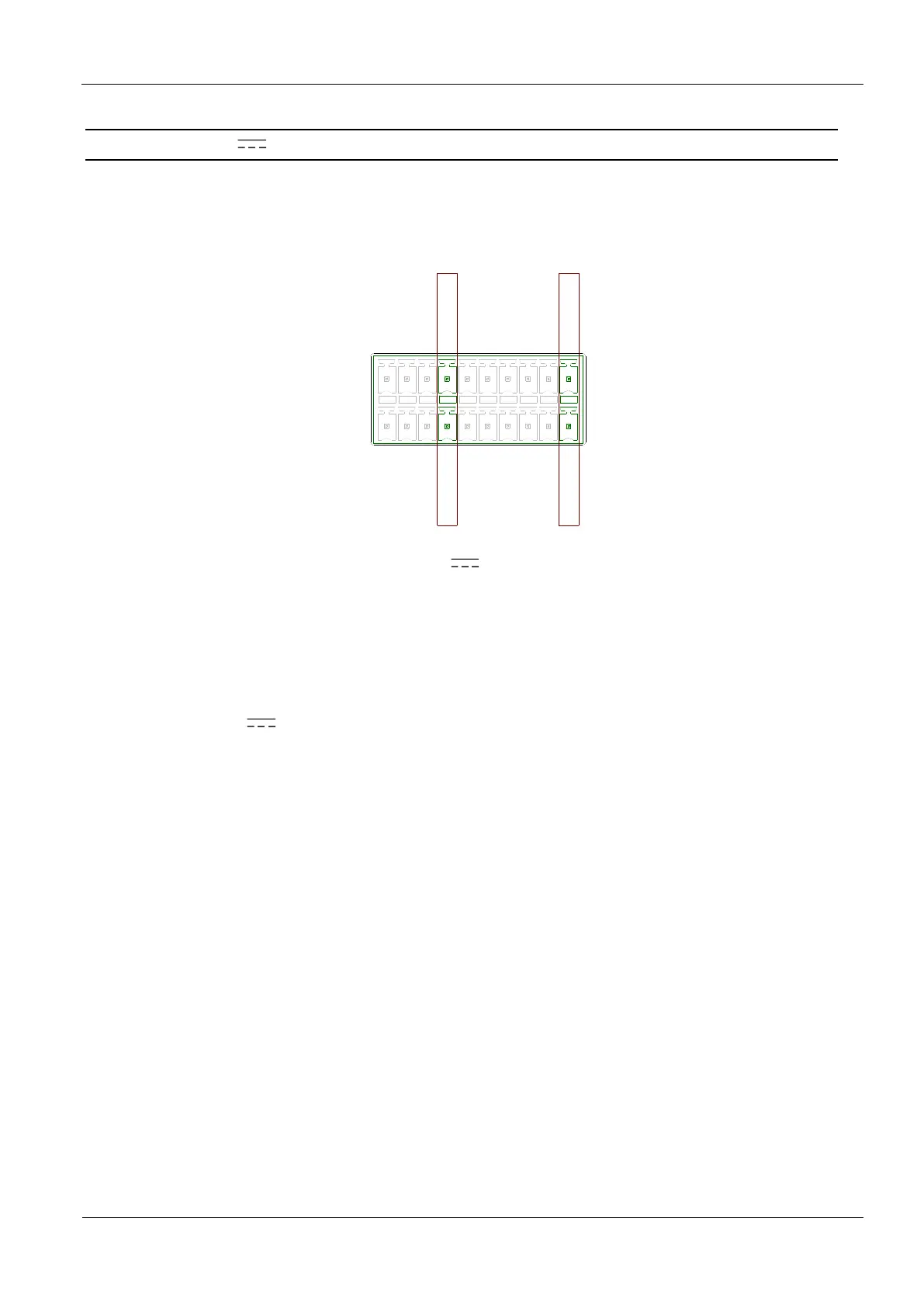

Figure 15: Optional 24V external voltage supply
Note:
 For the dimensioning of the power supply the power consumption for the external output
circuitry must be additional considered to the typical reader power consumption.
 The internal 24V voltage on X2 is not protected by the fuse F1.
