ID ISC.LRM2500-B

FEIG ELECTRONIC GmbH

Page 26 of 32

M01111-4e-ID-B.docx

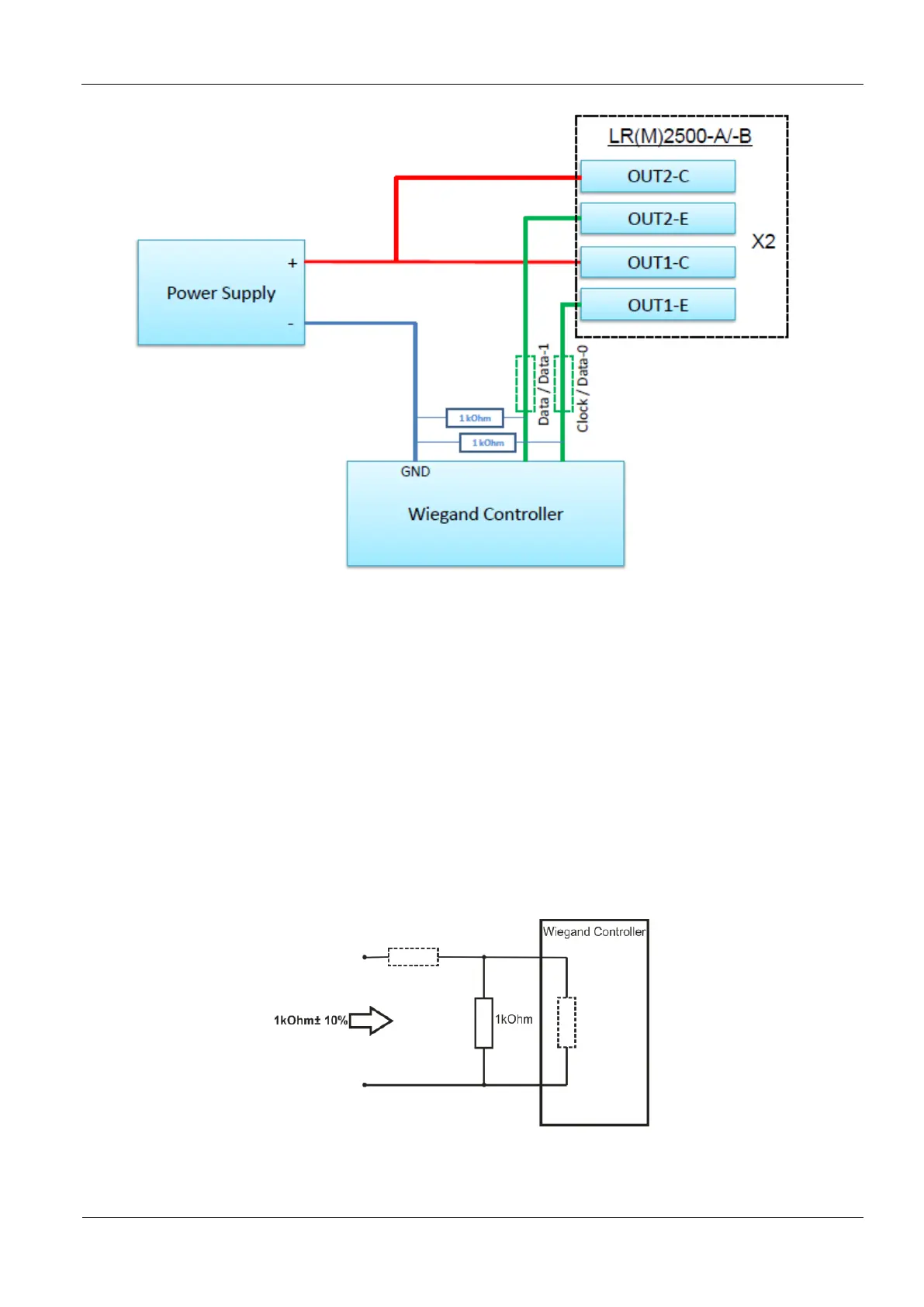

Figure 25: Wiring Example

NOTE:

Please consider possible limitations of the Wiegand Controller regarding the used supply

voltage.

In dependency on the inner circuit of the used Wiegand Controller it is necessary to use

external serial resistors to limit the current on the data and clock wires.

The necessity of the external pull down resistor is depending on the inner circuit of the

used Wiegand Controller

The total resistance incl. the input resistance of the Wiegand Controller should be

1kOhm ± 10% .
