①
② ③

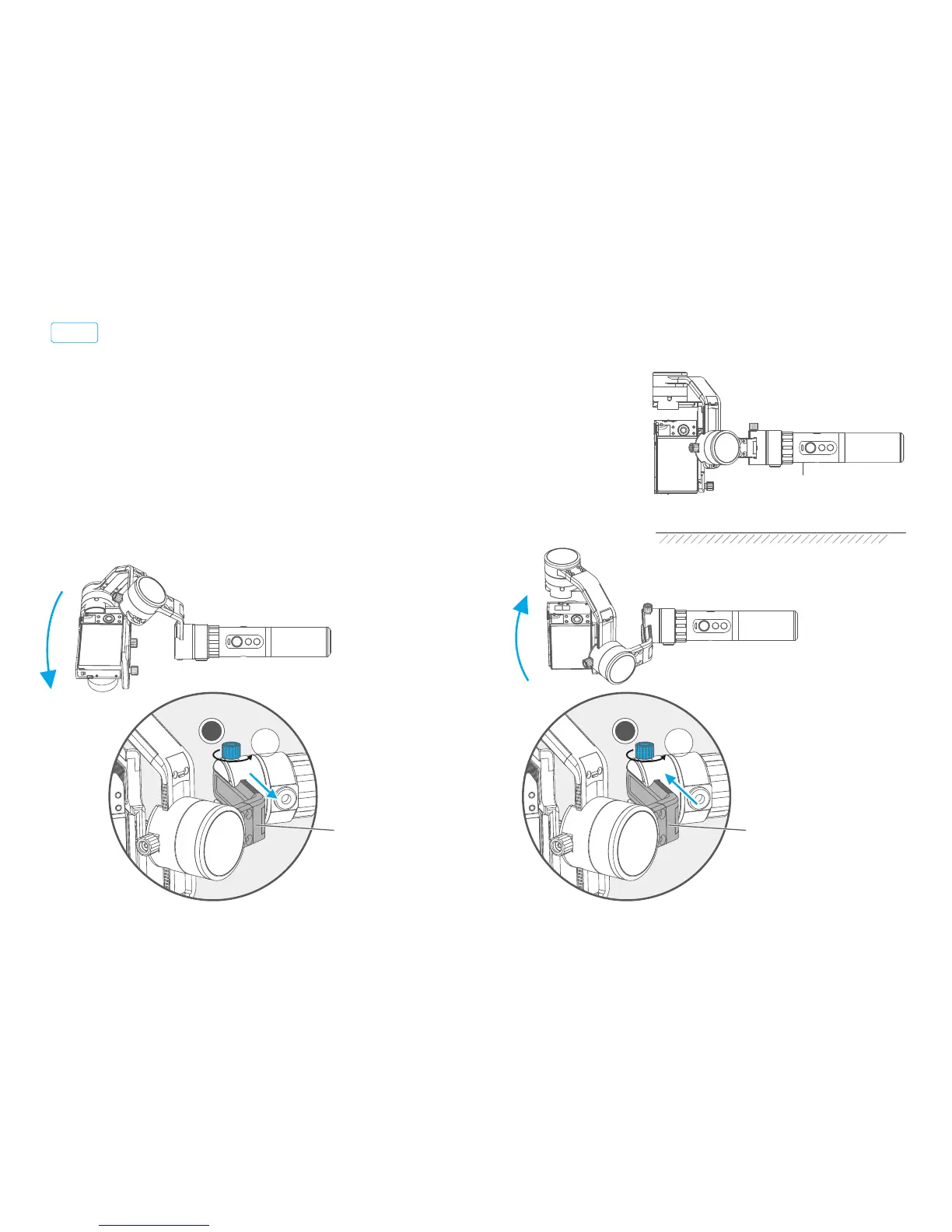

When the balance adjustment of tilting axis and rolling axis is
completed, the balance of the panning axis can be adjusted.
Keep the gimbal socket connector horizontal with the ground
with the hand-held control handle as shown in figure ①, let go
and observe the state of rotation.Loosen the lock screw on the
panning and slide the
vertical arm forward and backward to
adjust .(Refer to figure ② ③)
STEP 3
* After adjustment, be sure to tighten the lock screw.
Horizontal ground
Socket connector
Best balance
Vertical arm
Vertical arm
Slide the vertical arm forward to adjust
The lens is down
The lens is up
Balance adjustment of the panning axis
Slide the vertical arm backward to adjust
17
