T
L
T
L
① ② ③
STEP 2

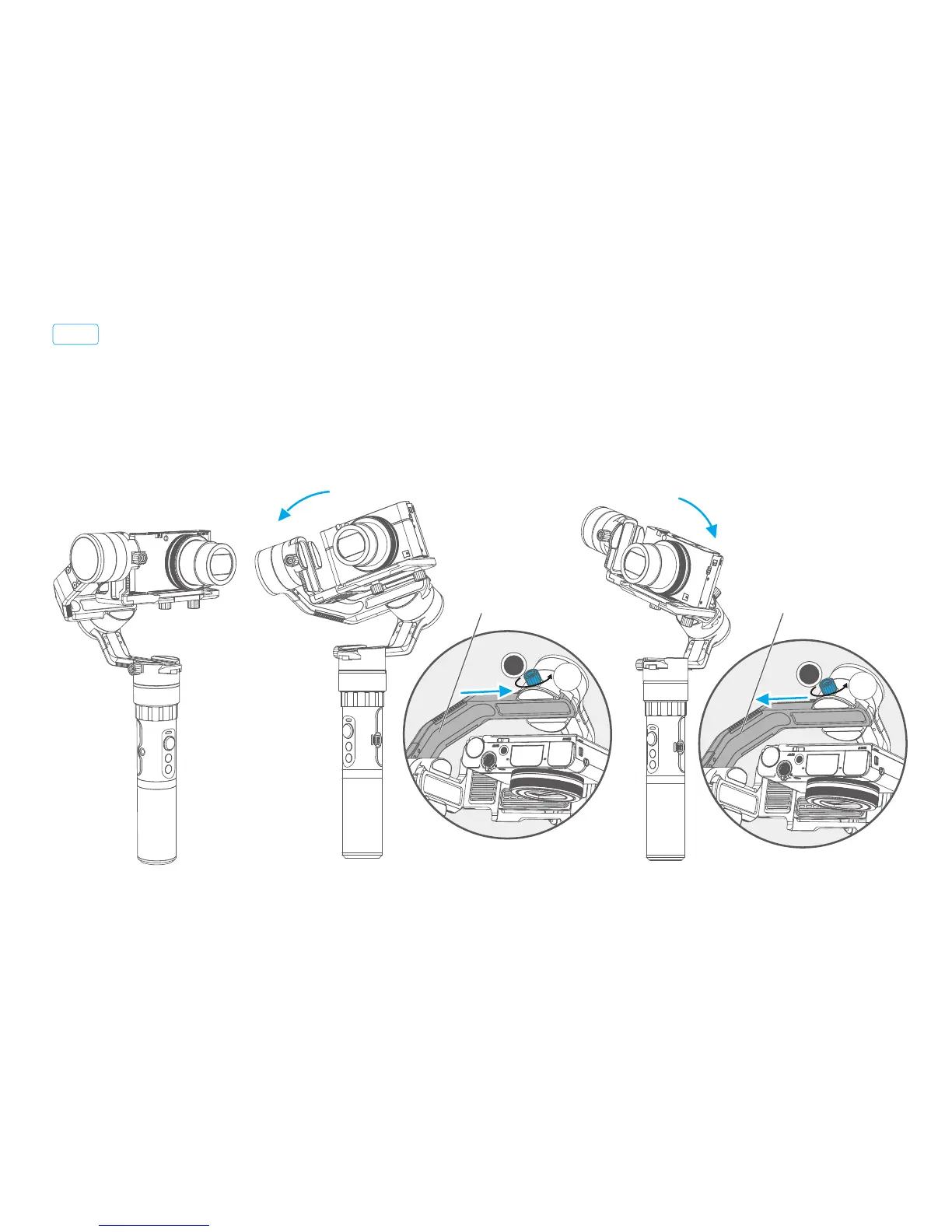

When the balance adjustment of tilting axis completed, the balance of the rolling axis can be adjusted:
Keep the gimbal socket connector vertical to the ground with the hand-held control handle as shown in
figure ①, let go and observe the balance. Loosen the lock screw and slide the cross arm left and right to
adjust the roll. (Refer to figure ② ③)
Balance adjustment of the rolling axis
* After adjustment, be sure to tighten the lock screw.
Camera leftward
Slide the cross arm left to adjust
Balanced
Cross arm
Cross arm
Slide the cross arm right to adjust
Camera rightward
16
